Introduction
9
1

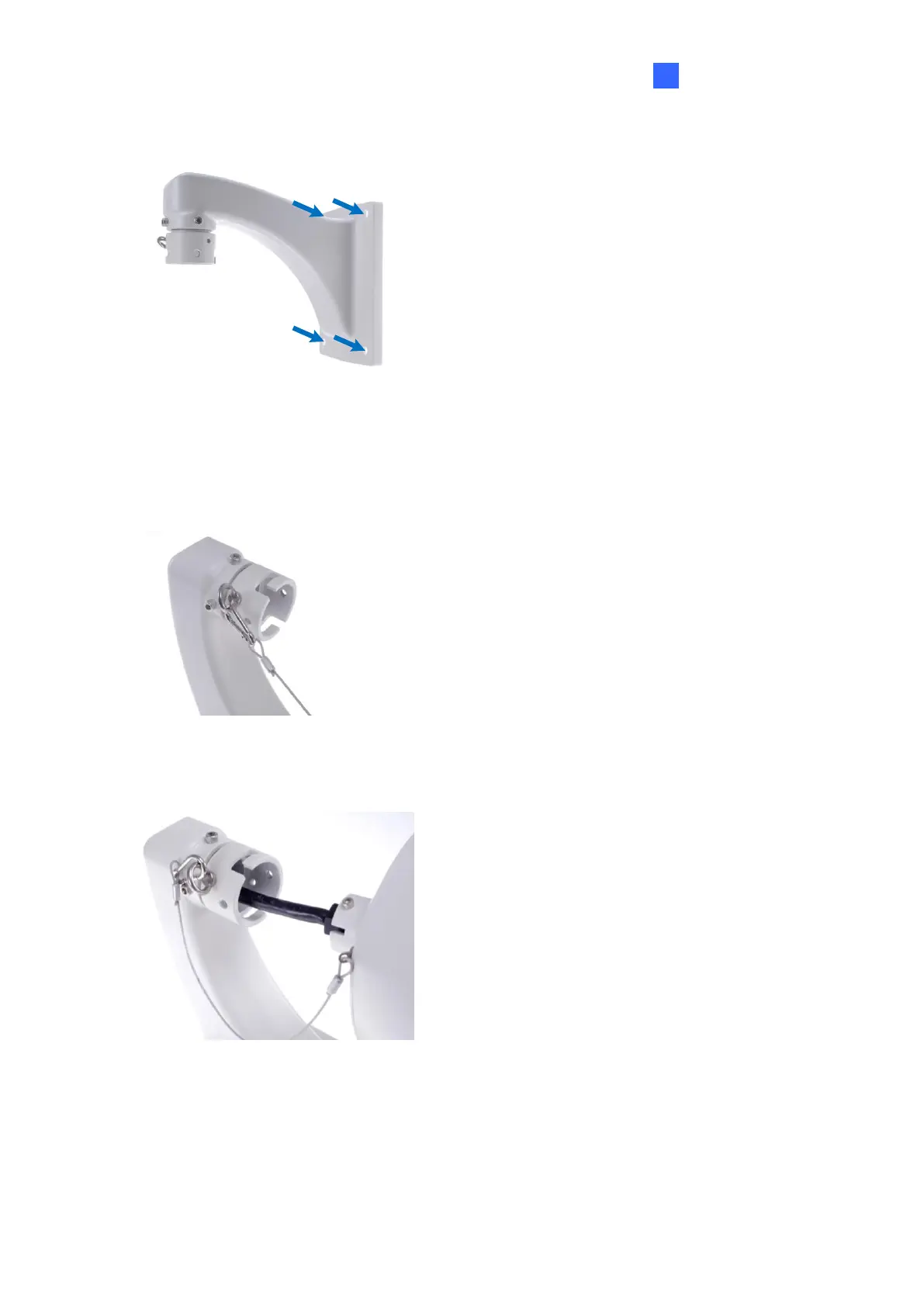

3. Place the pendant tube on the wall, and mark the position of the screw holes.
Figure 1-8
4. Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared
screws.
5. Attach the safety lock of the camera to the pendant tube.
Figure 1-9
6. Thread the data cable through the pendant tube.
Figure 1-10
