10

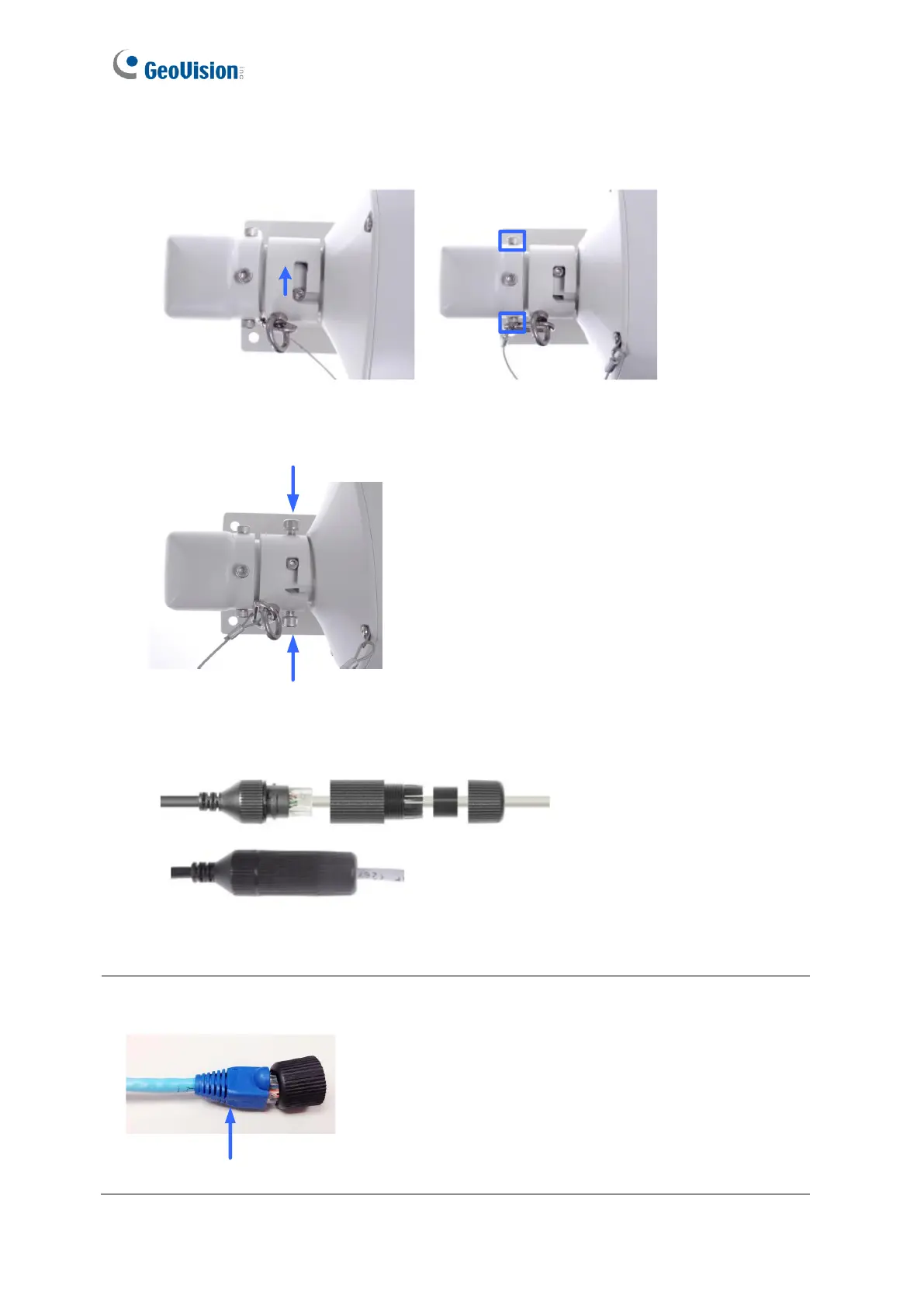

7. Attach the camera to the pendant tube, rotate the camera until it is locked into
position, and secure the indicated screws.
Figure 1-11
8. Insert the pendant mount screws and tighten with the supplied M4 hex key.
Figure 1-12
9. Thread the Ethernet cable through the waterproof rubber set as shown below.
Figure 1-13
Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof
rubber set.
Unfit size of RJ45 Connector

Table of Contents
