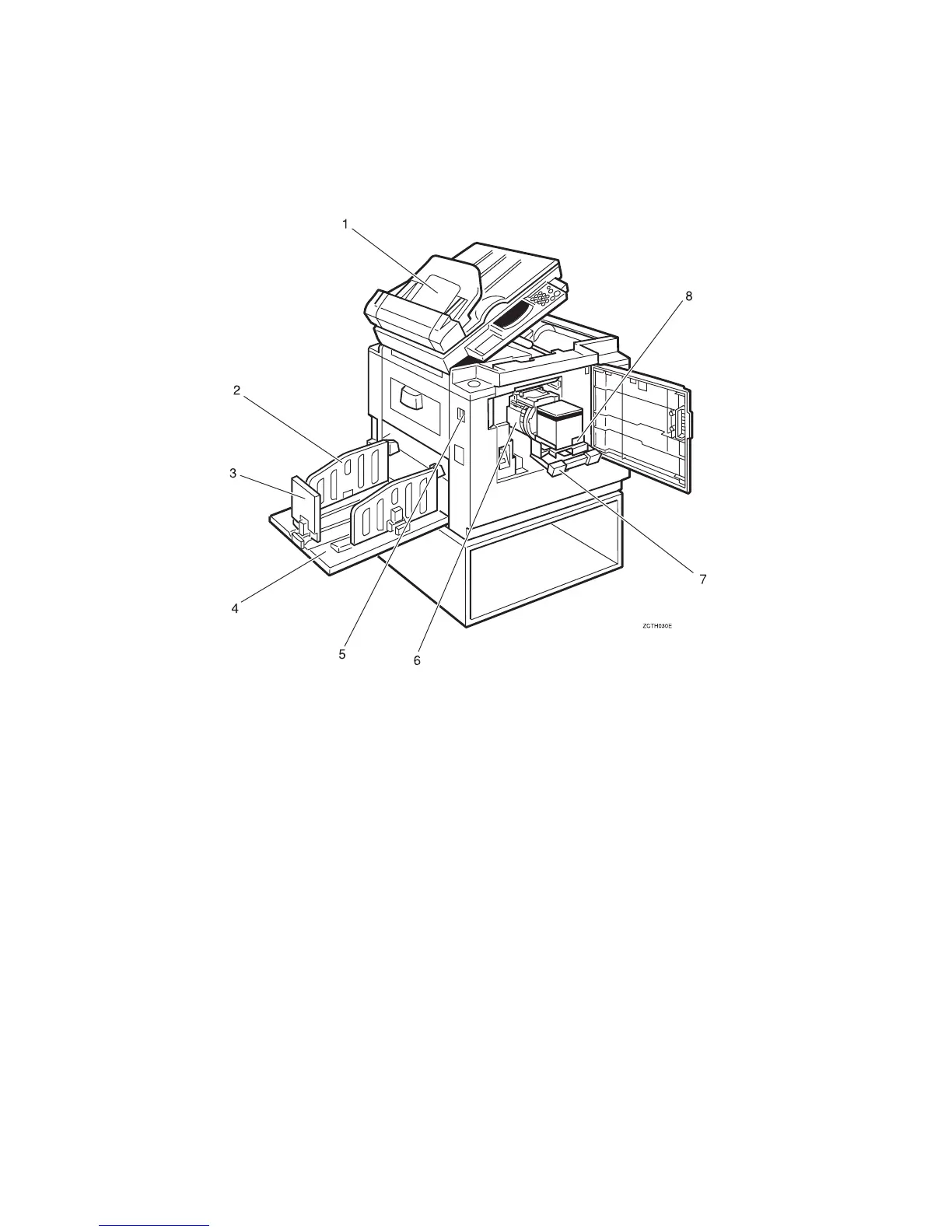

Machine Interior
1. Document feeder (Option)
Original inserted into the document feed-
er are individually and automatically fed
onto and removed from the exposure
glass. See ⇒ p.55 “Printing Using the Op-
tional Document Feeder”.
2. Paper delivery side plates
Use to align the prints on the paper deliv-
ery tray.
3. Paper delivery end plate
Use to align the leading edge of prints.
4. Paper delivery tray
Completed prints are delivered here.
5. Main switch
Use to turn the power on or off.
6. Drum unit
The master is wrapped around this unit.
7. Drum unit lock lever
Lift to unlock and pull out the drum unit.
8. Ink holder
Set the ink cartridge in this holder.
