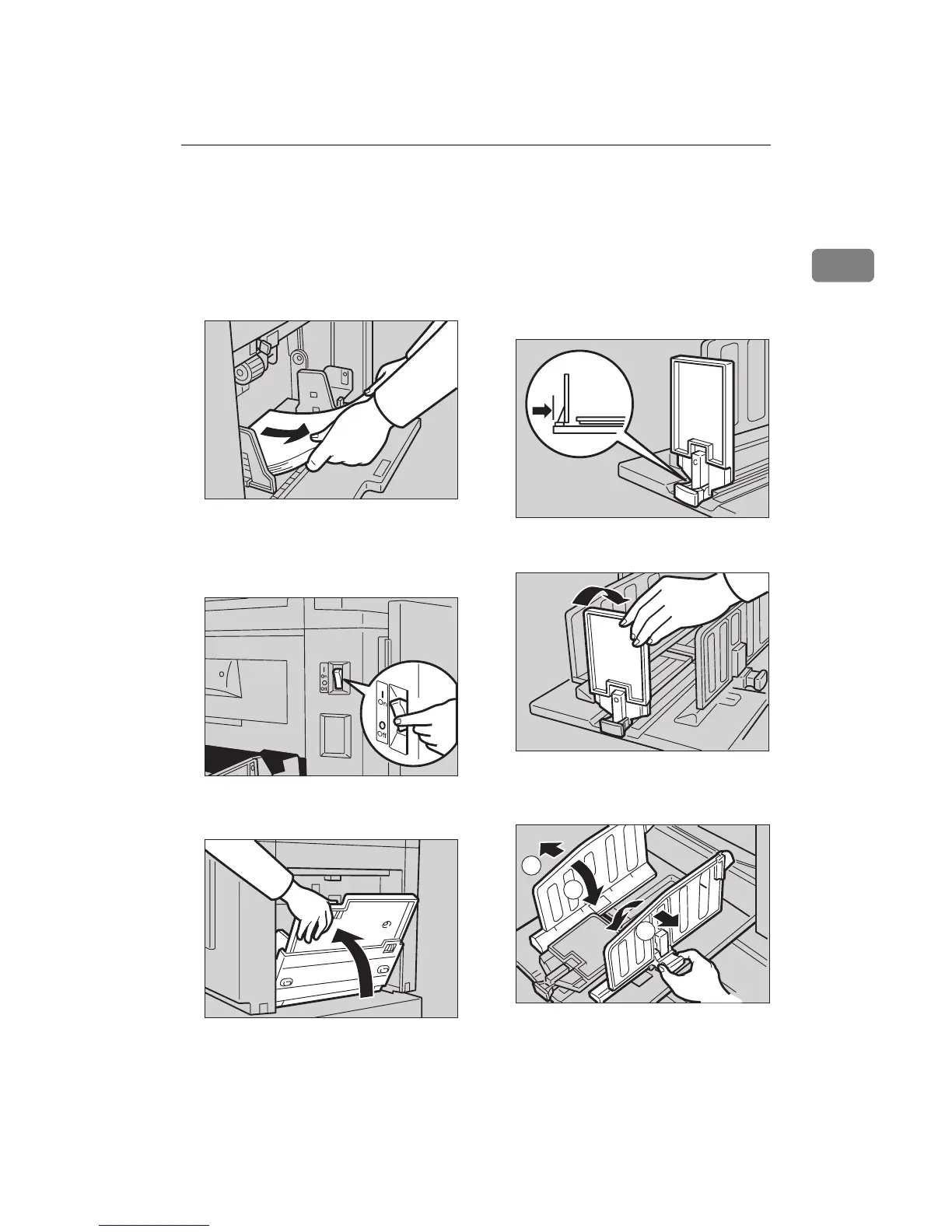

Restoring Paper Feed and Paper Delivery Trays
19
1
Restoring Paper Feed and Paper Delivery
Trays
A
AA
A
Remove the paper from the paper
feed tray.
The paper feed tray will move
down.
B
BB
B
Turn off the main switch.
C
CC
C
Close the paper feed tray.
D
DD
D
Move the end plate until the plate
handle is flush with the end of
the tray.
E
EE
E
Lower the end plate.
F
FF
F
Move the side plates to the sides,
then lower them.
G
GG
G
Close the tray.
