600 Series Steam Sterilizers
INS 61301607027 Rev A US 7–3
STEAM SUPPLY QUALITY
It shall be the customer’s responsibility to provide condensate-free steam
between 97% and 100% saturated vapor. Failure to comply with this
requirement may result in decreased sterilizer function, performance, and
reliability.
Two methods which may assist in meeting this requirement are:
Installing a thermodynamic steam trap and associated piping as shown
in Figure 7–1.
Installing an MP-106 Steam Conditioning Package (Figure 7–2 on page
7–4) which may be purchased from Getinge.

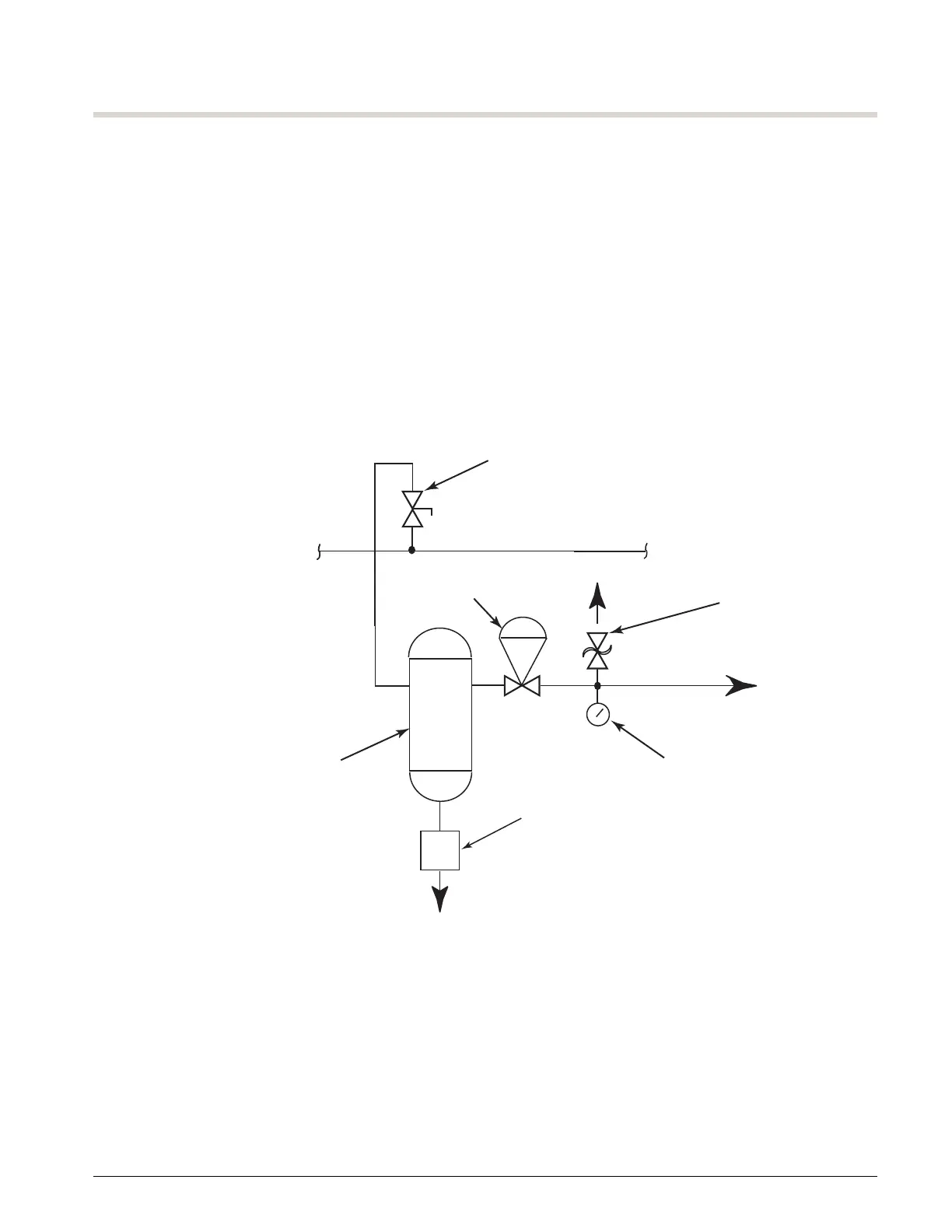

FIGURE 7–1. TYPICAL STEAM SUPPLY PIPING
WS-0227A
Pressure
Relief Valve
Manual
Shutoff Valve
To Vent
97 - 100%
Saturated Steam
to Sterilizer
Pressure Regulator
Valve
Building Steam Supply
Pressure
Gauge
Steam Trap
To Drain
Separator
