5–12 INS 61301607027 Rev A US
MOUNTING THE BOOSTER
PUMP AND INTERFACE BOX
To mount the booster pump:
1. Fasten the booster pump to its mounting surface as shown in
Figure 5–9.

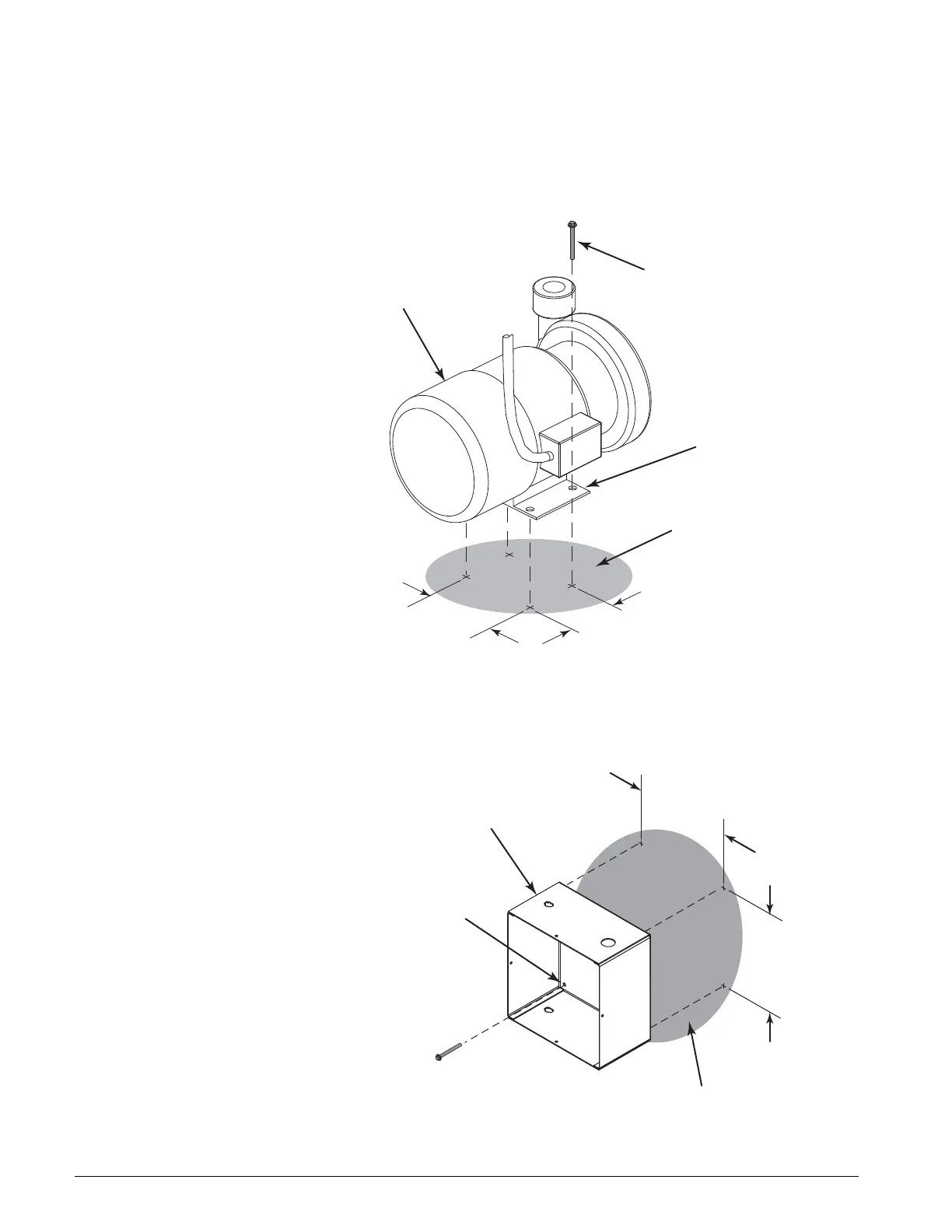

FIGURE 5–9. MOUNTING THE BOOSTER PUMP
2. Fasten the interface box to its mounting surface as shown in
Figure 5–10.
FIGURE 5–10. MOUNTING THE INTERFACE BOX
3.00 in
(76 mm)
4.88 in
(124 mm)
Lag Screws
or Alternate
(by customer)
Booster Pump
Mounting Plate
with 13/32” (10.3 mm)
diameter holes
Mounting Surface
(by customer)
350069-D
7.00
(178 mm)
7.00
(178 mm)
WS-0333
7/32” (5.56 mm)
diameter holes
Booster Pump
I/F Box
Fastener
(by customer)
Mounting Surface
(by customer)
