Getinge 600 Series User Manual

Optional Equipment
5–20 INS 61301607027 Rev A US
CONNECTING THE ELECTRICAL
POWER
To connect the UPS:
1. Prepare the UPS cables as described in the UPS Installation
Instructions (Pub. No. 61301605360).
NOTE
The UPS cables are marked with their destination (e.g., 120V Supply, 1A
Power Box). The cable that connects to the sterilizer is fitted with a liquid-
tight connector.
2. Connect the UPS to the sterilizer:
a. If the mains voltage is 115 Vac, connect the UPS directly to Power
Box 1A (see Figure 5–16).

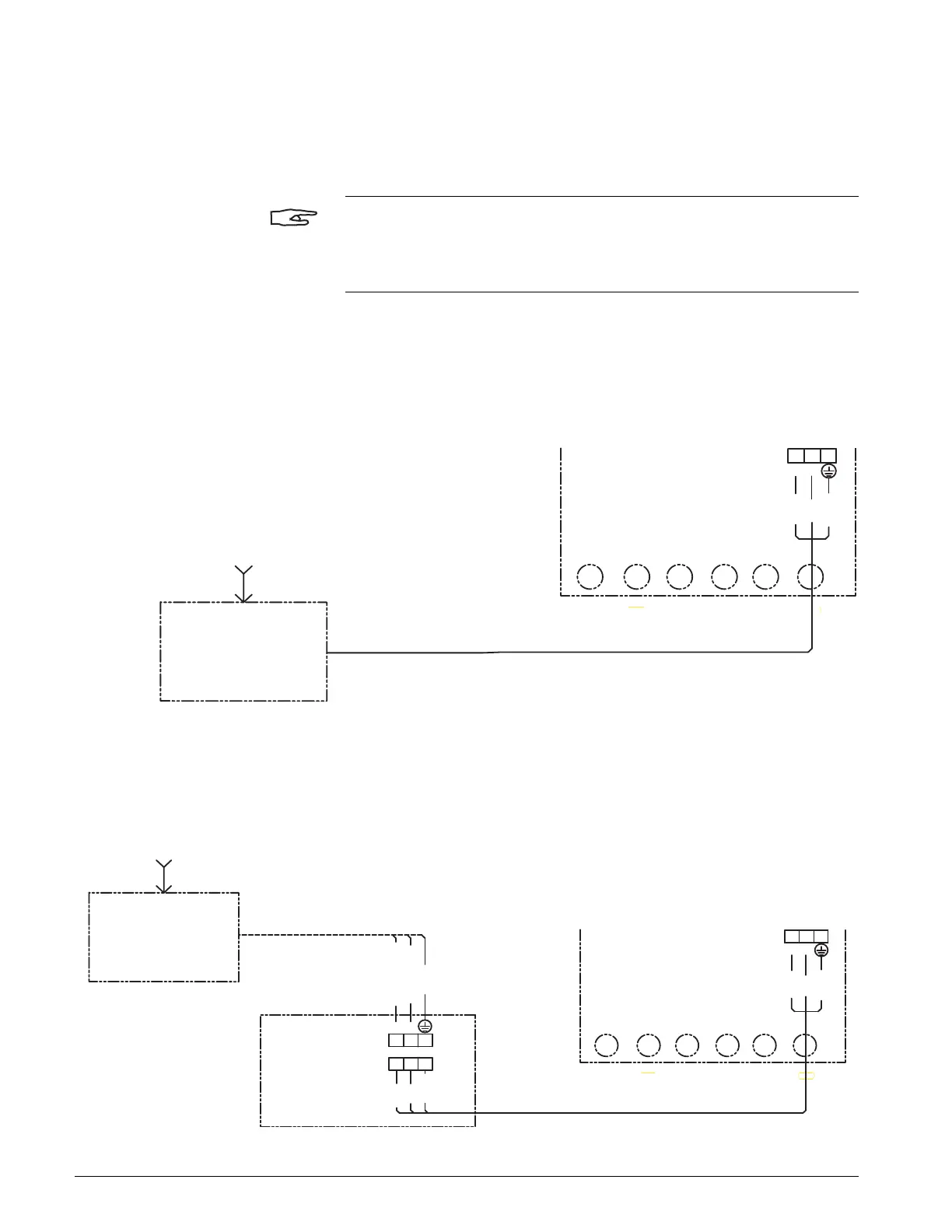

FIGURE 5–16. UPS CONNECTION (115 VAC)
b. If the mains voltage is 230 Vac, connect the UPS to Integral
Transformer Box 9A (see Figure 5–17).
FIGURE 5–17. UPS CONNECTION (230 VAC)
1A
POWER BOX
10A
UNINTERRUPTIBLE
POWER SUPPLY
(W)
(BK)
(G/Y)
1TB
L
1
N
3
2
(115 Vac Model)
115 Vac ±10%
Single-Phase Supply
A08205-A1
1A
POWER BOX
10A
UNINTERRUPTIBLE
POWER SUPPLY
(W)
(BK)
2
3
1
1TB
(G/Y)
1
2TB
2
3
(BK)
(G/Y)
(W)
(BK) or (BR)
(W) or (BL)
(G/Y)
NL
1TB
L
1
N
3
2
(230 Vac Model)
230 Vac ±10%
Single-Phase Supply
A08205-A2
230 Vac
115 Vac
9A
INTEGRAL
TRANSFORMER
BOX
