c. If the mains voltage is 380 Vac or above, connect the UPS between
Universal Transformer 8A and Power Box 1A (see Figure 5–18).

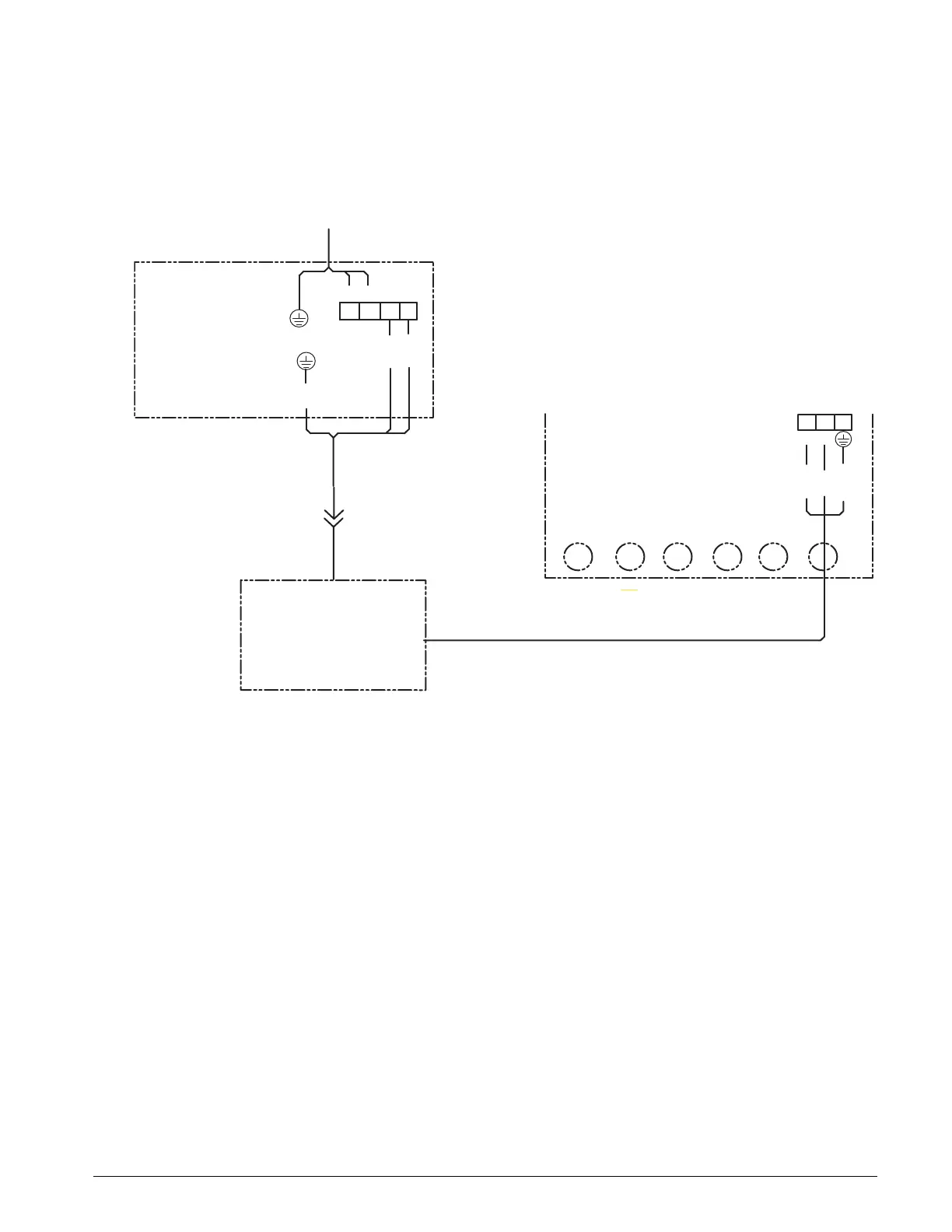

FIGURE 5–18. UPS CONNECTION (OTHER VOLTAGES)
3. Connect the UPS to the mains disconnect.
(W)
(G)
(BK)
1TB
L1 L2
3
1
2
4
380/400/415/440/460/480 Vac
Single-Phase Supply
A08205-D
8A
UNIVERSAL
TRANSFORMER
1A
POWER BOX
10A
UNINTERRUPTIBLE
POWER SUPPLY
(W)
(BK)
(G/Y)
1TB
L
1
N
3
2
(115 Vac Model)
115 Vac
