LEVELING THE STERILIZER
DOOR
Once the sterilizer is leveled, check the alignment of the door mechanism
to ensure that the door is level and the position of the mounting plate has
not changed.
To level the sterilizer door:
1. Remove the rubber bumpers from the door motor mounting plate. This
will allow a 9 inch torpedo level to be placed on the mounting plate.
2. Adjust the mounting plate leveling bolts until the bottom of the plate is
0.25 in. (6.3 mm) above the finished floor.

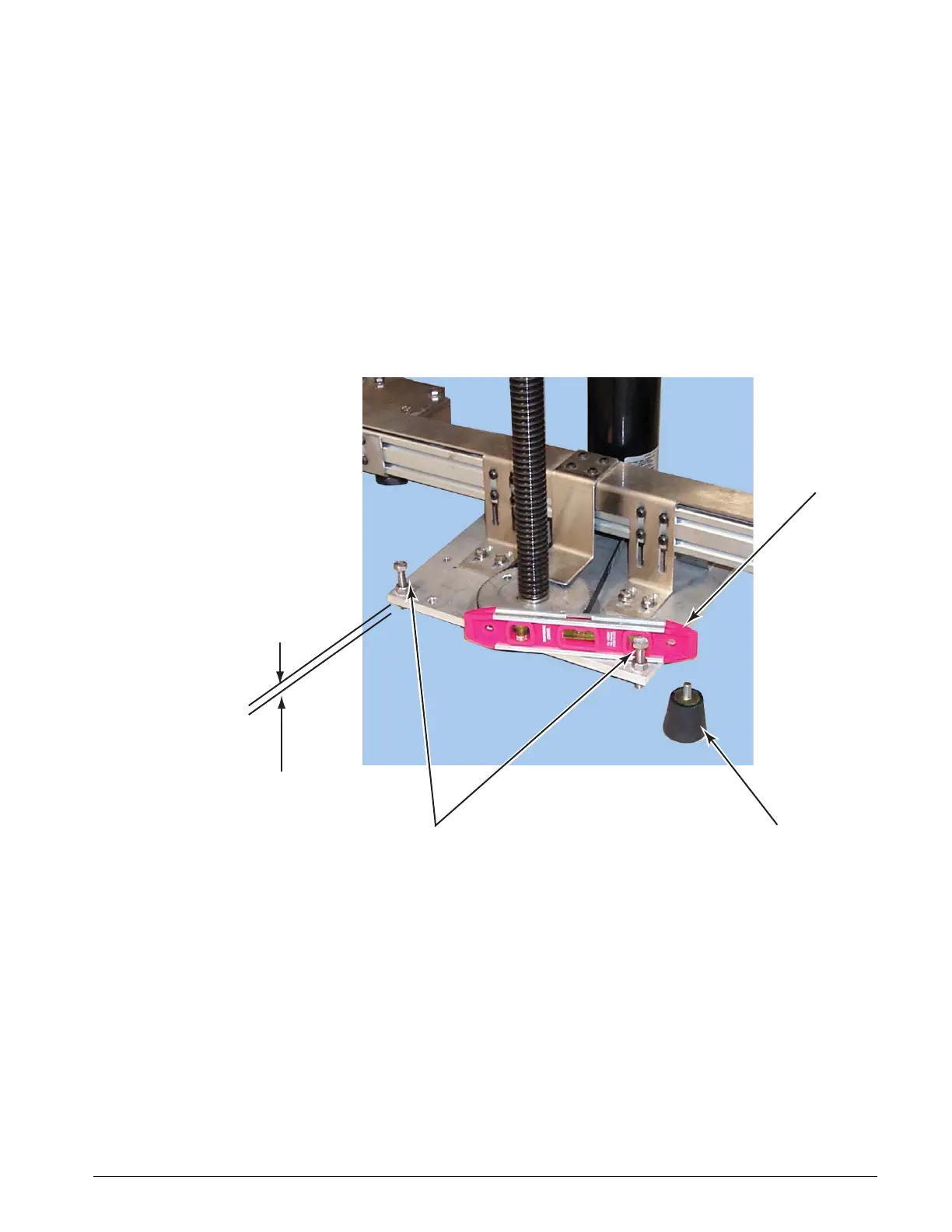

FIGURE 4–13. MOUNTING PLATE LEVELING BOLTS
3. Position a level as shown in Figure 4–13 and check that the mounting
plate is level from side to side.
A07027-BE
0.25 in (6.3 mm)
(bottom of plate to finished floor)
Adjust to level plate
from side to side
Remove bumper to
make space for level
Torpedo Level
