REMOVING THE STERILIZER
FRONT PANELS
To remove the front panels:
1. Refer to Figure 3–2. Use a screwdriver to turn the keyhole latch and
unlock the panels.
2. Unlatch the top panel, swing it open, and prop it open with the prop
rods found on the left and right sides of the panel.
3. Lift the left and right side panels off of the frame pins. The pins slide
through the slots on either side of the panels and lift out of the slot in
the lower panel.
4. Lift the bottom panel up off of the frame pins.

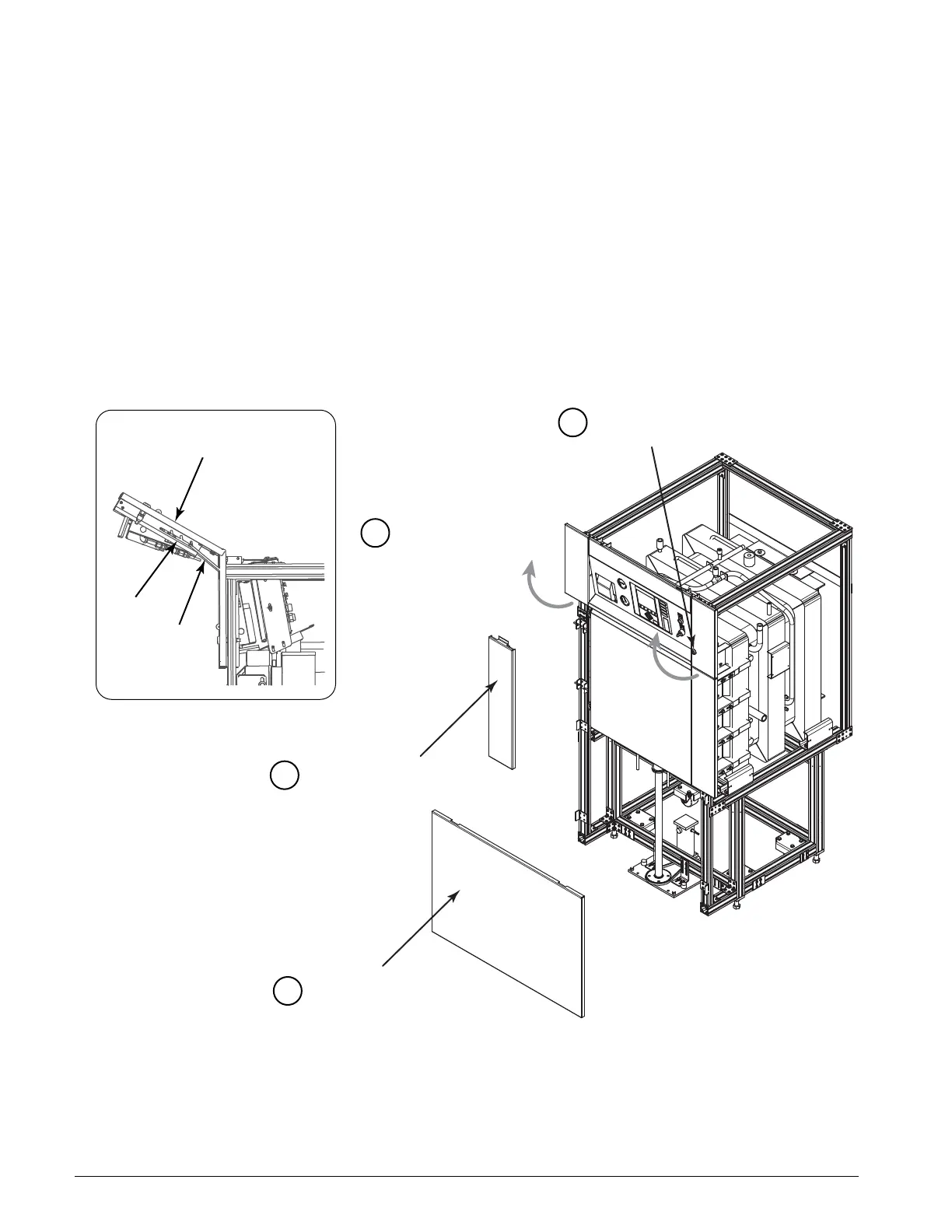

FIGURE 3–2. STERILIZER FRONT PANELS
Unlock latch
with screwdriver.
Raise and latch
front panel (see detail).
Lift side panels
off frame pins.
Lift bottom panel
off frame pins.
1
2
3
4
A07027-A2
Operator Panel
(in raised position)
Notches
Prop Rod
To Next Page
