Optional Equipment
5–10 INS 61301607027 Rev A US

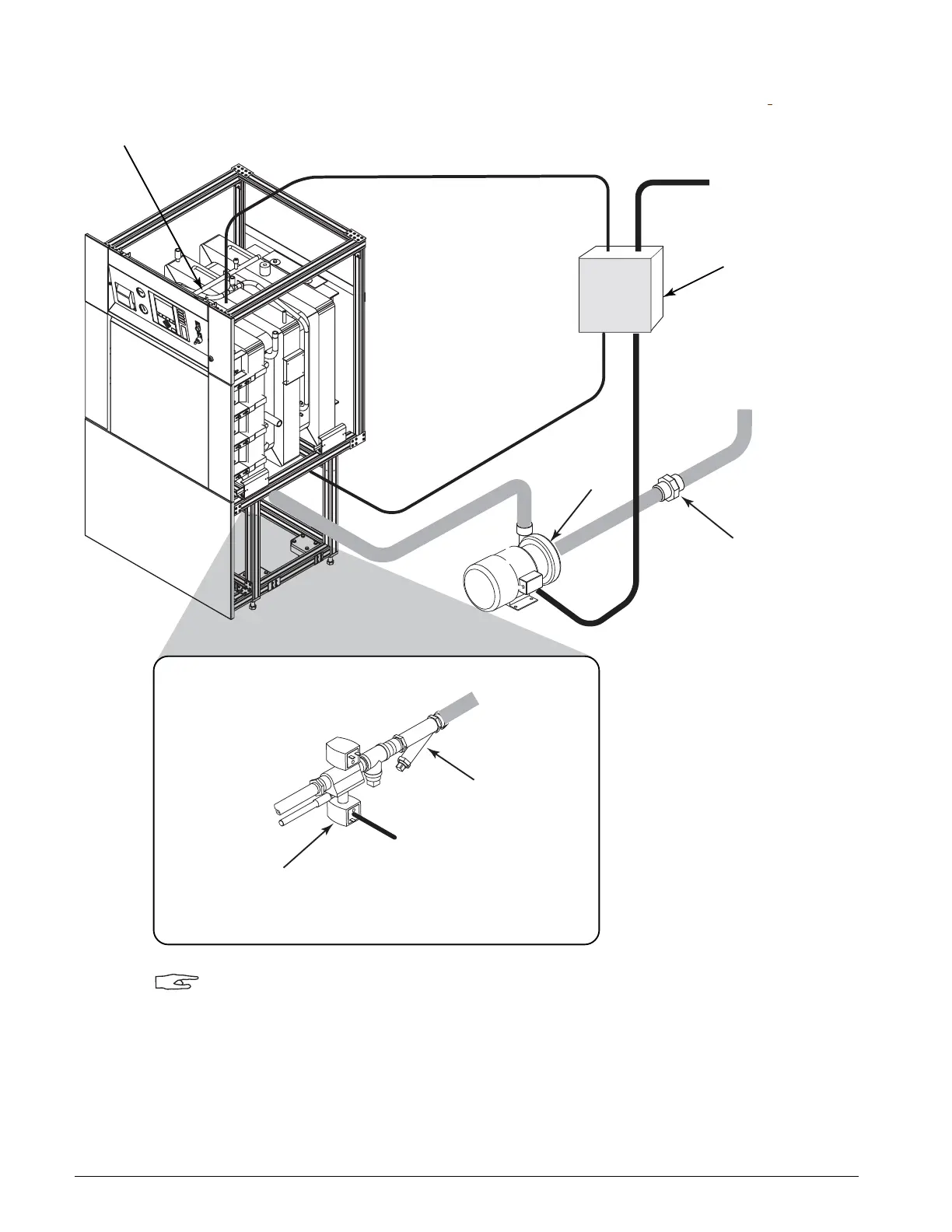

FIGURE 5–6. TYPICAL BOOSTER PUMP INSTALLATION
Water to Ejector
Solenoid Valve 6SV
(26 in. Length)
Water Supply
Strainer
24 Vac
Cold Water
Cold Water Supply
with Shutoff Valve
(by customer)
Discharge
Suction
115 Vac or 230 Vac
Single-Phase Supply
(by customer)
Pump Motor
Voltage
24 Vac from
Control Box
24 Vac to 6SV
Booster Pump
Junction Box
Booster
Pump
Control Box
A07027-N
This illustration shows a unit with a 26 in. length chamber.
On units with a 39 in. or 51 in. length chamber, the water supply
strainer is located in the upper piping.
Union
(recommended
by Getinge)
