600 Series Steam Sterilizers
INS 61301607027 Rev A US 5–31

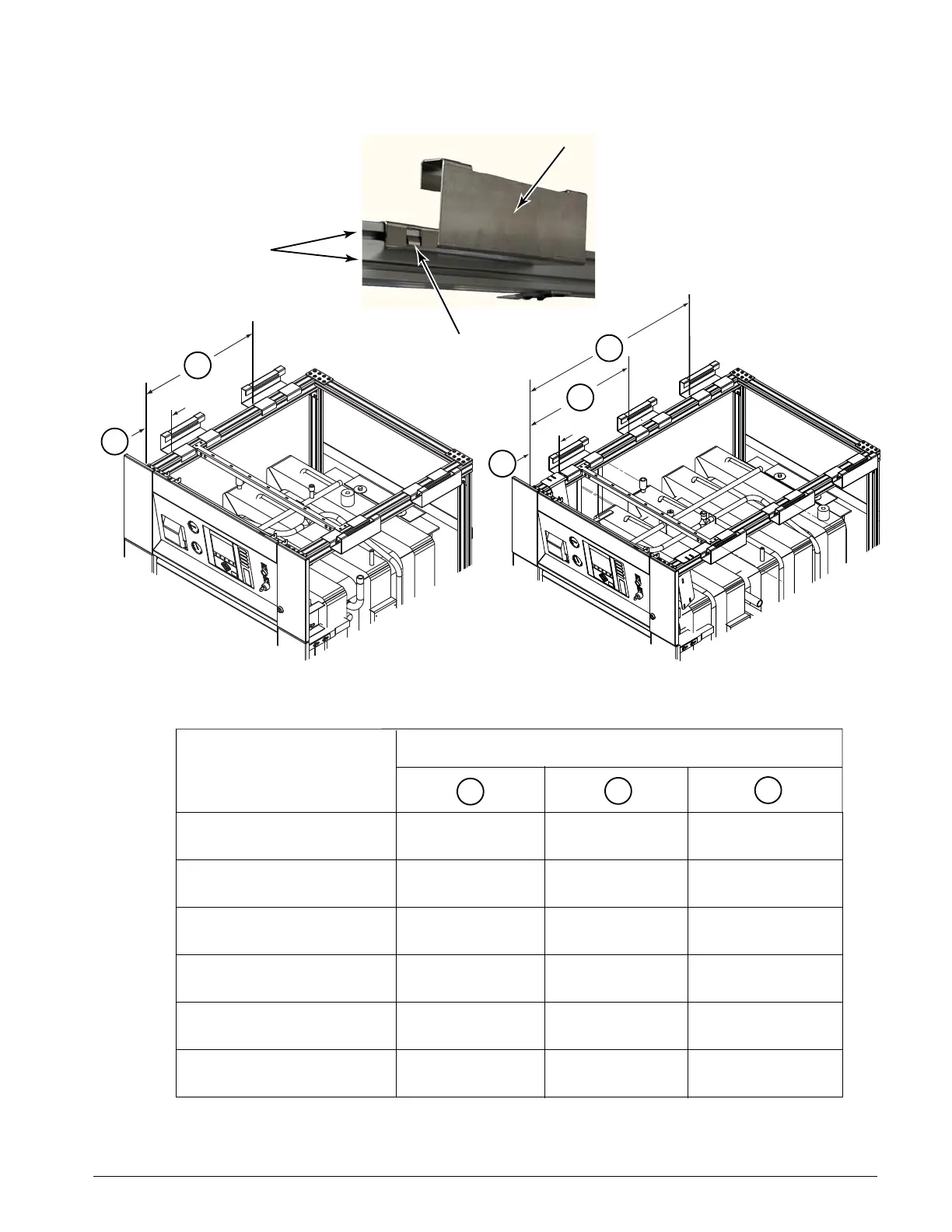

FIGURE 5–26. TOP SUPPORT BRACKET LOCATIONS
Four Upper Support Brackets
A
B
C
39" Single Door 7.00 in. (178 mm) 23.50 in. (597 mm) 28.75 in. (730 mm)
51" Single Door 7.00 in. (178 mm) 23.50 in. (597 mm) 45.00 in. (1143 mm)
51" Double Door 7.00 in. (178 mm) 23.50 in. (597 mm) 40.00 in. (1016 mm)
26" 7.00 in. (178 mm) 24.50 in. (622 mm) N/A
26" with Boiler 7.00 in. (178 mm) 23.50 in. (597 mm) N/A
39" Double Door 7.00 in. (178 mm) 25.50 in. (648 mm) N/A
A
B
A
B
C
STERILIZER LENGTH
DIMENSIONS
Six Upper Support Brackets
A07027-C
Grooves in
Extrusion
Tab
Top Support Bracket
