Getinge 9128 - Water System, Steam Heated

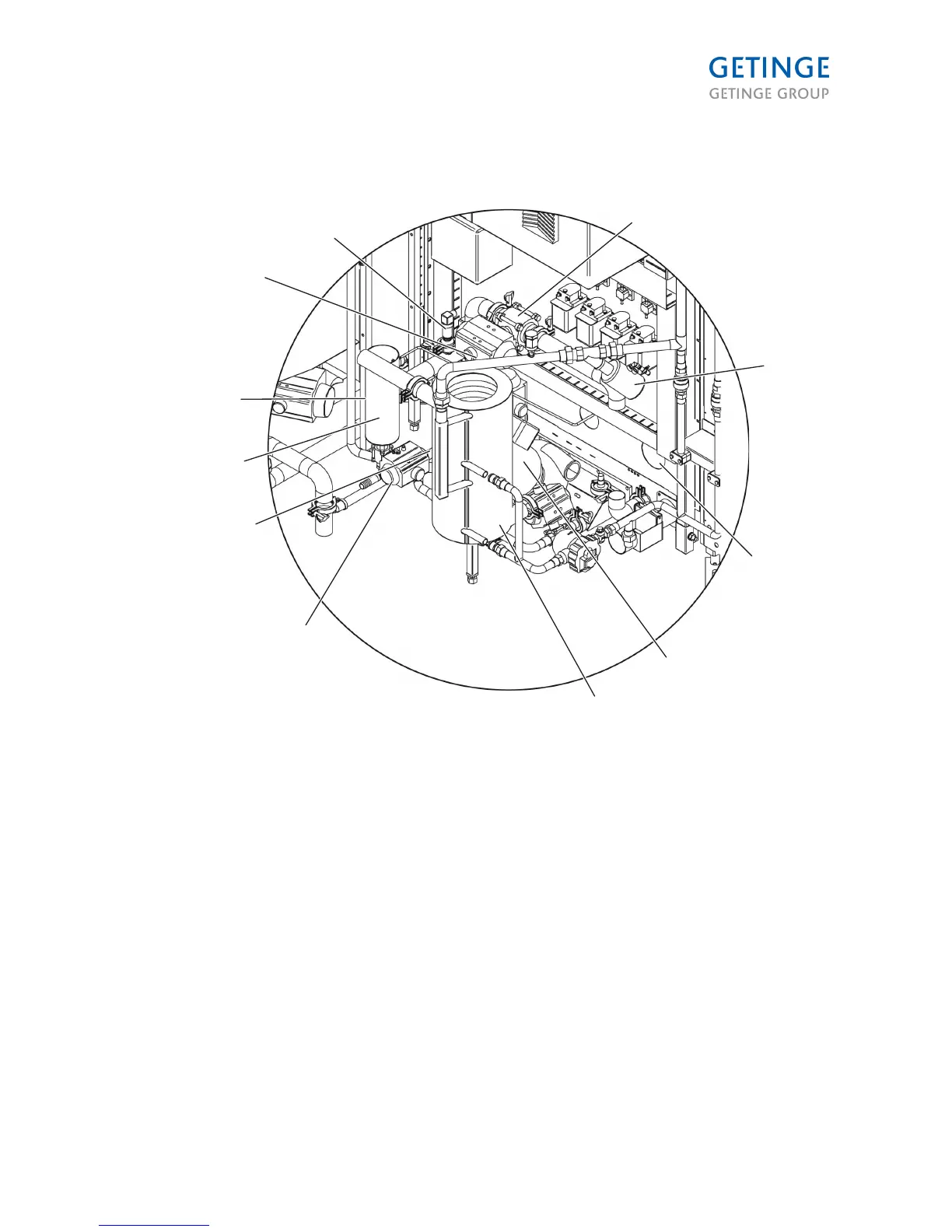

Water system, steam heated
1
8
7
11
4
3
2
10
12
5,6
9
608100
Pos Item Name
1 V09.2 Valve 2, docking
2 B05 Transmitter, DISCHARGE PRESSURE
3 V09.1 Valve 1, docking
4 V06 Valve, heating for washer-disinfector chamber
5 B01 Temperature sensor
6 B02 Temperature sensor
7 M01 Circulation Pump
8 Heating washer-disinfector chamber
9 V04 Valve, emptying filter
10 M02 Drain Pump
11 Filter for the washer-disinfector chamber
12 B12 Level switch, chamber low
