GFA TS981 - Mains Supply Connection

11

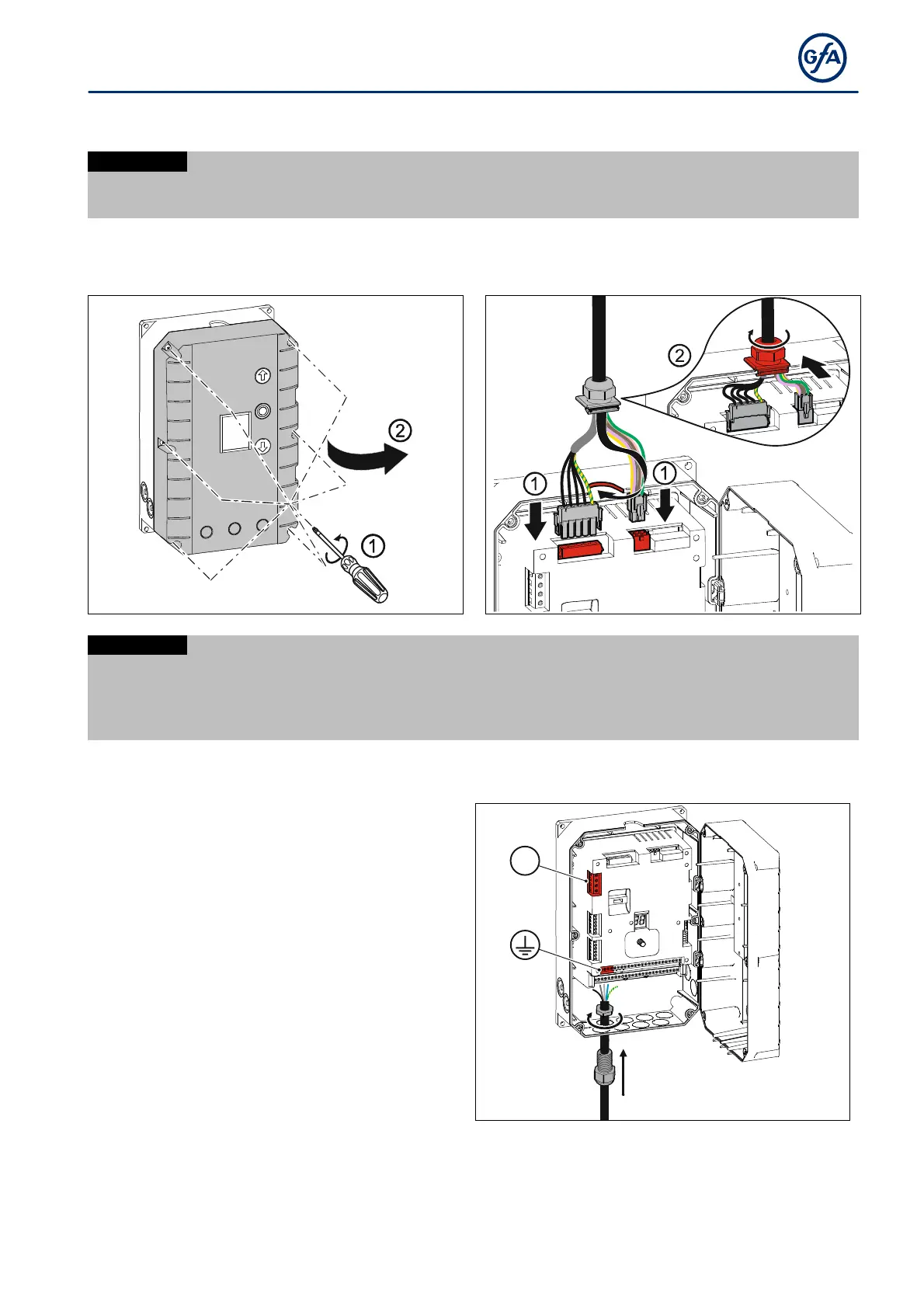

Connecting door control and drive unit
NOTICE
Damage to the product due to work carried out improperly

Use proper tools to prevent damage and leakage.
1. Remove the cover
2.
Run the connection cable through the housing
and insert the plugs.
3.
Tighten the cable gland.
NOTICE
Damage due to moisture or penetrating foreign bodies
 Check that all cable glands are tight.
 Seal open and unused cable entries with blanking plugs. This will prevent moisture or foreign bodies such
as insects from penetrating.
Mains supply

Before connecting, check whether a clockwise
rotating field is present at the installation site. If
not, create a clockwise rotating field.
 Route the cable for the mains connection into
the door control from below.
 Open a cable entry with a suitable tool.
 Connect the cable to terminals X1 and GND.
X1
