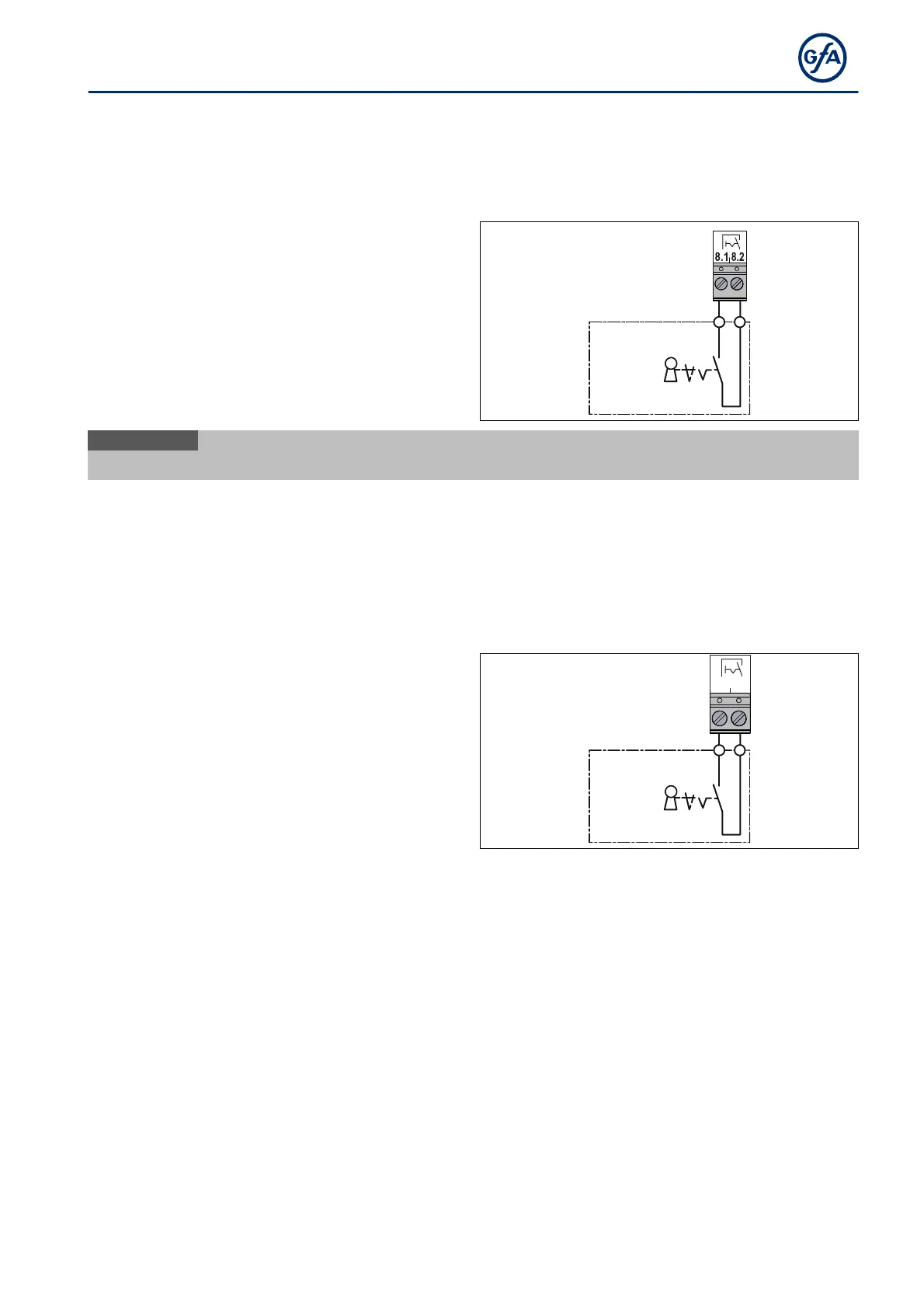

GFA TS981 - X8 - Switch for Intermediate Open; X11 - Switch for Automatic Closing

19
X8 - Switch for intermediate open
You can connect a switch for intermediate open of the door to terminals X8.1/X8.2.
The switch activates this function. With an OPEN command, the door moves to the saved door position. Only
when you deactivate this function with the switch, the door will return to the final limit position OPEN.

Mount the product according to the
manufacturer's instructions.
 Activate the switch after completing the electrical
installation using
menu item 1.6.
X8
A15
1 2
4
3
S17
i
NOTE
Use menu item
2.9
to specify the command devices for moving to intermediate open.
X11 - Switch for automatic closing
You can connect a switch for automatic closing time to terminals X11.1/11.2. With menu item 2.3, you select a
time between 1 and 240 seconds after which the door closes automatically.
The switch activates and deactivates this function. The programmed time remains stored.

Montieren Sie das Produkt nach Angaben des
Herstellers.
 Aktivieren Sie die Zeitschließung über
Programmierpunkt 2.3 nach Abschluss der
elektrischen Montage.
X11
A3
1 2
4
3
S17
11.111.2
