GFA TS981 - Display and Connections

7

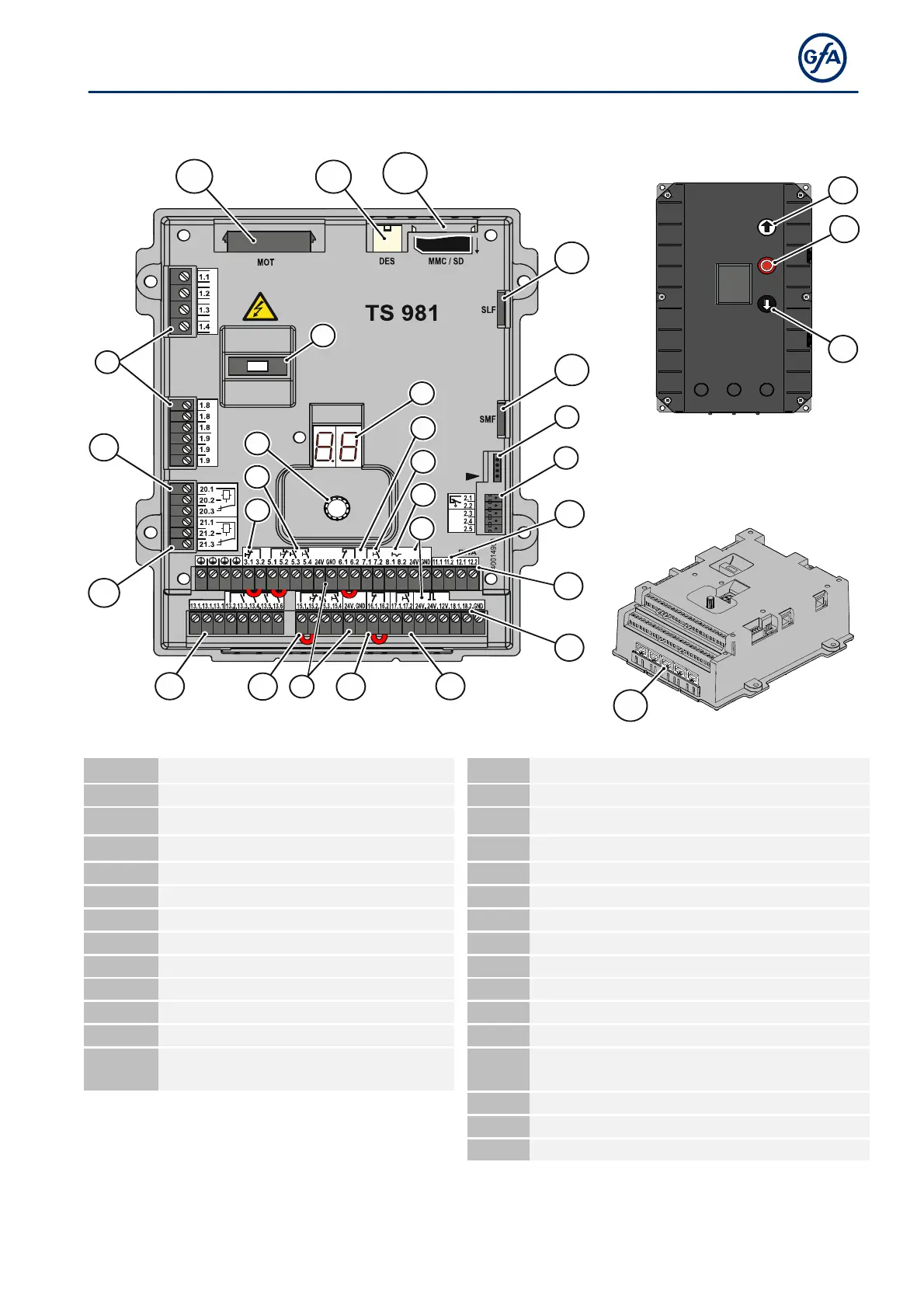

Overview display TS 981
U B S
M O
T
D E
S
MMC
/ SD
S L F
S M
F
V1
X2
X11
X12
X18
S1
X7
X6
X3
X5
X13 X15 X16 X17
X21
X20
X1
F1
S11
S12
S13
S0
X8
X
X
DES
Slot digital limit switch (DES)
X
24 V mains supply, external devices
F1
Micro
-
fuse 1.6 A time
-
lag
X1
Mains supply
MOT
Motor socket
X2
Door safety switch and safety devices
MMC/SD
Slot for memory cards
X3
Emergency STOP
control device
SLF
Slot for Air
-
lock control function
X5
Control device, external three push
-
button
SMF
Slot for Status / Information function
X6
Through / reflective photo cell
S0
Slot built in push button
X7
Pull switch, external radio receiver
S1
Selector switch
X8
Intermediate open On/Off
S11
OPEN push
-
button
X11
Automatic closing On/Off
S12
STOP push
-
button
X12
Smoke draining
S13
CLOSE push
-
button
X13
Traffic lights 2 x Red / Green
V1
Display
X15
Control device, external three
push
-
button
UBS
Socket for universal command sensor
system
X16
Through / reflective photo cell
X17
Pull switch, external radio receiver
X18
Entrapment safety evaluation
X20/21
Potential free relay contacts
