X18 - Safety device against entrapment
Two safety devices can be connected to terminals X18.1/X18.2 to prevent drawing in people.
 Mount the product according to the manufacturer's instructions.
 Shown are examples of safety devices against entrapment.
 Use menu item 3.7 to activate the product. You can also choose whether one or two inputs are active and
which type is used:
Evaluation principle
Application
P
3.7
-
Option
NC evaluation 1k2
External NC contact with 1k2 evaluation
.1 / .2
NO evaluation 8k2
Safety device against entrapment with 8k2 output
.3 / .4
Impulse evaluation 1 kHz
Safety device against entrapment with impulse signal 1
kHz (e.g., Raytector)
.5 / .6 - .9 / 1.0
NC evaluation with testing
Photocells that are tested
before each OPEN operation of
the door.
.7 / .8
X18
X18

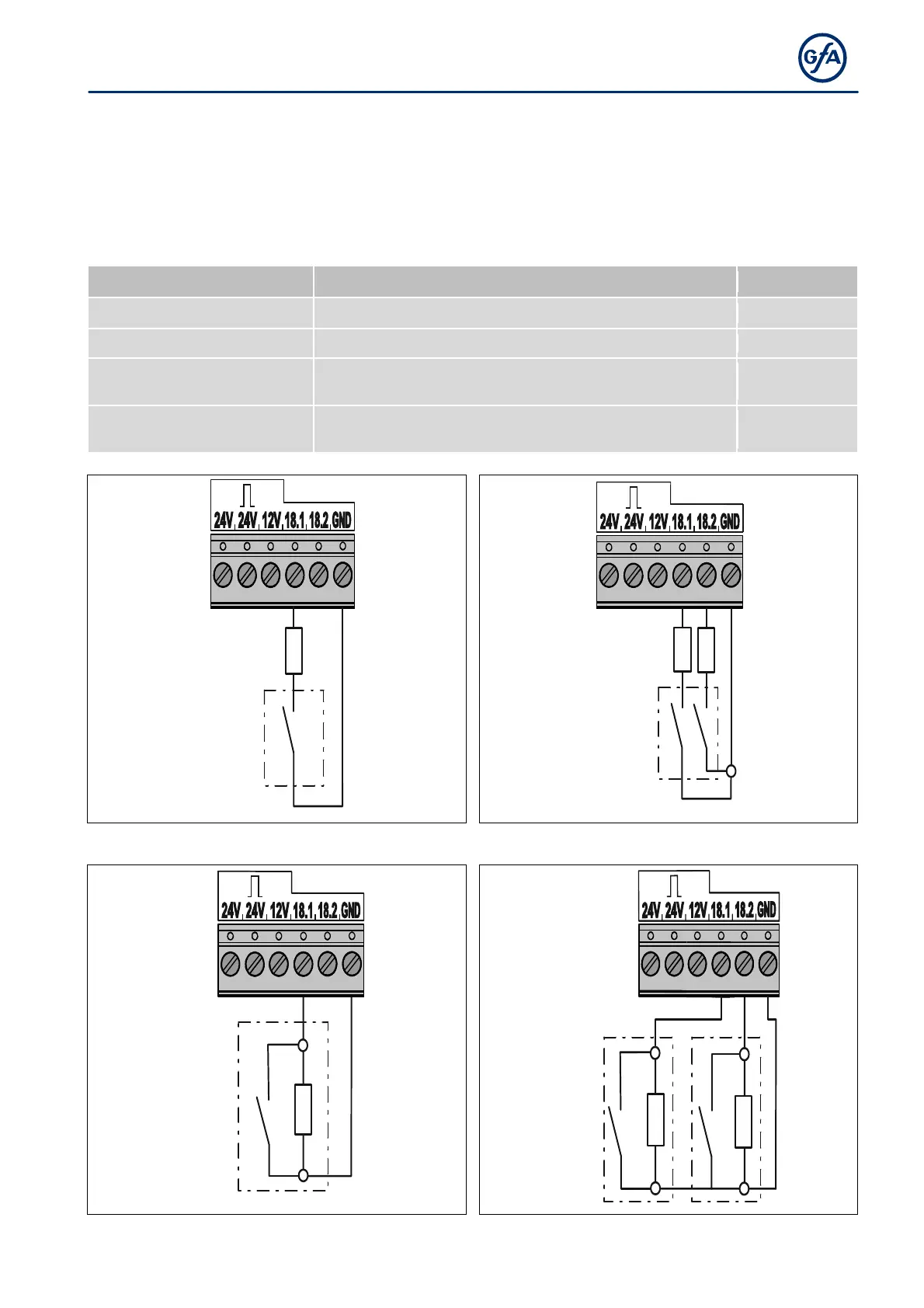

Safety device against entrapment with external evaluation unit (NC
contact with 1k2)
-
single
Safety device against entrapment with external evaluation unit (NC
contact with 1k2)
-
double
X18
X18
Safety device against entrapment with 8k2 output (NO evaluation) - single Safety device against entrapment with 8k2 output (NO evaluation) -
