GFA TS981 - Status Displays of the Door Control

8

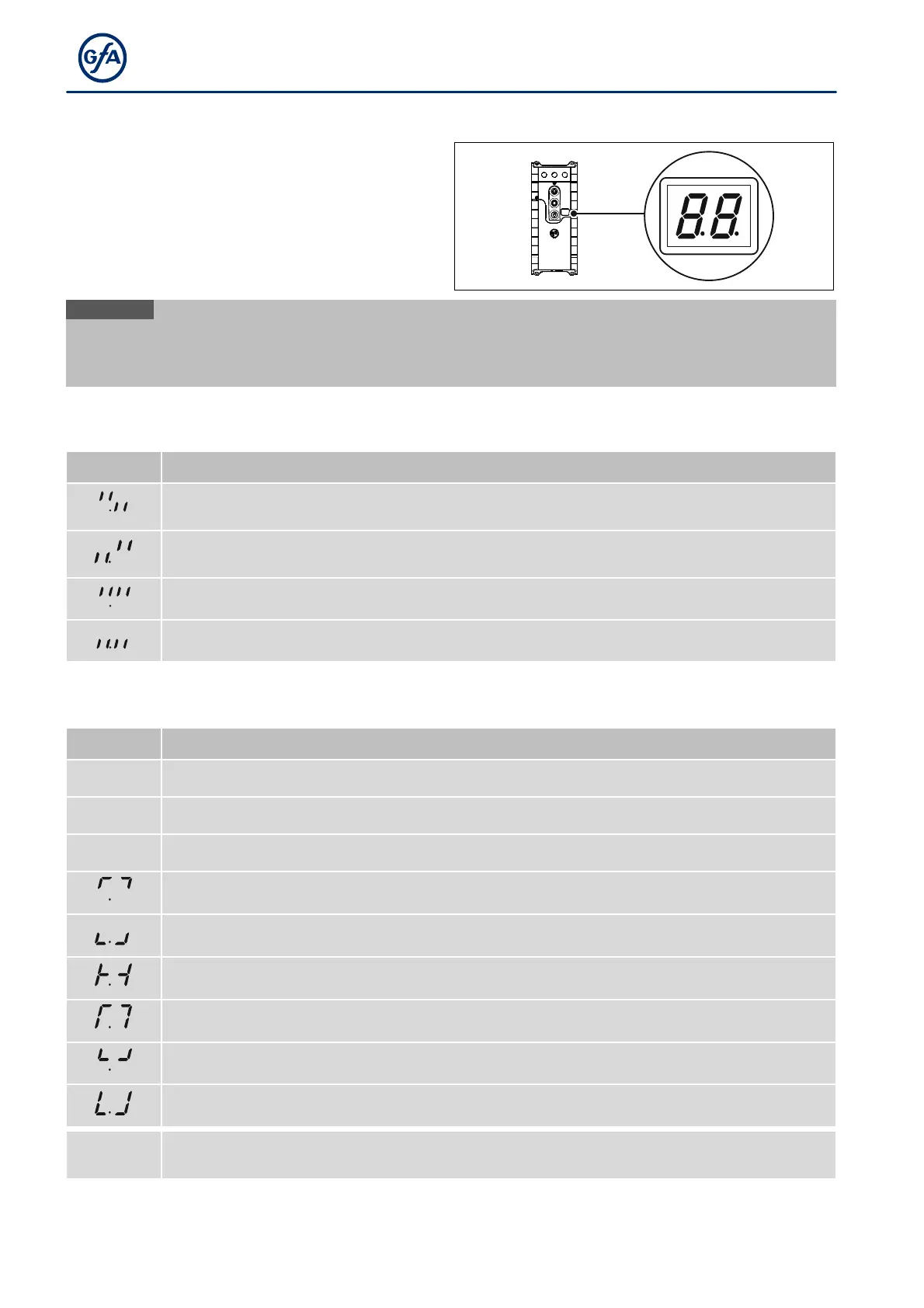

Status displays of the door control
The display of th
e door control consists of a double
-
digit seven-segment-display. The display can show
symbols, letters, or numbers.
The figure shows the display when all segments are
illuminated.
i
NOTE
An
E
alternating with a number on the door control stands for a movement command.
An F alternating with a number on the door control stands for a fault indication. See Chapter : Fault
indication
.
Status display during initial operation
These symbols appear only while the final limit positions are set.
Display
Description
Changing output rotating direction is active
.
Changing output rotating direction is completed
.
Flashing: Teaching in final limit position OPEN
.
Flashing:
Teaching in final limit position CLOSE
.
Status displays during operation
Display
Description
.
Standby. A movement command or
pressing a pushbutton exits the
standby mode.
c.s
Preset maintenance cycle counter has been reached. See menu item 8.5 / 8.6.
8.8.
Display does not light up. Indicates a
short circuit or overload of the 24V
DC supply voltage.
Flashing: Door is openi
ng.
Flashing: Door is closing.
Door is stationary between two final limit positions.
Door is in final limit position OPEN.
Door is in programmed intermediate
open.
Door is in final limit position CLOSE.
8.8
Flashing: Emergency operation active
.
Non
-
flashing: programming disabled.
