27
333/334 HPLC PUMPS | USER’S GUIDE
POSITIONING THE PUMPS
Side-by-Side Configuration
The tubing port of the 333 Pump should face the 334 Pump so that the steel tubing
(part number 380133592) can properly feed from the pressure, purge, and mixing module
(PPMM) on the 333 Pump to the outlet tee on the 334 Pump.
Connecting Tubing for
Side-by-Side Configuration
(part number 380 133 592)
Tubing Port
Solvent Line
from 334 Pump
Solvent Line
to 333 Pump

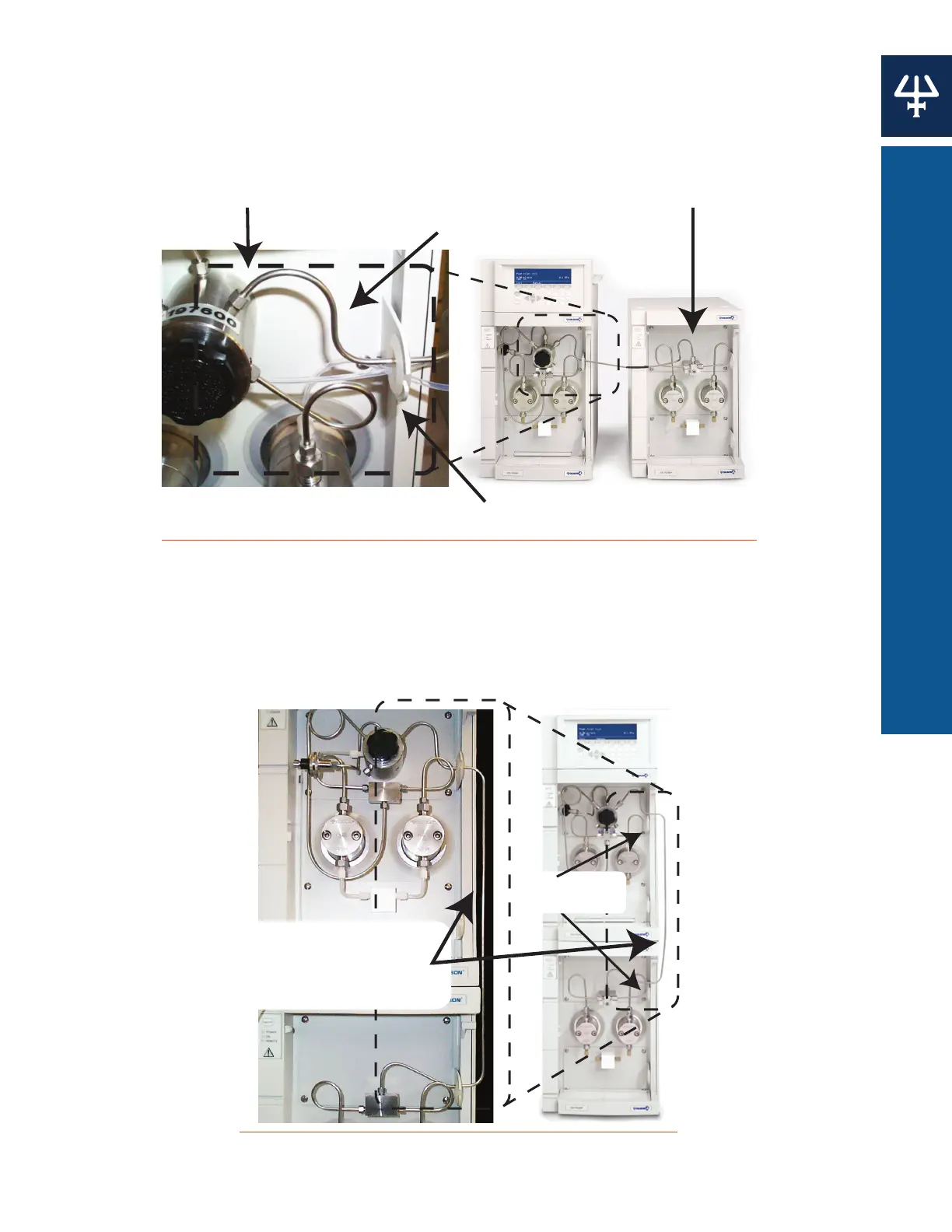

Figure 18
Side-by-Side Configuration with Tubing Port Detail
Vertical Stacking Configuration
Stack the 333 Pump on top of the 334 Pump to conserve bench space. The tubing ports on
both pumps face the same side to allow the pre-shaped tubing (part number 380132582) to
connect from the PPMM on the 333 Pump to the outlet tee of the 334 Pump.
Connecting Tubing for
Vertical Stacking
(part number 380 132 582)
Tubing Ports
Figure 19
Vertical Stacking with Tubing Ports
