Avoid dusty or smoky environments or locations
near sources of heat.

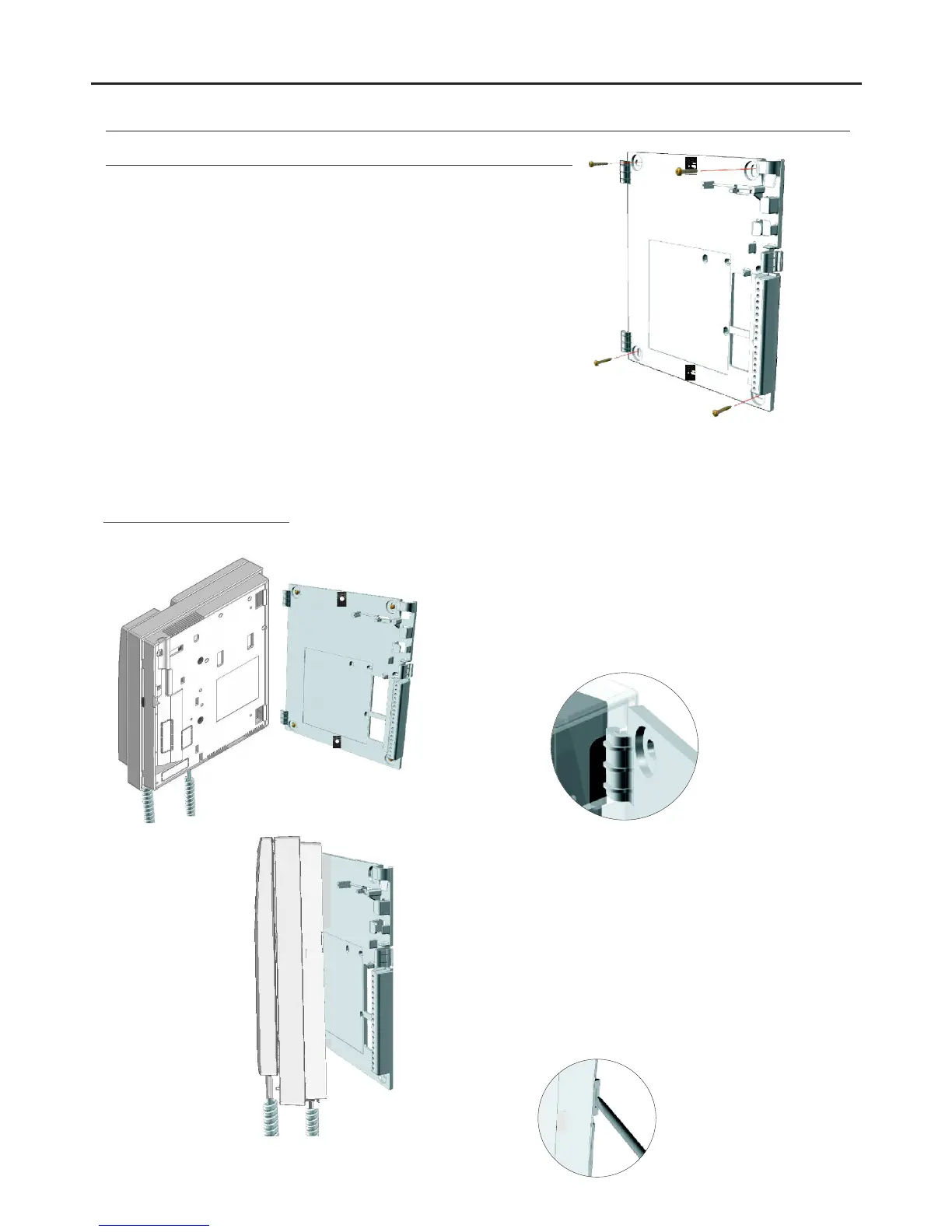

To install the monitor directly over the wall, drill two
holes of Ø6mm and use the supplied screws.
The top of the wall mount connector must be positioned
at a height of 1.60m. The minimum distance between
the sides of the wall mount connector and the closest
object must be 5cm.
Place the monitor at right angles to the wall
mount connector and align the holes on
its base with the fixing clips of the connector,
as shown in the drawing.
Close the monitor like a book, applying
pressure to the right-hand side until
the click of the connector's fixing clips
can be heard.
To remove the monitor from the connector
after installation, use a flat screwdriver to
release the fixing clips. Once the monitor
has been released, open it like a book and
remove it from the connector, making sure
that it does not fall.
100
Fixing the monitor's wall mount connection block to the wall:
DESCRIPTION OF THE MONITOR
Positioning the monitor:
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL
