Description of the Tekna Plus monitor:

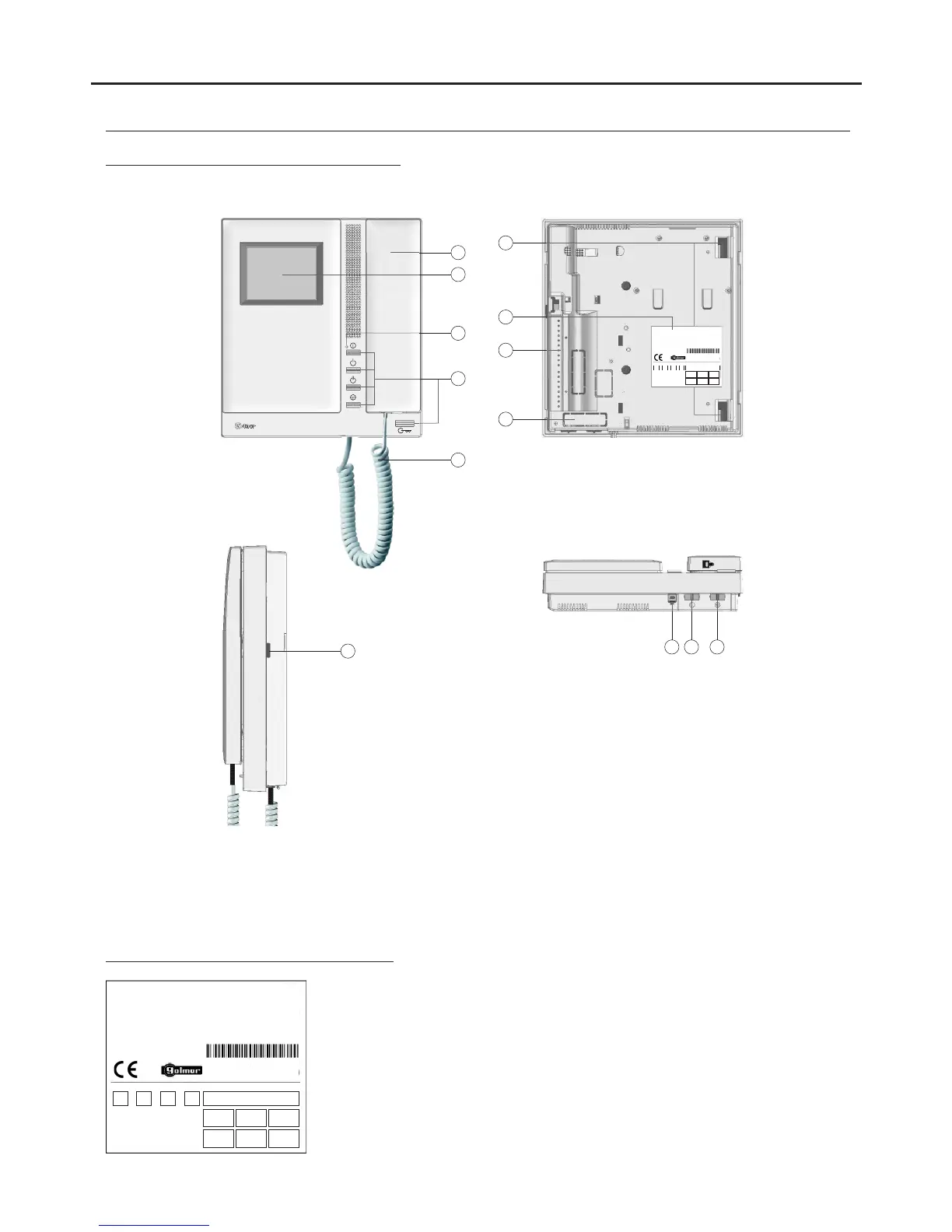

DESCRIPTION OF THE MONITOR
a
f
g
b
j
lk
m
c
I
h
e
d
00000000000
v.xx
MASTERINTER A1 SLAVE CODE
ESCALERA
STAIR
PISO
FLOOR
PUERTA
DOOR
ATENCIÓN
Alta tensión. No abrir la tapa.
Manipular sólo por personal
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
SN
CODE
REF.
TEKNA PLUS COLOR
11742004
To facilitate repair, replacement or the addition of monitors to the existing installation, fill
in the label with the relevant information.
MASTER: main monitor.
SLAVE: .secondary monitor
INTER: secondary monitor with intercom function.
A1: monitor connected to an auxiliary device.
CODE: .call button code
STAIR: code of the channel (building).
Description of the identification label:
a.
b.
c.
d.
e.
f .
g.
h.
i .
j .
k.
l .
m.
Handset.
Colour screen.
On-Off light indicator.
Function push buttons.
Telephone cord.
Connector fixings.
Identification label.
Connector connection points.
CN4 connector.
Three position volume control.
Cord connector.
Co control.lour
Brightness control.
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
00000000000
v.xx
MASTERINTER A1 SLAVE CODE
ESCALERA
STAIR
PISO
FLOOR
PUERTA
DOOR
ATENCIÓN
Alta tensión. No abrir la tapa.
Manipular sólo por personal
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
SN
CODE
REF.
TEKNA PLUS COLOR
11742004
