Programming the Tekna Plus monitors:
PROGRAMMING THE MONITORS

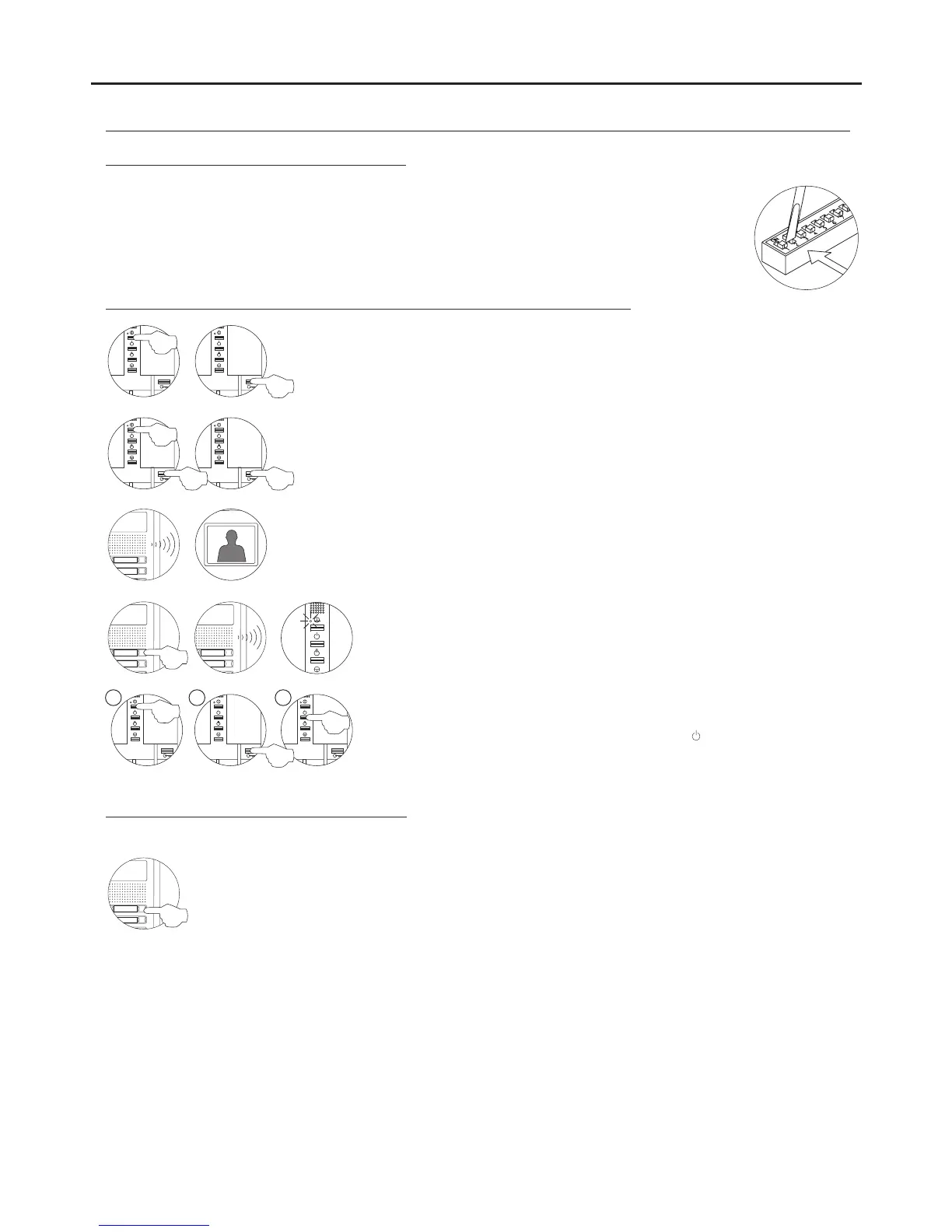

Locate the SW2 DIP switch situated on the top left-hand side of the back of the EL632/PLUS module and set
number 2 to ON. The door panel will reproduce a sound to advise that the system has entered into
programming mode.
In systems with more than one door panel, the programming process shall be done on the master door
panel only.
Switch off the monitor to be programmed.
Once the telephone is off, press the door release push button.
With the door release push button pressed, switch on the monitor.
To show that the system is ready for programming, the door panel will reproduce a sound
and the picture will appears on the monitor. At this moment, the door release push button
can be released. Lift the handset to establish audio communication with the door panel.
Press the door panel push button that will call this monitor.
At this moment the door panel will reproduce a sound and the monitor led will
blink.
To programme the monitor as the , switch it off and on again.Master
To programme it as a , press the door release button.Slave
To programme it as a , press the buttonSlave with intercom .
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done, the door
panel will emit tones to indicate that the system is still in programming mode.
To programme the monitor from a general entrance door panel (if any), see p. 50.
