Avoid dusty or smoky environments or locations
near sources of heat.
To install the monitor directly over the wall, drill
two holes of Ø6mm and use the supplied screws.
The top of the wall mount connector must be
positioned at a height of 1.60m. The minimum
distance between the sides of the wall mount
connector and the closest object must be 5cm.
Place the monitor at right angles to
the wall mount connector and align
the holes on its base with the fixing

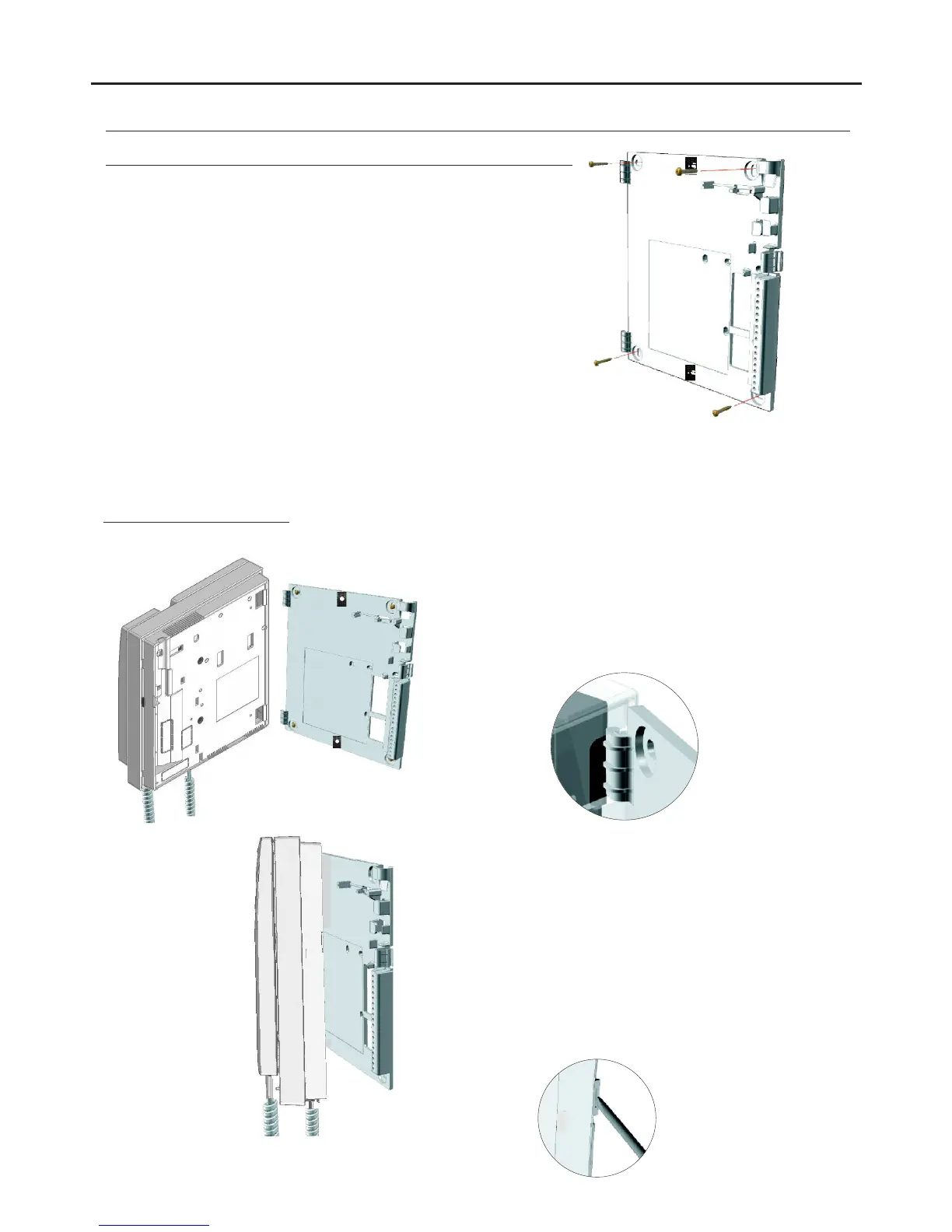

clips of the connector, as shown in
the drawing.
Close the monitor like a book, applying pressure
to the right-hand side until the click of the
connector's fixing clips can be heard.
To remove the monitor from the connector after
installation, use a flat screwdriver to release
the fixing clips. Once the monitor has been
released, open it like a book and remove it
from the connector, making sure that it does
not fall.
53
Fixing the monitor's wall mount connection block to the wall:
DESCRIPTION OF THE MONITOR
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
Positioning the monitor:
