golmar Nexa - Description of the Button Modules; Description of the EL610 A Button Module

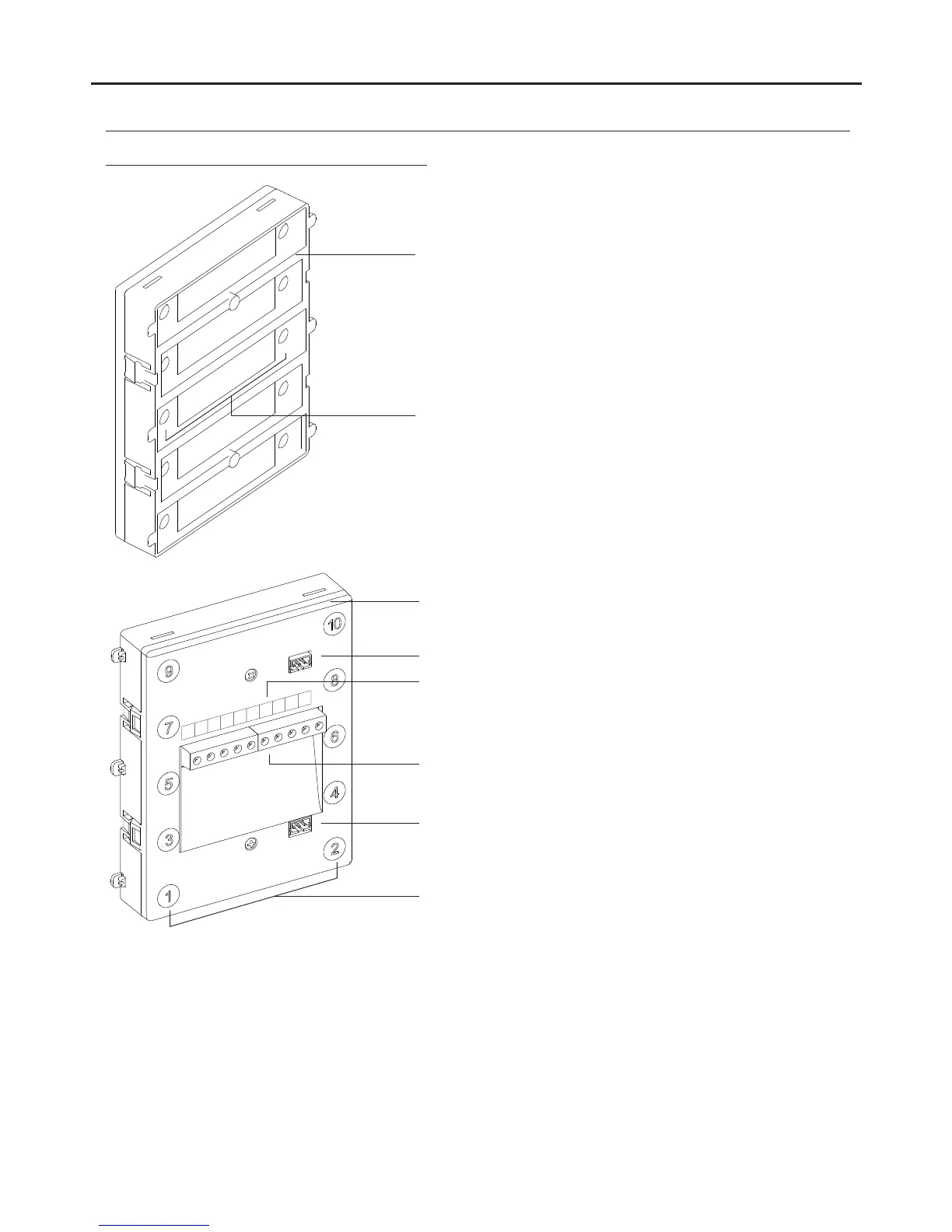

Front.
Module buttons (x10).
- I1
- I2
- I3
- I4
- I5
- I6
- I7
- I8
- I9
- I10
: 1.
Call indicator button
: 2.Call indicator button
: 3.Call indicator button
: 4.Call indicator button
: 5.Call indicator button
: 6.Call indicator button
: 7.Call indicator button
: 8.Call indicator button
: 9.Call indicator button
: 10.Call indicator button
Button connector block
.(independent of calls)
Label
.
Back.
Button number.
I
1
I
2
I
3
I
4
I
5
I
6
I
7
I
8
I
9
I
10
Button connector input.
Button connector output.
Description of the EL610A button module:
