Fixing the telephone to the wall:
DESCRIPTION OF THE TELEPHONES
57

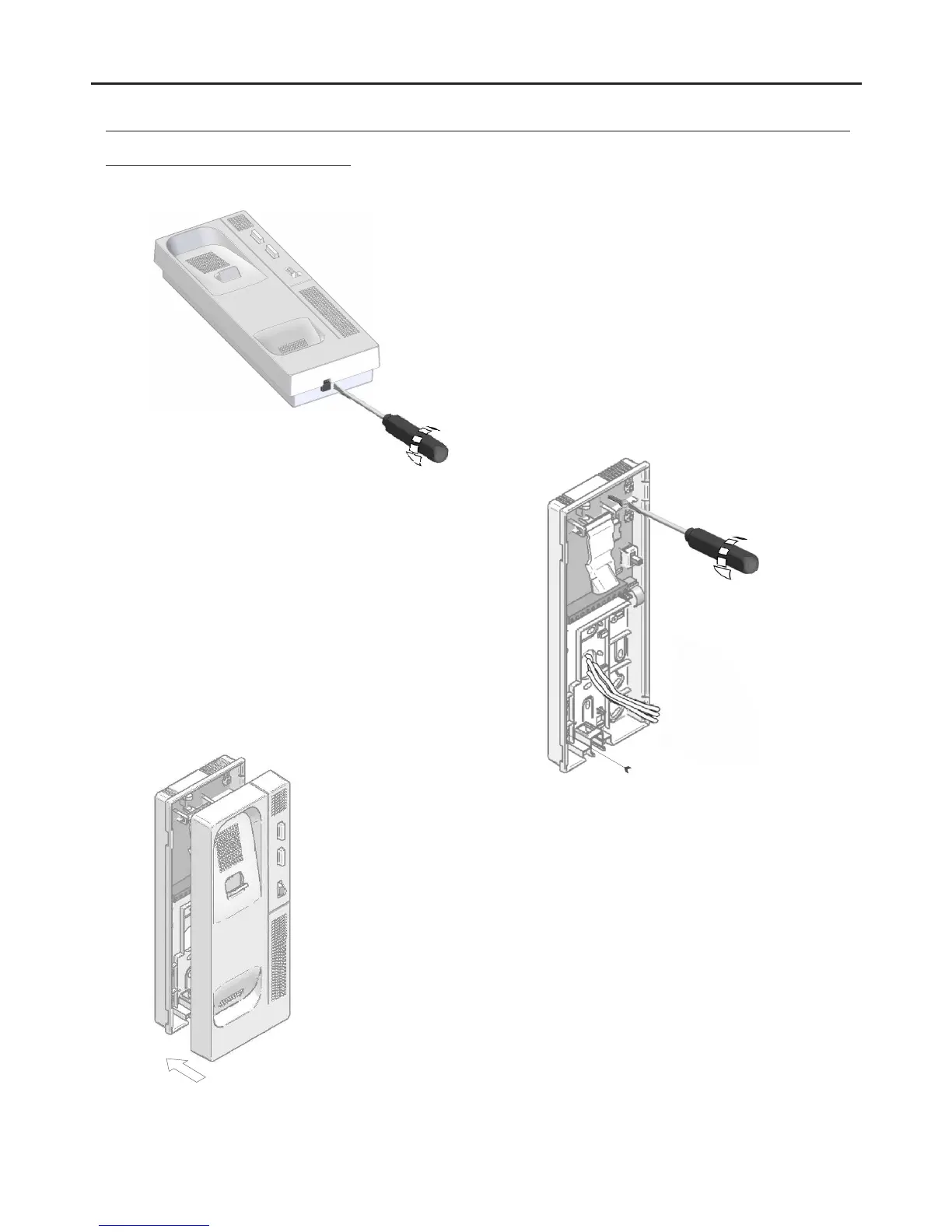

It is necessary to open the telephone for wiring and fixing purposes. To open
the telephone, insert a flat screwdriver into the slots and gently lever as
shown in the drawing.
Feed the wires through the holes and connect them to the wall mount connector as per
the wiring diagram. Close the telephone as shown in the drawing. Once the
telephone is closed, connect the handset using the telephone cord and put it on the
cradle.
Avoid dusty or smoky environments or locations near sources of
heat. The telephone can be secured using an electrical
embedding box or directly to the wall. To secure directly to the
wall, drill two 6mm holes at the specified positions using 6mm
wall plugs and Ø3.5 x 25mm screws.
