INSTALLATION OF THE DOOR PANEL
Pass the cable through the hole made in the
embedding box. Embed the box and ensure
that it is level and flush. Once the embedding
box is positioned, remove the protective stickers
from the door panel's fixing holes.
Insert the sound module into the top of the frame module.
Line up the clips on the sound module with the respective housings on the frame module and
.then press gently until correctly positioned
If there is a button module, repeat the above process, positioning it below the sound module
or the other frame if any, as shown in the drawing.

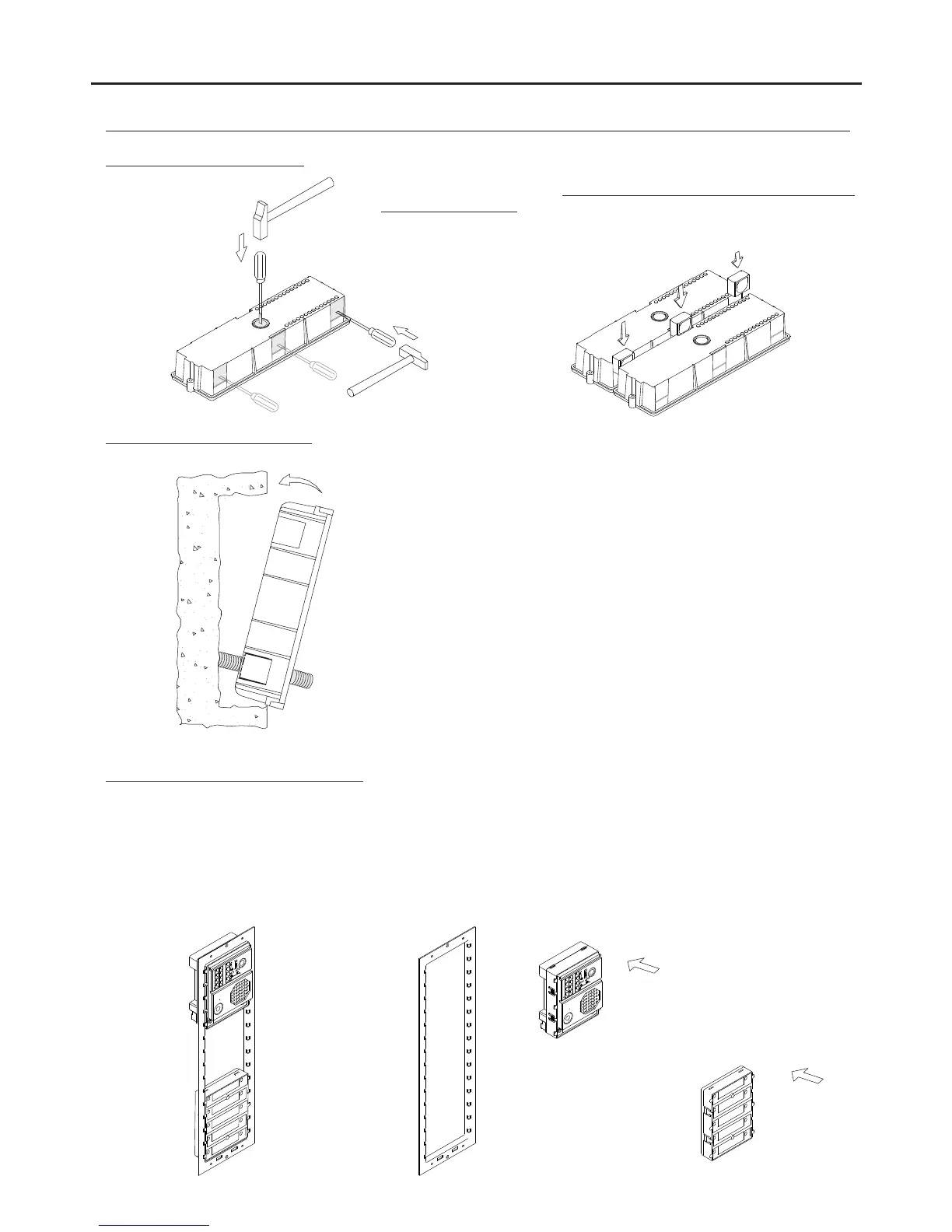

Fitting the embedding box:
Mounting the electronic modules:
Break through the hole to allow entry of cables through the bottom part of
the embedding box.
In the case of door panels with more than one embedding box, break
through the side holes and join the embedding boxes using cable grommets.
Preparing the cable entry:
Sound module
EL655
EL651
EL620
EL632
EL642
EL632/R5
EL642/R5
Button modules
EL610X
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
