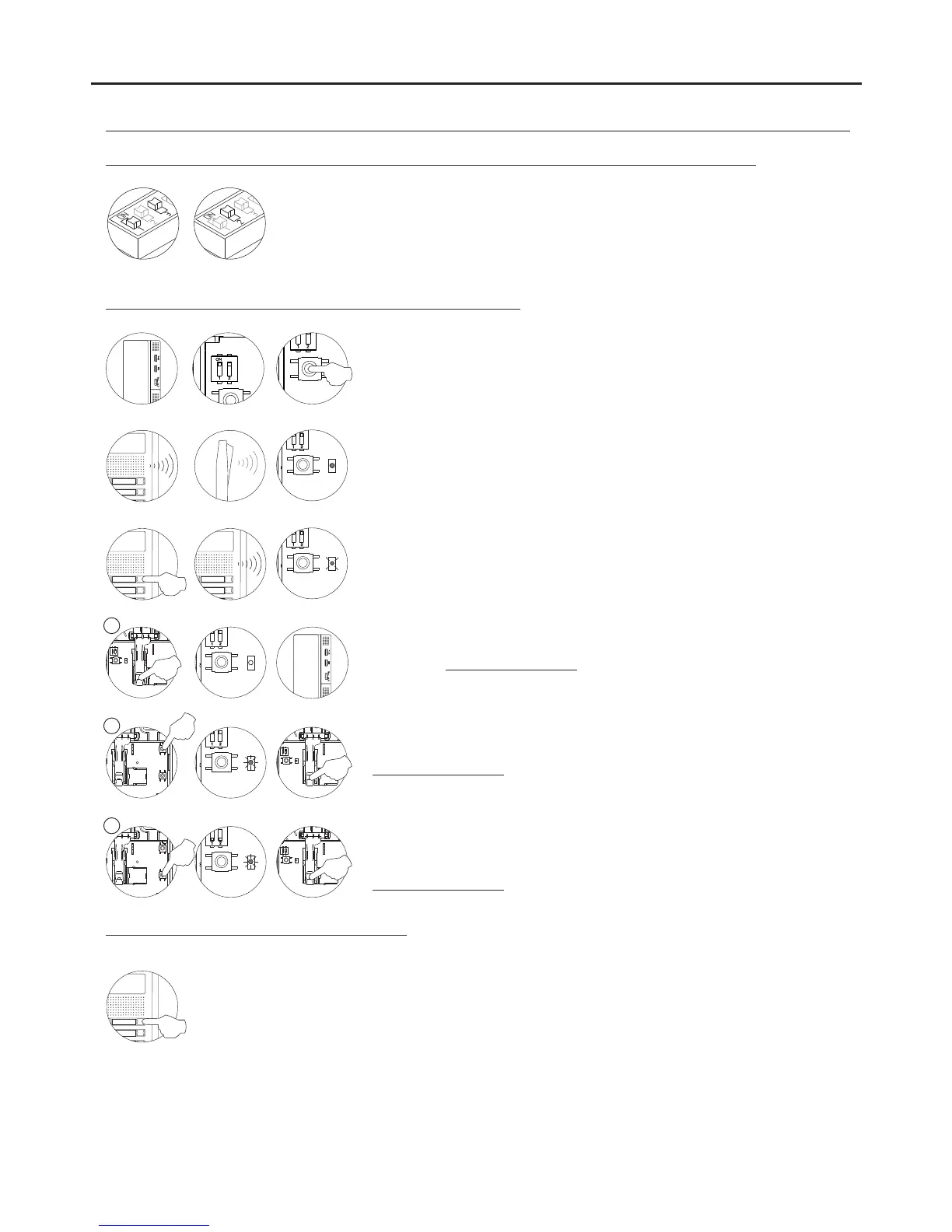

Programming T-540 Plus telephones from a general entrance door panel (SW1-1 ON):
PROGRAMMING THE TELEPHONES - GENERAL ENTRANCE DOOR PANEL ONLY
To programme the telephone from a inner door panel, see p. 58.
59
P3
1
2
To show that the system is ready for programming, the door panel and the
telephone handset will emit a number of tones (the LED on the telephone will
light up), enabling audio communication to be established with the door panel.
Press the door panel push button that will call this telephone.At this moment, the
door panel and the handset will emit a number of tones (the LED on the
telephone will blink slowly).
P3
ON
To programme the telephone as the , press the hang up button (the LEDMaster
will go out). Close the telephone.
P3
ON
P3
ON
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the telephone has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done, the door panel
will emit tones to indicate that the system is still in programming mode.
To programme the telephone as the , press the P1 lock release button (theSlave
LED will blink rapidly), and then press the hang up button (the LED will go out).
Close the telephone.
P3
ON
P3
SW1
1 2
Open the telephone to be programmed (see p. 57). In the SW1 DIP switch,
select the P2 button function mode (see p. 56) and then press the P3
programming button.
P1
P2
CN1
To programme the telephone as the + , press the P2 functionSlave Intercom
button (the LED will blink rapidly), and then press the hang up button (the LED
will go out).
Close the telephone.
M
S
SI
P1
P2
CN1
P3
SW1
P1
P2
CN1
ON
P3
ON
P3
SW1
P1
P2
CN1
ON
P3
SW1
P1
P2
CN1
ON
Locate the SW2 DIP switch on the general entrance door panel situated on the top left-hand side
of the back of the sound module. With switch 1 OFF and switch 3 ON, set switch 2 to ON: the
generalentrance door panel will emit a toneindicating that ithas entered programming mode.
In systems withmorethan one door panel,only carry outthis procedure on the main door panel.
