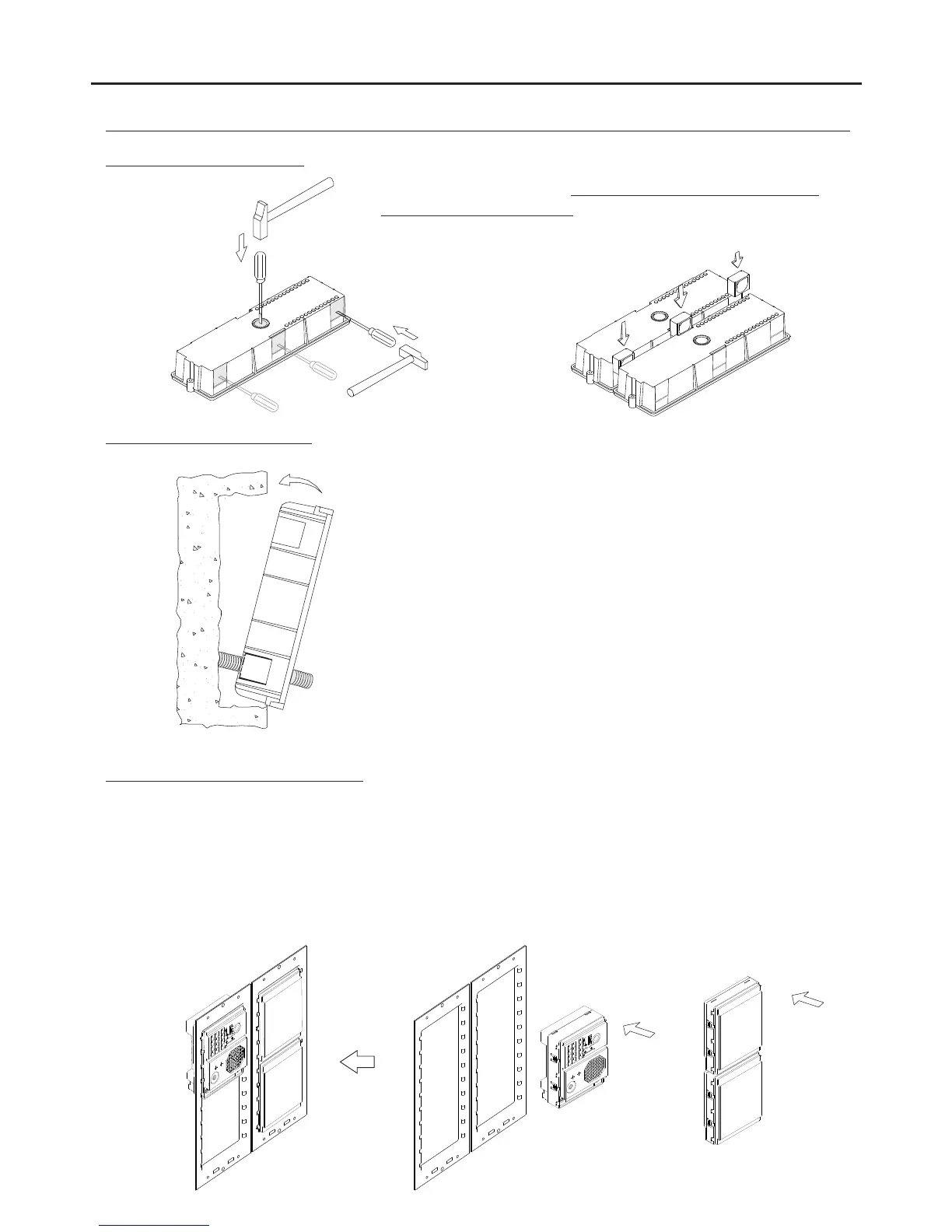

INSTALLATION OF THE DOOR PANEL
Pass the cable through the hole made in the
embedding box. Embed the box and ensure
that it is level and flush. Once the embedding
box is positioned, remove the protective stickers
from the door panel's fixing holes.
Insert the sound module into the top of the frame module.
Line up the clips on the sound module with the respective housings on the frame module and
then press gently until correctly positioned.
Sound module
EL632/PLUS
EL642/PLUS
EL632/R5
EL642/R5
If there is a lighting module, repeat the above process, positioning it below the sound module or
the other frame if any, as shown in the drawing.
Fitting the embedding box:
Mounting the electronic modules:
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL
Break through the hole to allow entry of cables through the bottom
In the case of door panels with morepart of the embedding box.
than one embedding box, break through the side holes and join the
embedding boxes using cable grommets.
Preparing the cable entry:
Lighting modules
EL3002
