Programming Tekna Plus monitors from a general entrance door panel (SW1-1 ON):
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL

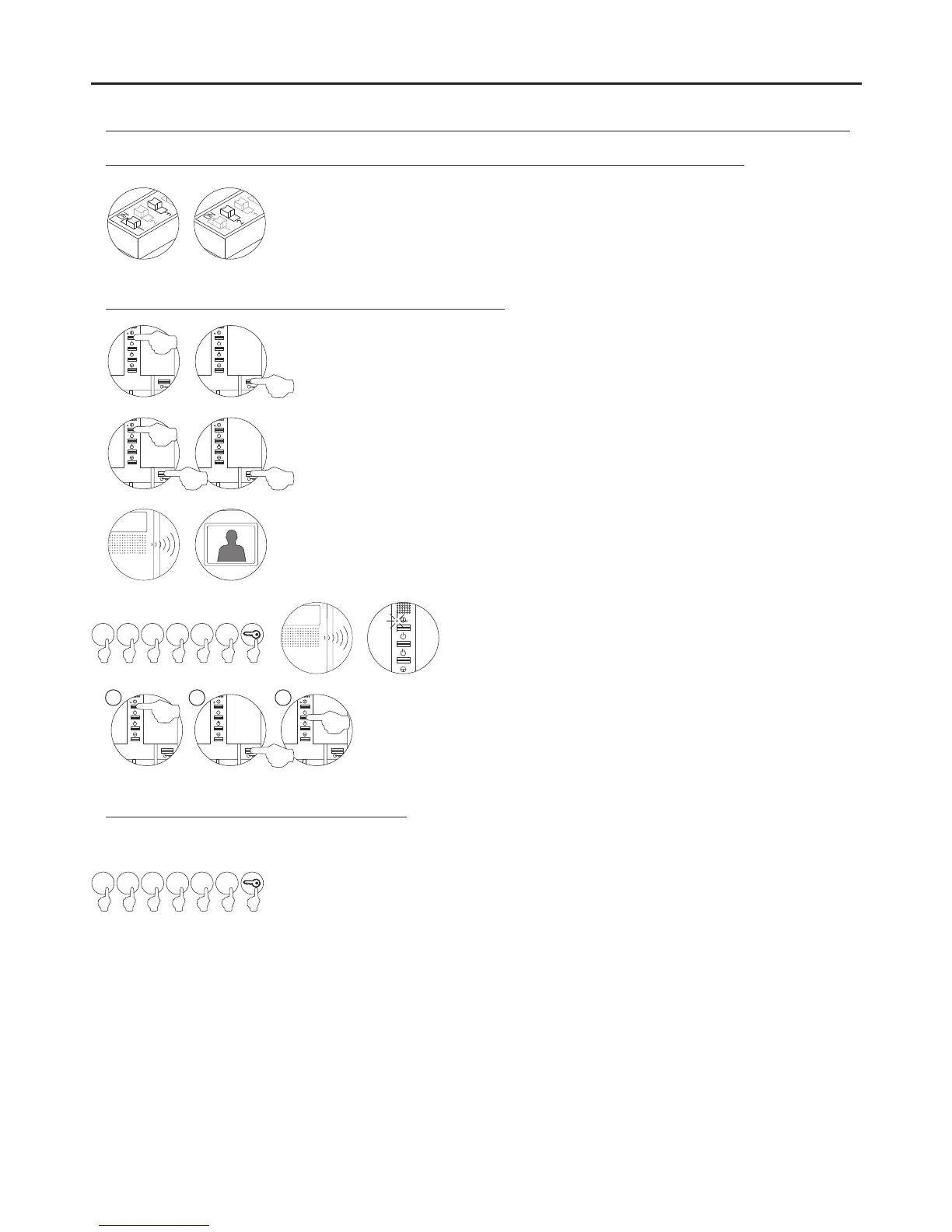

PROGRAMMING THE MONITORS - GENERAL ENTRANCE DOOR PANEL ONLY
Switch off the monitor to be programmed.
Once the telephone is off, press the door release push button.
With the door release push button pressed, switch on the monitor.
To show that the system is ready for programming, the door panel will reproduce a sound
and the picture will appears on the monitor. At this moment, the door release push button
can be released. Lift the handset to establish audio communication with the door panel.
Enter the code of the monitor to be programmed, followed by
the key button.
At this moment the door panel will reproduce a sound and
the monitor led will blink.
To programme the monitor as the , switch it off and on again.Master
To programme it as a , press the door release button.Slave
To programme it as a , press the () button.Slave with intercom
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the
other telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done,
the door panel will emit tones to indicate that the system is still in programming mode.
To programme the monitor from a inner door panel, see p. 96.
M S SI
52
97
Locate the SW2 DIP switch on the general entrance door panel situated on the top left-hand
side of the back of the sound module. With switch 1 OFF and switch 3 ON, set switch 2 to
ON: the general entrance door panel will emit a tone indicating that it has entered
programming mode.
In systems withmorethan one door panel,only carry outthis procedure on the main door panel.
Note: The call code from a general entrance door panel consists of the column or building code + the code of the
apartment to be programmed:
: 1 - 254Column
Apartment
:0 - 999
1100
521100
