4-20
Function Settings and Operations

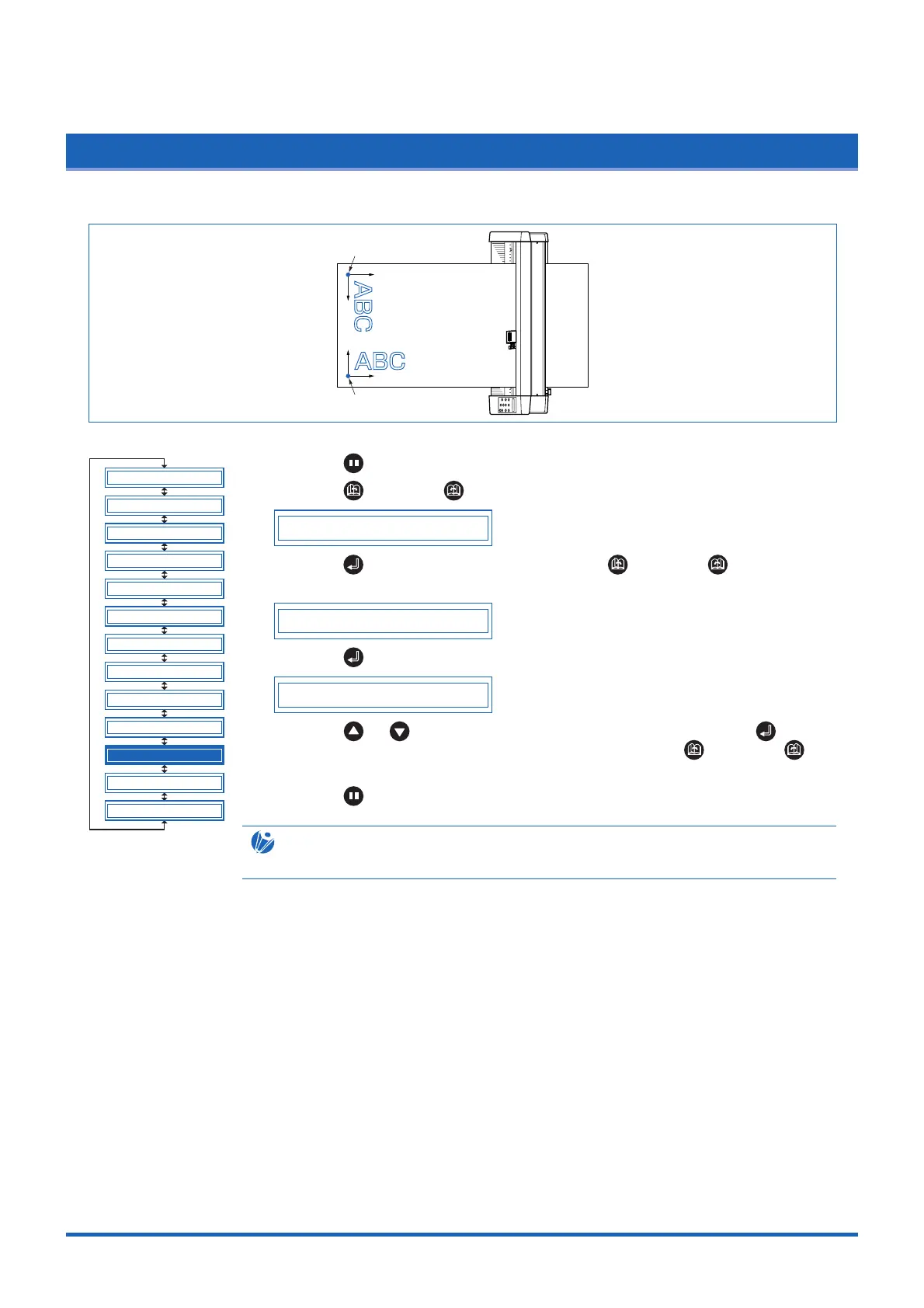

4.16 Rotating the Coordinate Axes
This function allows the cutting/plotting origin and coordinate axes to be rotated as shown below.
New origin
When axiscoordinate
rotation is "off"
When axis-coordinate
rotation is "on"
X
Y
Y
X
Origin
(1) Press the (PAUSE) key to switch to PAUSE mode.
(2) Press the (NEXT) or (PREV.) key until the following menu is displayed.
ADVANCED FUNC.
(3) Press the (ENTER) key, and then press the (NEXT) or (PREV.) key
until the following menu is displayed.
ROTATE
(4) Press the (ENTER) key to display the coordinate-axis rotation-setting menu.
ROTATE OFF
Press the or key to select "ON" or "OFF," and then press the
(ENTER) key to confirm. To cancel the selection, press the (NEXT) or
(PREV.) key.
(5) Press the (PAUSE) key to cancel PAUSE mode.
CHECKPOINT
This setting is retained in the memory even when the power is turned off.
BLADE WARE SETUP
CUT LINE PAT.
TANGENTIAL
INIT. B
PEN UP SPEED
INITIAL FEED
AUTO PRE FEED
SETUP MENU
TEST
FEED&CUT
PEN UP/DOWN
ADVANCED FUNC.
CLEAR BUFFER
To Next Page
