FC9000-UM-251-9370 12-4
12 Target electrical component for WEEE instruction
♦ How to remove the electrical component of the WEEE instruction

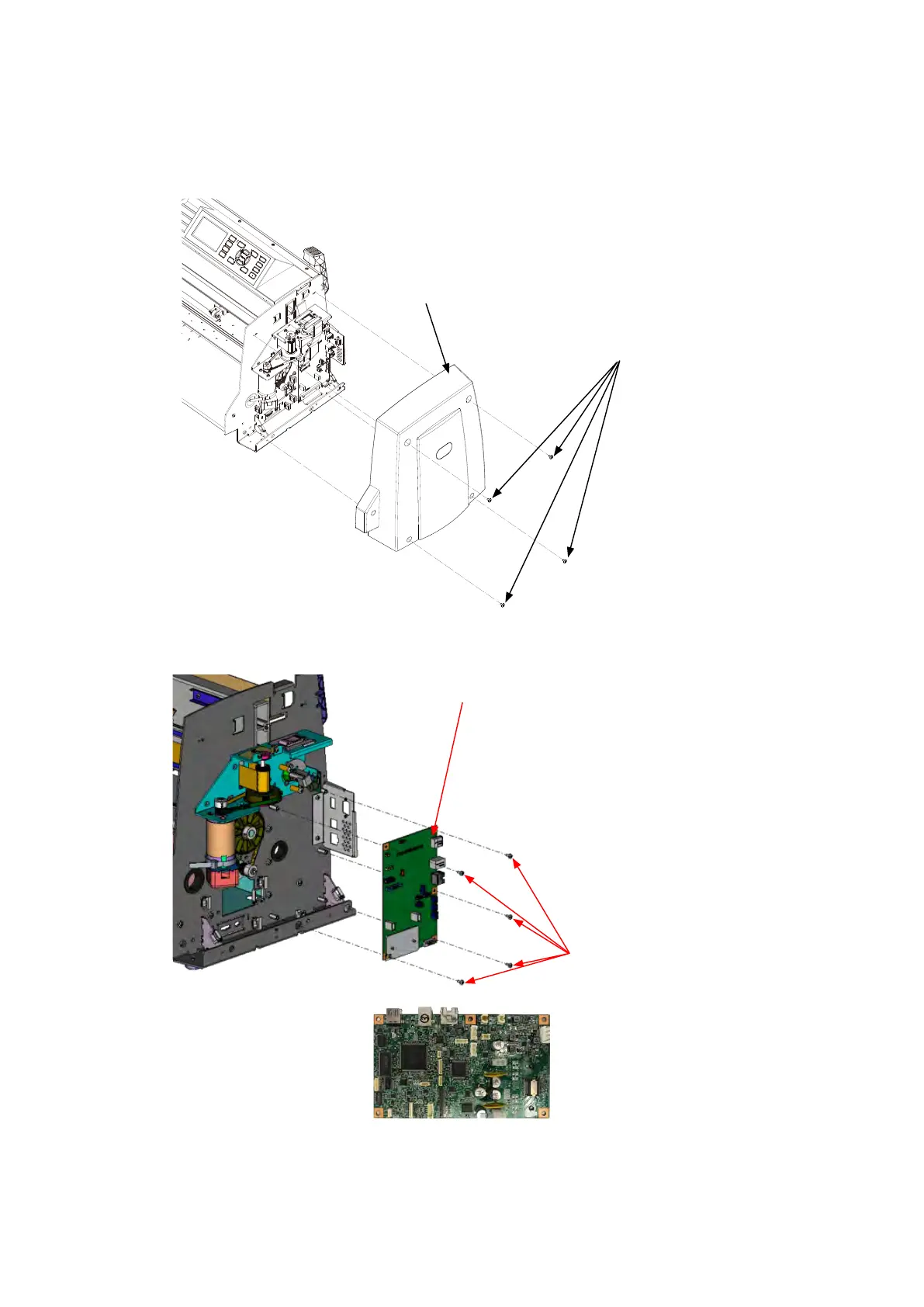

• Removing (A) Main Board
(1) Remove the four M4L6 binding head screws from the right side cover.
(2) Detach the right side cover.
M4L6 binding head screw
Right side cover
(3) Disconnect all the cables and exible cables from their connectors on the main board.
(4) Remove the four M3L6 binding head screws holding the main board.
M3L6 binding head screw
Main board
To Next Page
