GRAPHTEC FC9000-75 - Removing (B) Control Panel Board, (E) LCD

FC9000-UM-251-9370 12-5
12 Target electrical component for WEEE instruction
• Removing (B) Control Panel Board, (E) LCD

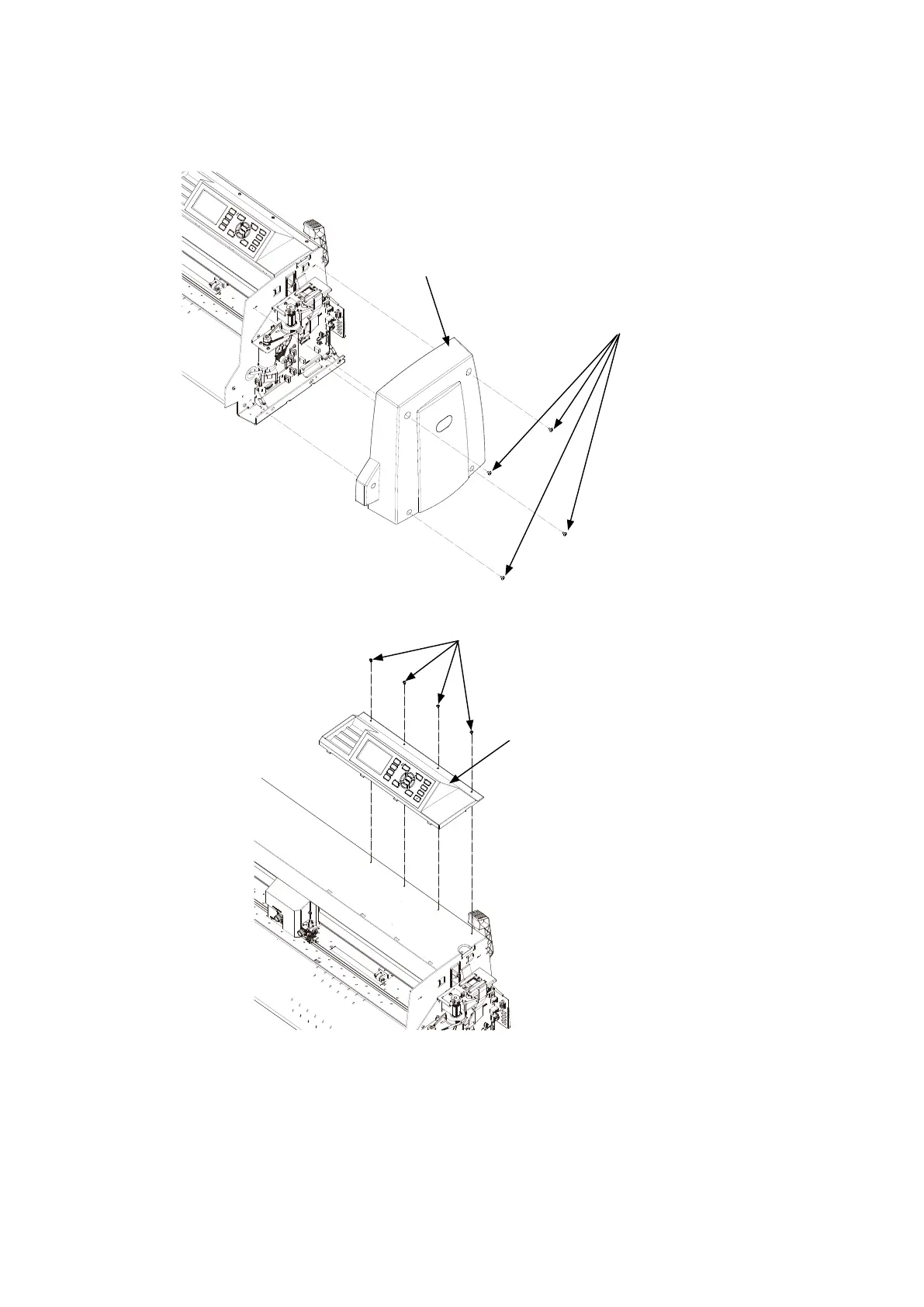

(1) Remove the four M4L6 binding head screws from the right side cover.
(2) Detach the right side cover.
M4L6 binding head screw
Right side cover
(3) Remove the four M3L6 binding head screws holding the control panel assembly.
M3L6 binding head screw
Control panel assembly
