• Removing (D) Switching Power Supply Unit

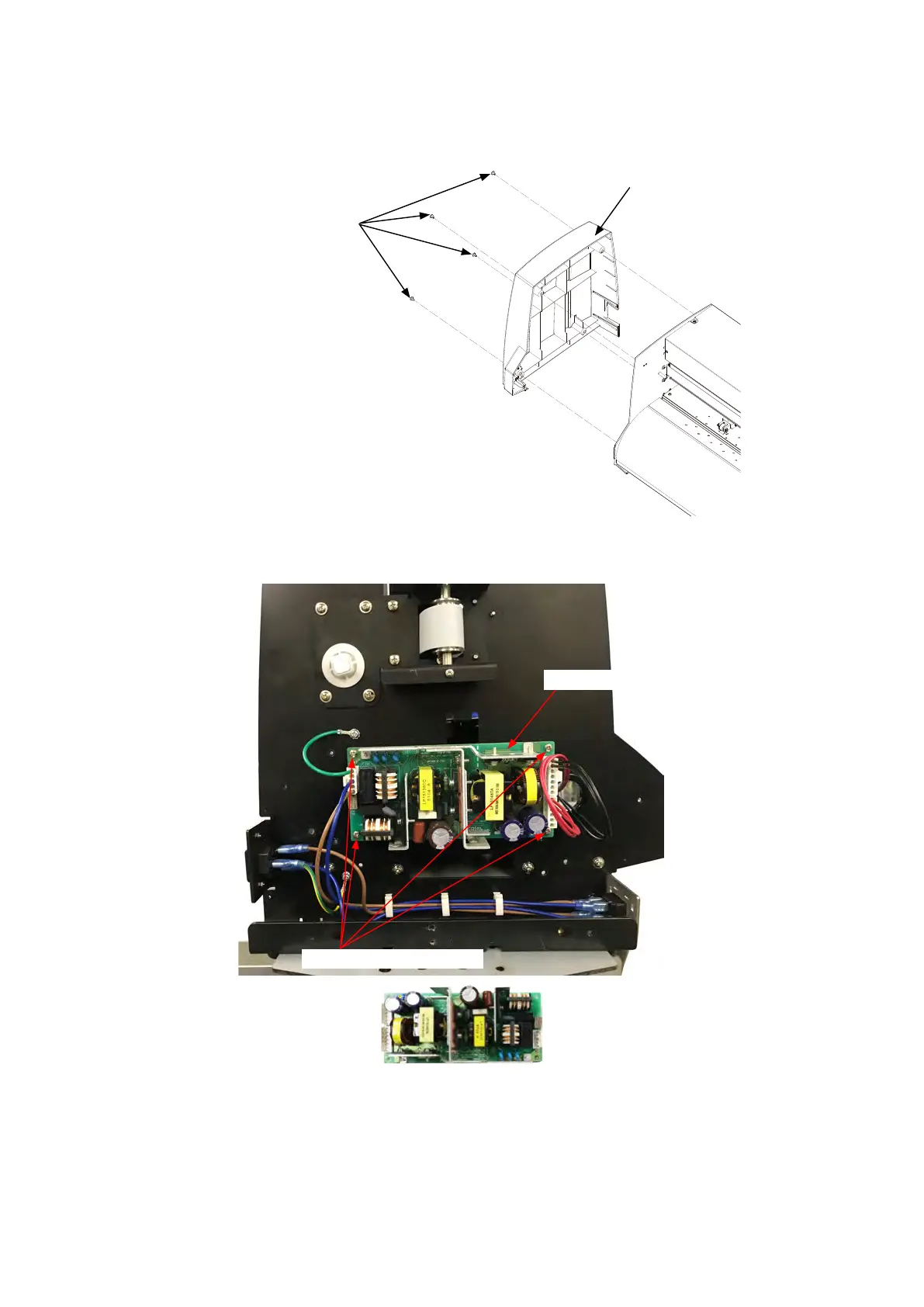

(1) Remove the four M4L6 binding head screws from the left side cover.
(2) Detach the left side cover.
M4L6 binding head screw
Left side cover
(3) Disconnect all cables from the power supply board.
(4) Remove the four M3L6 binding head screws holding the power supply board, and then detach it.
Power supply board
M3L6 binding head screw
