FC9000-UM-251-9370 12-9
12 Target electrical component for WEEE instruction

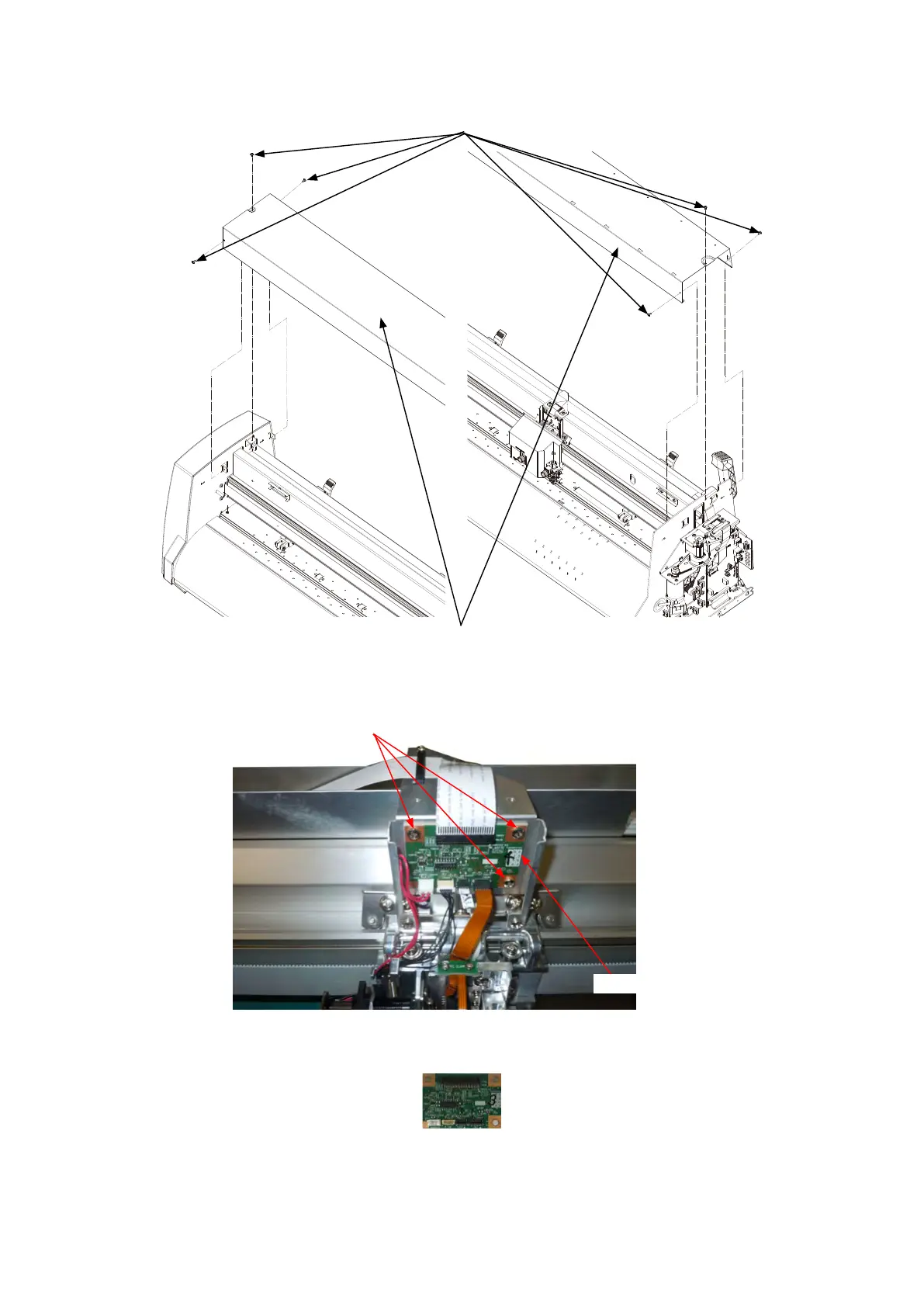

(5) Remove the six M3L6 binding head screws holding the center cover.
M3L6 binding head screw
Center cover
(6) Detach the center cover.
(7) Disconnect all the cables from the Y-relay board.
M3L6 binding head screw
Y relay board
(8) Remove the three M3L6 binding head screws attaching the Y-relay board.
(9) Detach the Y-relay board from the Y-slider.
To Next Page
