GREE U-Match 5 SERIES UNIT SERVICE MANUAL
48
Model:
GUD100W/NhA-X, GUD125W/NhA-X, GUD140W/NhA-X, GUD160W/NhA-X

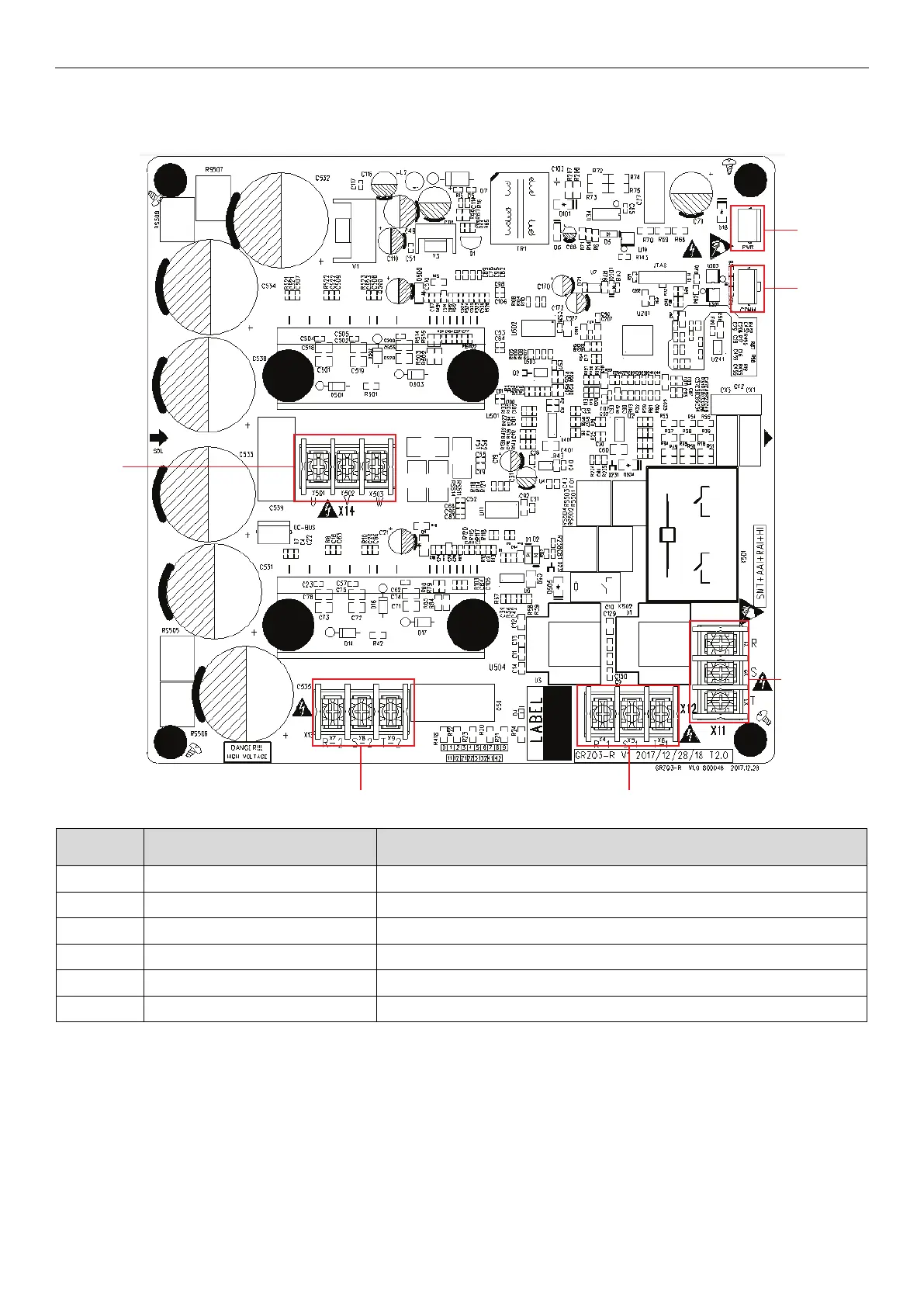

Drive Board:
No. Printing Interface
1 PWR Power supply busbar input terminal
2 X1/ X2/X3 Mainboard power supply 3-phase input terminal
3 X4/ X5/X6 Electric reactor 3-phase connection terminal (input terminal)
4 X7/ X8/X9 Electric reactor 3-phase connection terminal (output terminal)
5 X501/X502/X503 Compressor 3-phase connection terminal
6 COMM Communication interface
1
2
3
4
5
6
