-108-
Model G0750G (Mfg. Since 11/12)
Electrical Components Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 P0750G1201 TRANSFORMER WUXI JBK5-100VATH 1211 P4003G1211 POWER BUTTON HUILONG LA103
1202 P4003G1202 FUSE HOLDER 2A 1212 P4003G1212 JOG BUTTON HUILONG LA103
1202-1 P4003G1202-1 FUSE 2A 24V 0.31" X 1.25" 1213 P4003G1213 POWER LIGHT HUILONG XD103
1203 P4003G1202 FUSE HOLDER 5A 1214 P4003G1102 CONTROL PANEL PLATE
1203-1 P0750G1203-1 FUSE 5A 24V 0.31" X 1.25" 1215 P4003G1214 WORK LIGHT TERMINAL BLOCK 2P
1204 P4003G1204-1 RELAY TIANSHUI JRS4-09/25D 110V 1216 P4003G1215 HALOGEN WORK LIGHT
1205 P4003G1205 CONTACTOR TIANSHUI GSC1-1801 110V 1216-1 P4003G1215-1 WORK LIGHT CORD 22G 2W 24"
1206 P4003G1206 CONTACTOR TIANSHUI JZC3-40D 110V 1216-2 P4003G1215-2 CONDUIT 1/2" X 56"
1207 P4003G1207 GROUND TERMINAL BLOCK 6T 1216-3 PBULB4 HALOGEN BULB OSRAM 24V 70WT
1208 P4003G1208 TERMINAL BAR 6P 1217 P0750G1217 ELECTRICAL BOX
1209 P4003G1209 TERMINAL BAR 10P 1218 P0750G1218 ELECTRICAL MOUNTING PLATE
1210 P4003G1210 E-STOP BUTTON HUILONG LA103 1219 P0750G0331 LIMIT SWITCH

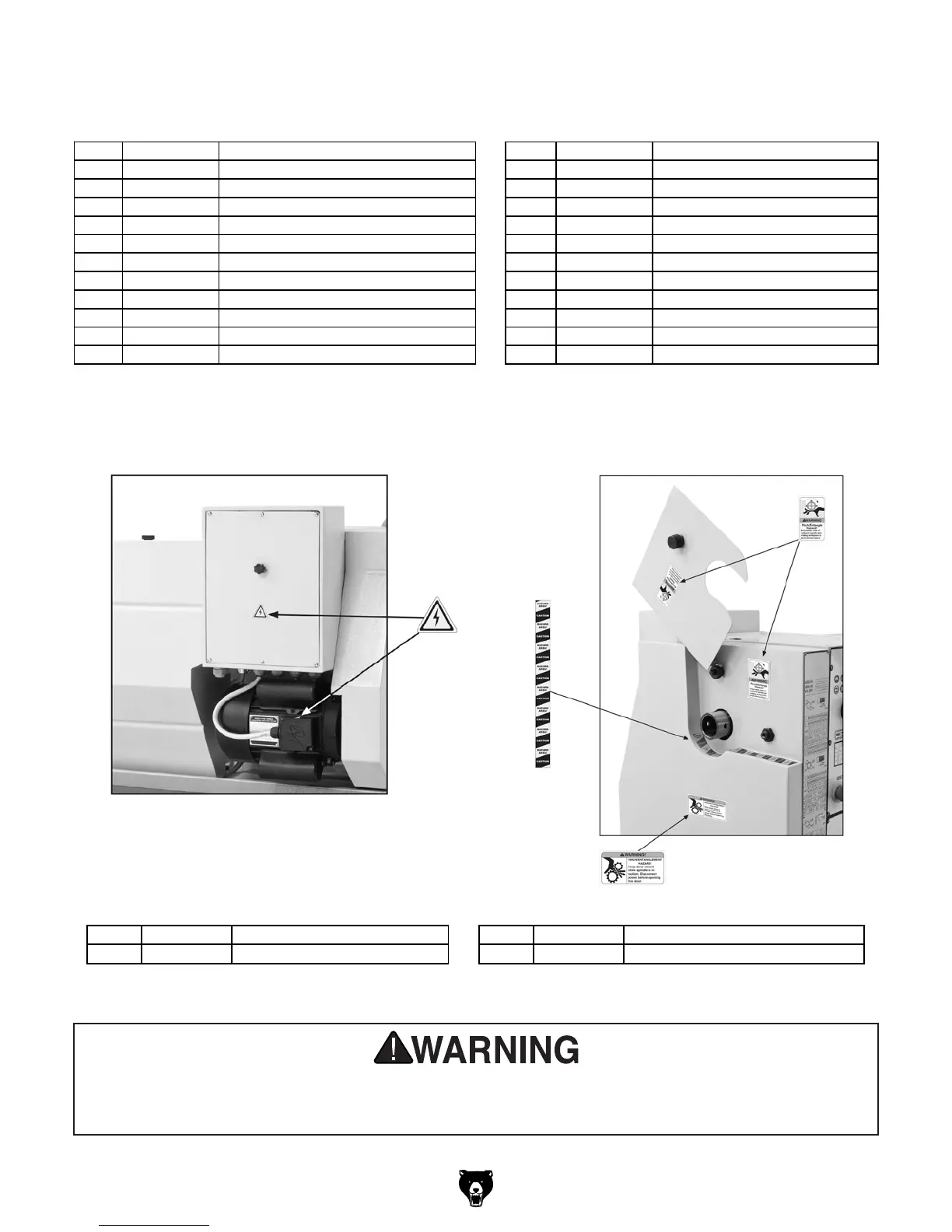

Rear & Side Machine Labels
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
1319
1320
1321
1322
G0750G Machine Labels C
(11/19/12)
• Label is actual size
• Label must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY!
All labels created by Grizzly Industrial, Inc. are
copyrighted and must only be used on Grizzly brand machines. Never use Grizzly’s label
artwork on other brands of machines.
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Pinch/Entangle
Hazard!
Keep hands clear of
outboard spindle and
rotating workpiece to
avoid serious injury.
Keep door closed
while spindle is in
motion. Disconnect
power before opening
this door.
PINCH/ENTANGLEMENT
HAZARD!
G0750G
REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND
AMOUNT.
CHECK OIL
LEVELS BEFORE USING!
G0750G Machine Labels C
(11/19/12)
• Label is actual size
• Label must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY!
All labels created by Grizzly Industrial, Inc. are
copyrighted and must only be used on Grizzly brand machines. Never use Grizzly’s label
artwork on other brands of machines.
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Pinch/Entangle
Hazard!
Keep hands clear of
outboard spindle and
rotating workpiece to
avoid serious injury.
Keep door closed
while spindle is in
motion. Disconnect
power before opening
this door.
PINCH/ENTANGLEMENT
HAZARD!
G0750G
REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND
AMOUNT.
CHECK OIL
LEVELS BEFORE USING!
G0750G Machine Labels C
(11/19/12)
• Label is actual size
• Label must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY!
All labels created by Grizzly Industrial, Inc. are
copyrighted and must only be used on Grizzly brand machines. Never use Grizzly’s label
artwork on other brands of machines.
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
HAZARD
AREA!
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Pinch/Entangle
Hazard!
Keep hands clear of
outboard spindle and
rotating workpiece to
avoid serious injury.
Keep door closed
while spindle is in
motion. Disconnect
power before opening
this door.
PINCH/ENTANGLEMENT
HAZARD!
G0750G
REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND
AMOUNT.
CHECK OIL
LEVELS BEFORE USING!
G0750G Machine Labels B
(11/19/12)
• Label is actual size
• Label must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
Remove chuck key
and all adjustment
tools before starting
lathe.
IMPACT INJURY
HAZARD!
WARNING!
ENTANGLEMENT
HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.
DISCONNECT
POWER BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.
EYE/FACE
INJURY HAZARD!
Always wear safety
glasses and a face
shield when using
this machine.
READ and UNDERSTAND
instruction manual to
avoid serious injury. If a
manual is not available,
DO NOT use machine. Go
to www.grizzly.com or
call (800) 523-4777.
WARNING!
Loosen carriage
lock bolt before
using carriage
auto-feed.
Using a spindle speed
that is too fast for the
chuck or an installed
workpiece can result
in serious impact
injuries or death! Use
slow spindle speeds
with large or bulky
workpieces. Never
exceed RPM rating of
chuck.
SPINDLE SPEED
HAZARD!
Only trained and properly
supervised personnel are
allowed to operate this
machine. If safe operation
procedures are not clearly
understood, request
additional training from a
supervisor before
beginning operation.
ONLY move levers while lathe is completely
stopped. Never force levers when shifting.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1319 PLABEL-14 ELECTRICITY LABEL 1321 P07091611 SPIDER ENTANGLEMENT LABEL
1320 P0750G1320 HAZARD AREA-CAUTION LABEL 1322 P0750G1322 END GEAR ENTANGLEMENT LABEL
