Grizzly G0750G User Manual

-106-
Model G0750G (Mfg. Since 11/12)

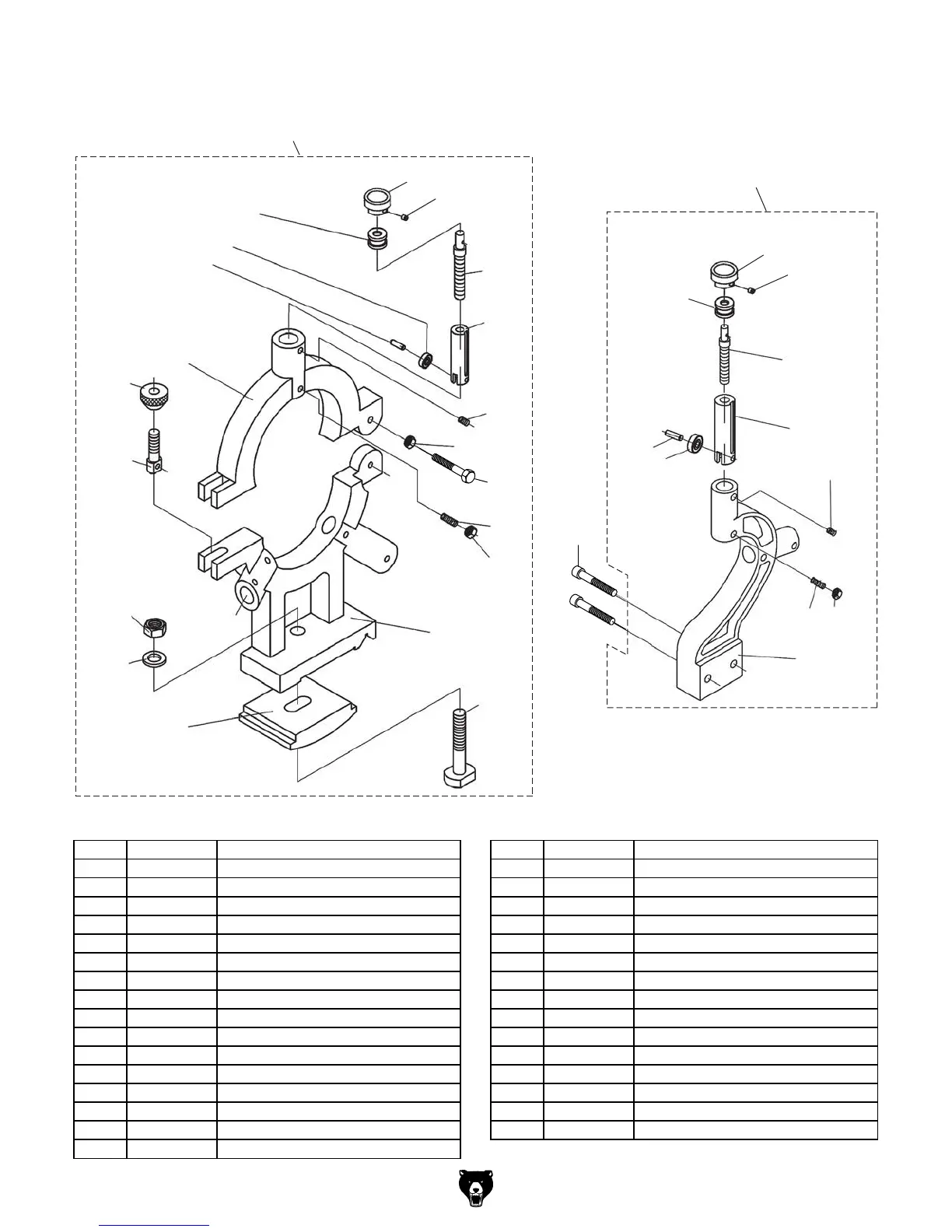

Steady & Follow Rest Assemblies
1000
1001
1002
1003
1004
1005
1006
1006
1007
1008
1009
1010
1011
1012
1013
1015
1016
1017
1018
1019
1020
1100
1101
1105
1106
1108
1118
1119
1121
1103
1120
1102
1123
1122
REF PART # DESCRIPTION REF PART # DESCRIPTION
1000 P07090824 STEADY REST ASSY 1018 P07090818 DOWEL PIN 5 X 16
1001 P07090801 FINGER KNOB 1019 G3848 BEARING 16MM X 5MM 625ZZ
1002 PSS119M SET SCREW M6-1 X 6 CONE POINT 1020 P07090820 COLLAR
1003 P07090803 FINGER ADJUSTMENT SCREW 1100 P07090825 FOLLOW REST ASSY
1004 P07090804 FINGER SLIDE 1101 P07090801 FINGER KNOB
1005 PSS03M SET SCREW M6-1 X 8 1102 PSS119M SET SCREW M6-1 X 6 CONE POINT
1006 PN01M HEX NUT M6-1 1103 P07090803 FINGER ADJUSTMENT SCREW
1007 PB29M HEX BOLT M6-1 X 30 1105 PSS02M SET SCREW M6-1 X 6
1008 PSS121M SET SCREW M6-1 X 16 PILOT POINT 1106 PN01M HEX NUT M6-1
1009 P07090809 LOWER STEADY REST CASTING 1108 PSS121M SET SCREW M6-1 X 16 PILOT POINT
1010 P07090810 T-BOLT M12-1.75 X 75 1118 P07090818 DOWEL PIN 5 X 16
1011 P07090811 CLAMP BLOCK 1119 G3848 BEARING 16MM X 5MM 625ZZ
1012 PW06M FLAT WASHER 12MM 1120 P07090820 COLLAR
1013 PN09M HEX NUT M12-1.75 1121 P07090804 FINGER SLIDE
1015 P07090815 PIVOT STUD 1122 P07090822 FOLLOW REST CASTING
1016 P07090816 KNURLED THUMB KNOB M10-1.5 1123 PCAP40M CAP SCREW M8-1.25 X 35
1017 P07090817 UPPER STEADY REST CASTING
