Model G0750G (Mfg. Since 11/12)
Identification
A. Headstock
B. D1-5 Camlock MT#5 Spindle
C. 3-Jaw Chuck 6"
D. Steady Rest
E. Halogen Work Lamp
F. Follow Rest
G. Quick-Change Tool Post
H. Compound Rest
I. Cross Slide
J. Tailstock (see Page 6 for details)
K. Longitudinal Leadscrew
L. Feed Rod
M. Control Rod
N. Storage Cabinet
O. Stand Mounting Points
P. Carriage (see Page 5 for details)
Q. Chip Tray
R. Quick-Change Gearbox
S. Headstock Controls (see Page 5 for details)
Serious personal injury could occur if
you connect the machine to power before
completing the setup process. DO NOT
connect power until instructed to do so
later in this manual.
Untrained users have an increased risk
of seriously injuring themselves with this
machine. Do not operate this machine until
you have understood this entire manual
and received proper training.

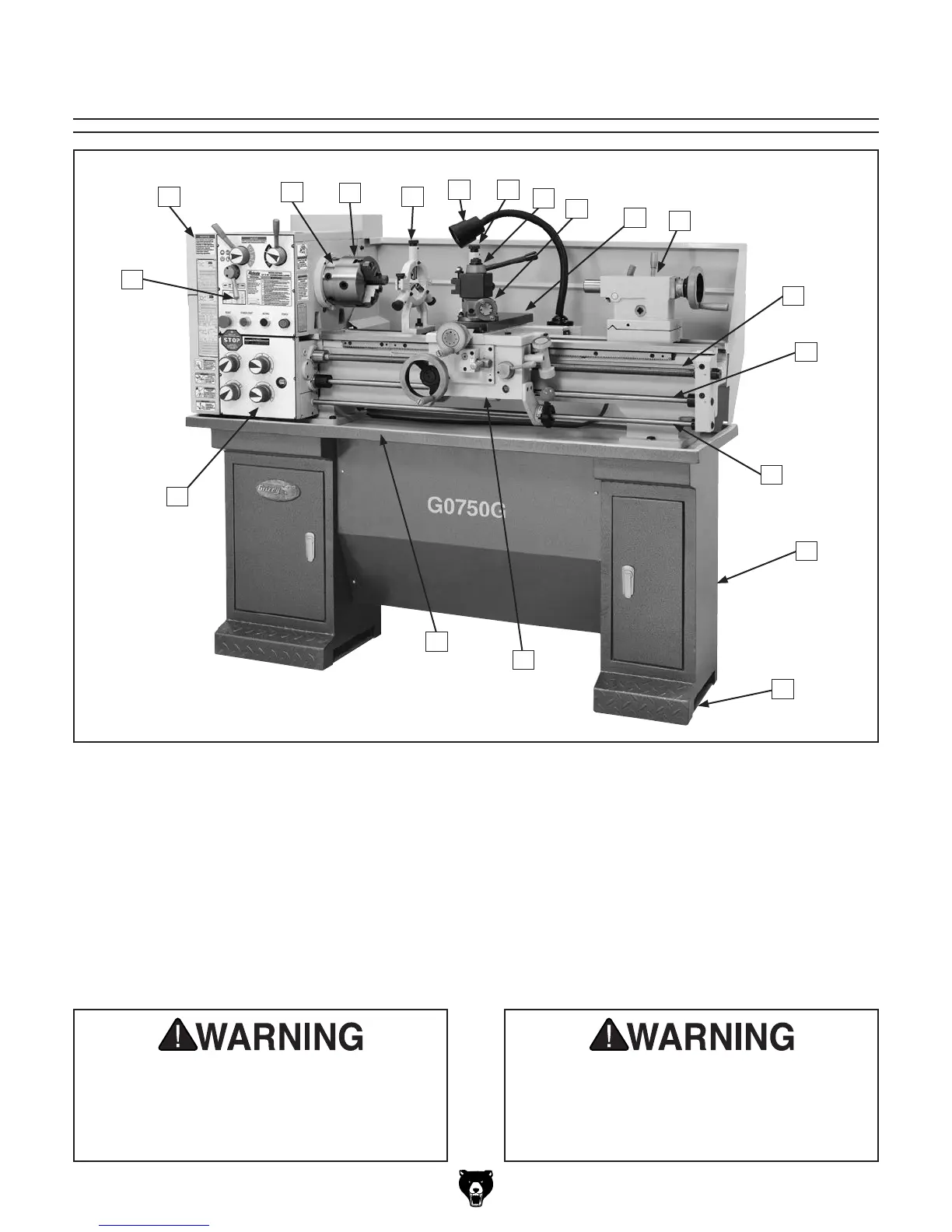

Figure 1. Model G0750G identification.
