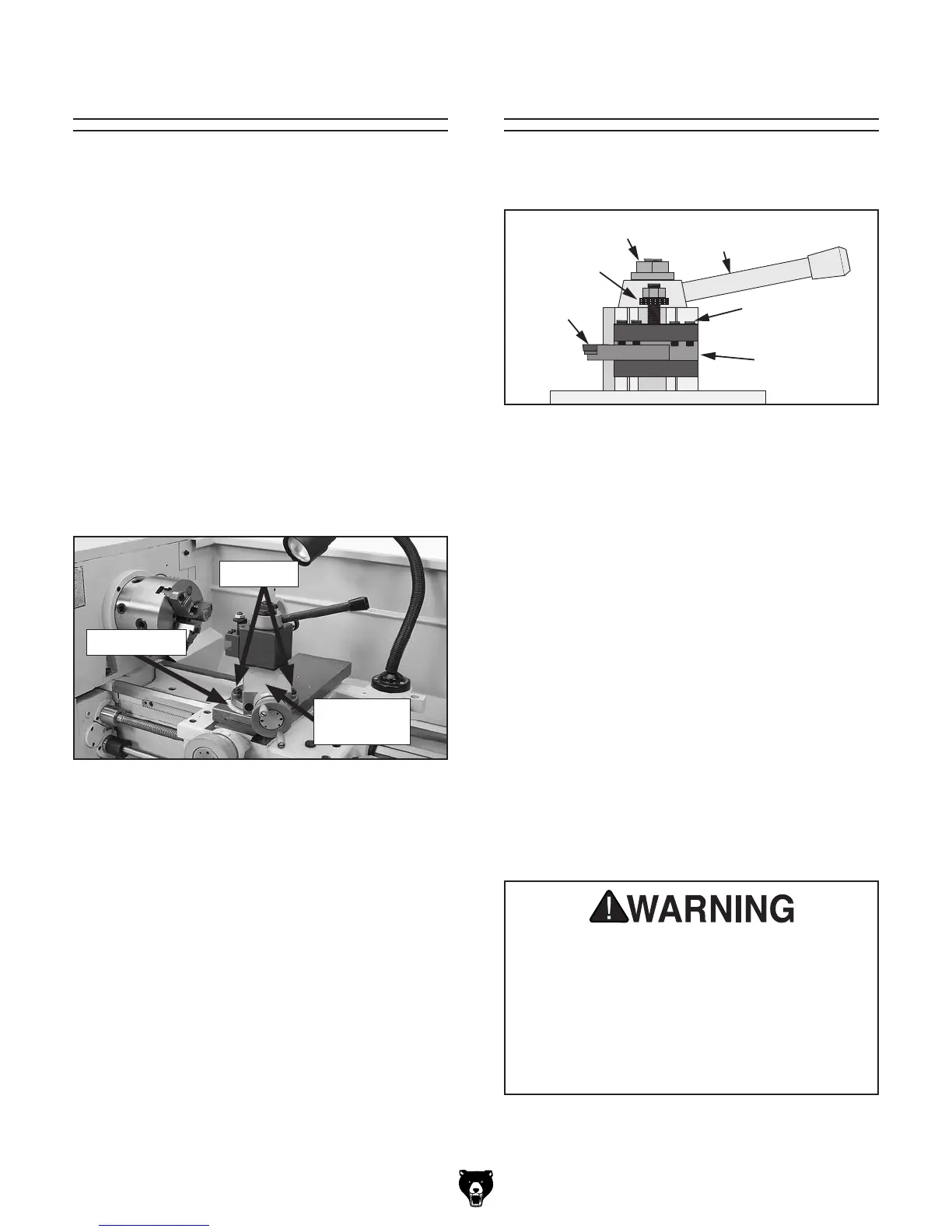

Grizzly G0750G User Manual

-44-
Model G0750G (Mfg. Since 11/12)
The quick-change tool post (see Figure 58) is a
200-series design.
Figure 58. Example of tool mounted in tool post.
Cutting
Tool
Tool Post
Set Screw
Tool Holder
Thumb
Wheel
Top Nut
Lock Lever
2. Rotate the rest to the desired angle, as indi-
cated by the scale at the base, then retighten
the two hex nuts.
Tip: The first time you set the angle of the
compound rest for cutting threads, mark the
location on the cross slide as a quick refer-
ence point. This will allow you to quickly
return the compound rest to that exact angle
the next time you need to cut threads.
The compound rest handwheel has an indirect-
read graduated scale. This means that the dis-
tance shown on the scale represents the actual
distance the cutting tool moves. The base of the
compound rest has another graduated scale used
for setting the cutting tool to a specific angle.
Graduated Dial
Increments ................................. 0.001" (0.02mm)
One Full Revolution ................... 0.100" (2.54mm)
Tool Needed Qty
Wrench 14mm ................................................... 1
To set the compound rest at a certain angle:
1. Loosen the two hex nuts at the base of the
compound rest (1 of 2 shown in Figure 57).
Figure 57. Compound rest.
Compound Rest Tool Post
Angle Scale
Hex Nuts
Compound
Rest
Over-extending a cutting tool from the post
will increase risk of tool chatter, breakage,
or tool loosening during operation, which
could cause metal pieces to be thrown at
the operator or bystanders with great force.
DO NOT extend a cutting tool more than 2.5
times the width of its cross-section (e.g.,
2.5 x 0.5" = 1.25").
Tool holders can be quickly loaded and unloaded
using the lock lever. Tools up to
5
⁄8" can be
secured by tightening the tool holder set screws.
The thumb wheel rotates to adjust cutting tool
height. The tool post is rotated by loosening the
top nut.
Installing Tool
Tool Needed Qty
Open-End Wrench/Socket 27mm ...................... 1
Hex Wrench Size ......................................... 5mm
To install a tool in the tool post:
1. Position the tool in the holder so the cutting
edge extends just enough to allow the tool
to cut freely—but no more. The cutting edge
must be well supported to ensure good cut-
ting results and avoid chipping.
