-88-
Model G0750G (Mfg. Since 11/12)
READ ELECTRICAL SAFETY
ON PAGE 82!
Additional Component Wiring
Power Connection Wiring
Hot
Hot
Ground
6-15 Plug
(As Recommended)
220
VAC
G
L
N
Work Lamp
Junction Block
To Electrical
Cabinet
Page 84
To Electrical
Cabinet
Page 84
To Electrical Cabinet
Page 84

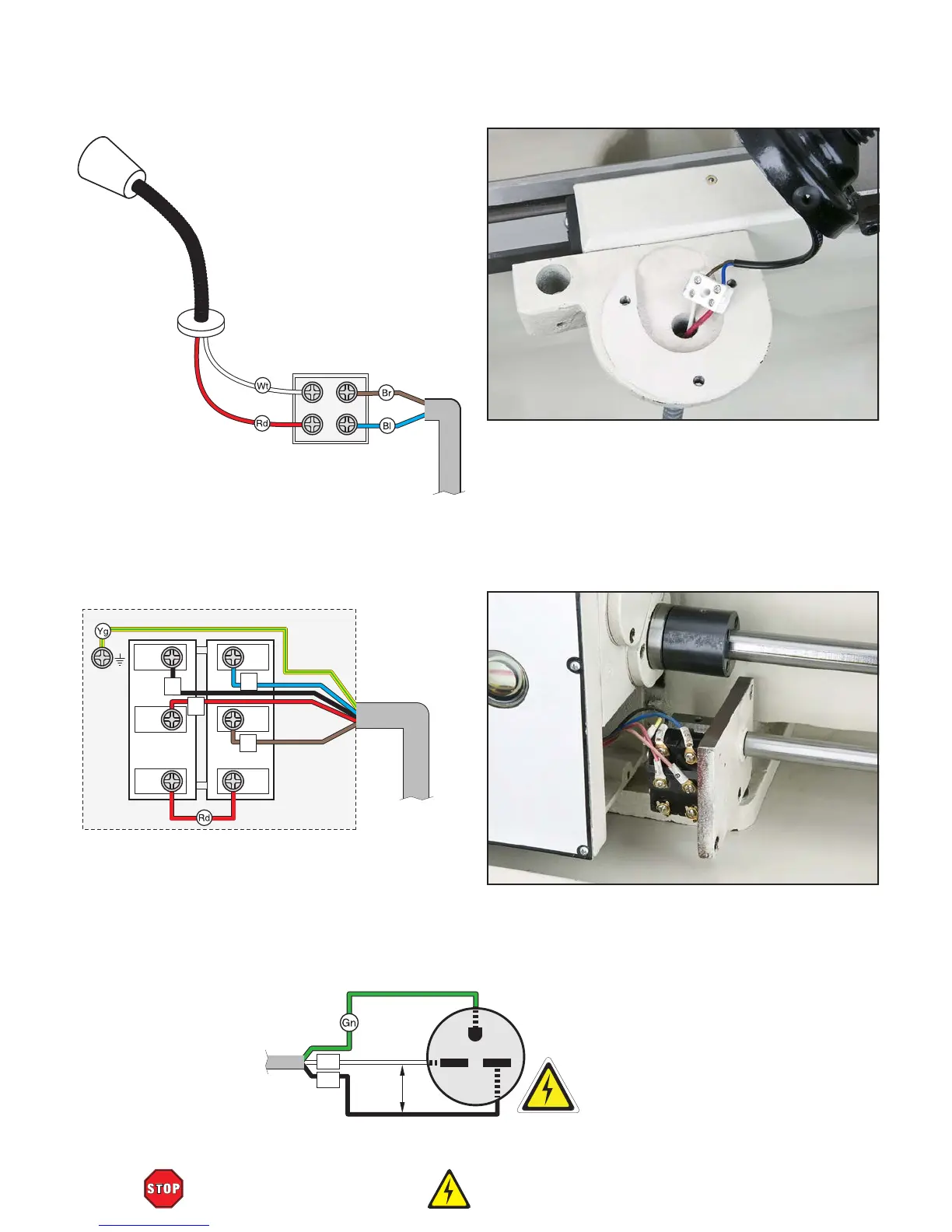

Figure 149. Work lamp wiring.
Figure 150. Spindle ON/OFF rotation switch.
Spindle Rotation Switch
C
C
NO NO
NC
NC
4
5
7
6
