Model G0750G (Mfg. Since 11/12)
-37-

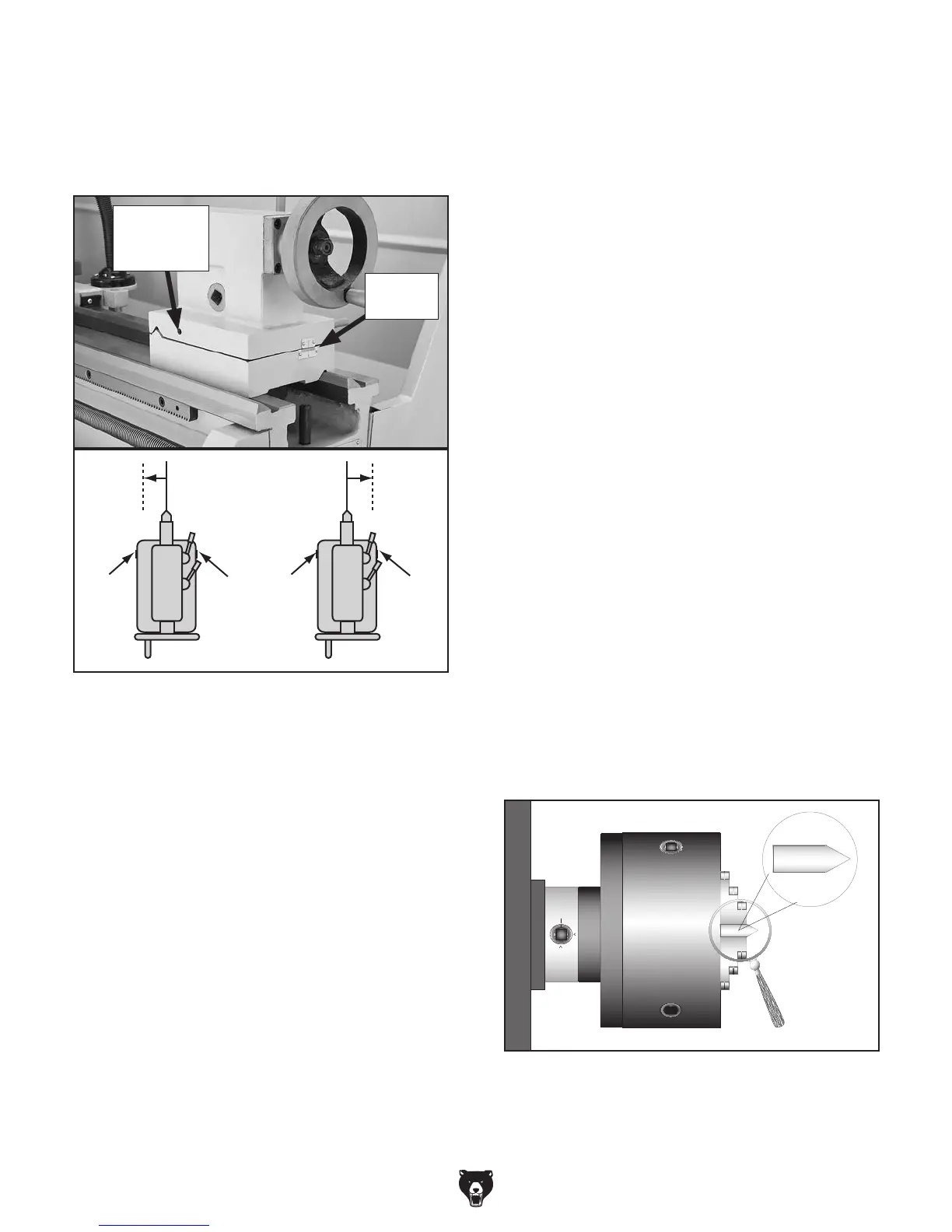

Aligning Tailstock to Spindle
Centerline
This is an essential adjustment that should be ver-
ified or performed each time the tailstock is used
to turn concentric workpieces between centers
or immediately after offsetting the tailstock when
turning a taper. If the tailstock is not aligned with
the spindle centerline when it is supposed to be,
turning results will be inaccurate along the length
of the workpiece.
Items Needed Qty
Hex Wrench 4mm .............................................. 1
Round Stock 2" x 6" .......................................... 2
Precision Level .................................................. 1
Figure 43. Turning a dead center.
To align the tailstock to the spindle center-
line:
1.
Use the precision level to make sure the bed-
way is level from side to side and from front
to back.
If the bedway is not level, correct this con-
dition before continuing with this procedure
(refer to the Leveling & Mounting
section
in this manual).
2.
Center drill both ends of one piece of round
stock, then set it aside for use in Step 5.
3.
Use the other piece of round stock to make
a dead center, and turn it to a 60° point, as
illustrated in the Figure below.
To offset the tailstock:
1. Rotate the adjustment set screws (shown in
Figure 42) in the opposite directions for the
desired offset.
Turn
CCW
Turn
CCW
Turn
CW
Turn
CW
Figure 42. Set screw adjustment in relation to
tailstock movement.
Offset
Indicator
Adjustment
Set Screw
(1 of 2)
