Grizzly G0750G User Manual

-86-
Model G0750G (Mfg. Since 11/12)
READ ELECTRICAL SAFETY
ON PAGE 82!

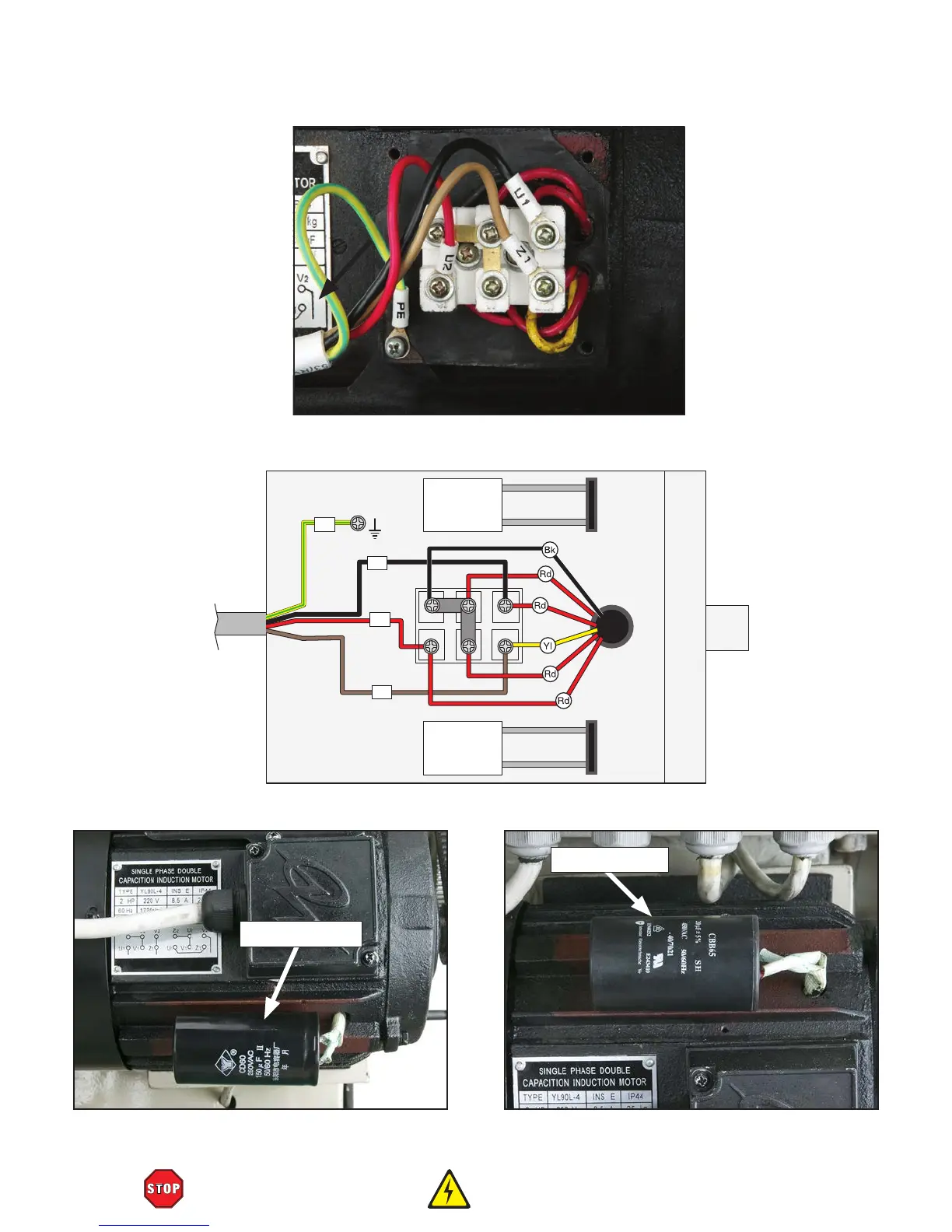

Motor Wiring
PE
Start
Capacitor
150MFD
250VAC
Run
Capacitor
20MFD
450VAC
U1 V1 W1
W2
V2U2
U1
U2
Z1
Motor
Ground
Figure 145. Spindle motor junction box.
To Electrical
Cabinet
Page 84
Figure 146. Start capacitor. Figure 147. Run capacitor.
Run Capacitor
Start Capacitor
