Grizzly G0750G User Manual

Model G0750G (Mfg. Since 11/12)
-17-
Inventory
V. Hex Wrenches 2, 4, 5, 6, 8, 10 mm....... 1 ea
W. Wrenches 9/11, 10/12, 12/14, 17/19 mm 1 ea
X. Handwheel Handles ................................... 2
Y. Drill Chuck B16 1.5-13mm .......................... 1
Z. Cabinet Base Fasteners:
—Hex Bolts M12-1.75 x 40 ......................... 6
—Flat Washers 12mm ................................ 6
—Phillips Head Screws M6-1 x 10 ........... 12
—Cap Screws M6-1 x 10 ........................... 4
—Hex Nuts M6-1 ........................................ 4
—Flat Washers 6mm ............................... 12
AA. Drill Chuck Key ........................................... 1
AB. Phillips & Standard Screwdrivers #2 ..... 1 ea
AC. Spider Screws ............................................ 4
AD. Camlock Studs (6 Installed) ....................... 6
AE. Cap Screw M6-1 x 14 (6 Installed) ............. 6
Main Components (Figure 9) Qty.
A. 6" Three-Jaw Chuck w/2-Piece Jaws ......... 1
B. Steady Rest ................................................ 1
C. Follow Rest ................................................. 1
D. Quick-Change Tool Post ............................ 1
E. Backsplash ................................................. 1
Base Components (Figure 10) Qty.
F. Cabinets (Left & Right) ............................... 2
G. Front Panel Brackets (Left & Right) ............ 2
H. Front Panel ................................................. 1
I. Chip Tray .................................................... 1
Loose Components (Figure 11)
J. 8" Four-Jaw Universal Chuck ..................... 1
K. 10" Faceplate .............................................. 1
L. Bottle for Oil ............................................... 1
M Tool Box...................................................... 1
N. 3- & 4-Jaw Chuck, Spindle Wrench ...... 1 ea
O. Change Gear Set ....................................... 1
—Change Gear (30-tooth).......................... 1
—Change Gear (54-tooth) .......................... 1
—Change Gear (57-tooth) .......................... 1
—Change Gear (60-tooth, 1-Installed) ....... 2
—Gear (56-tooth) ....................................... 1
—Gear (63-tooth) ....................................... 1
—Gear (66-tooth) ....................................... 1
—Gear (69-tooth) ....................................... 1
—Gear (78-tooth) ....................................... 1
—Gear (120/127-tooth, Installed) ................ 1
P. Quick-Change Tool Holder ......................... 1
Q. Tapered Spindle Sleeve MT#5-#3 .............. 1
R. Arbor B16 to MT#3 ..................................... 1
S. Standard Dead Center MT#3 ..................... 1
T. Carbide-Tipped Dead Center MT#3 ........... 1
U. Live Center MT#3 ....................................... 1
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE: If you cannot find an item on this list,
carefully check around/inside the machine and
packaging materials. Often, these items get lost in
packaging materials while unpacking or they are
pre-installed at the factory.

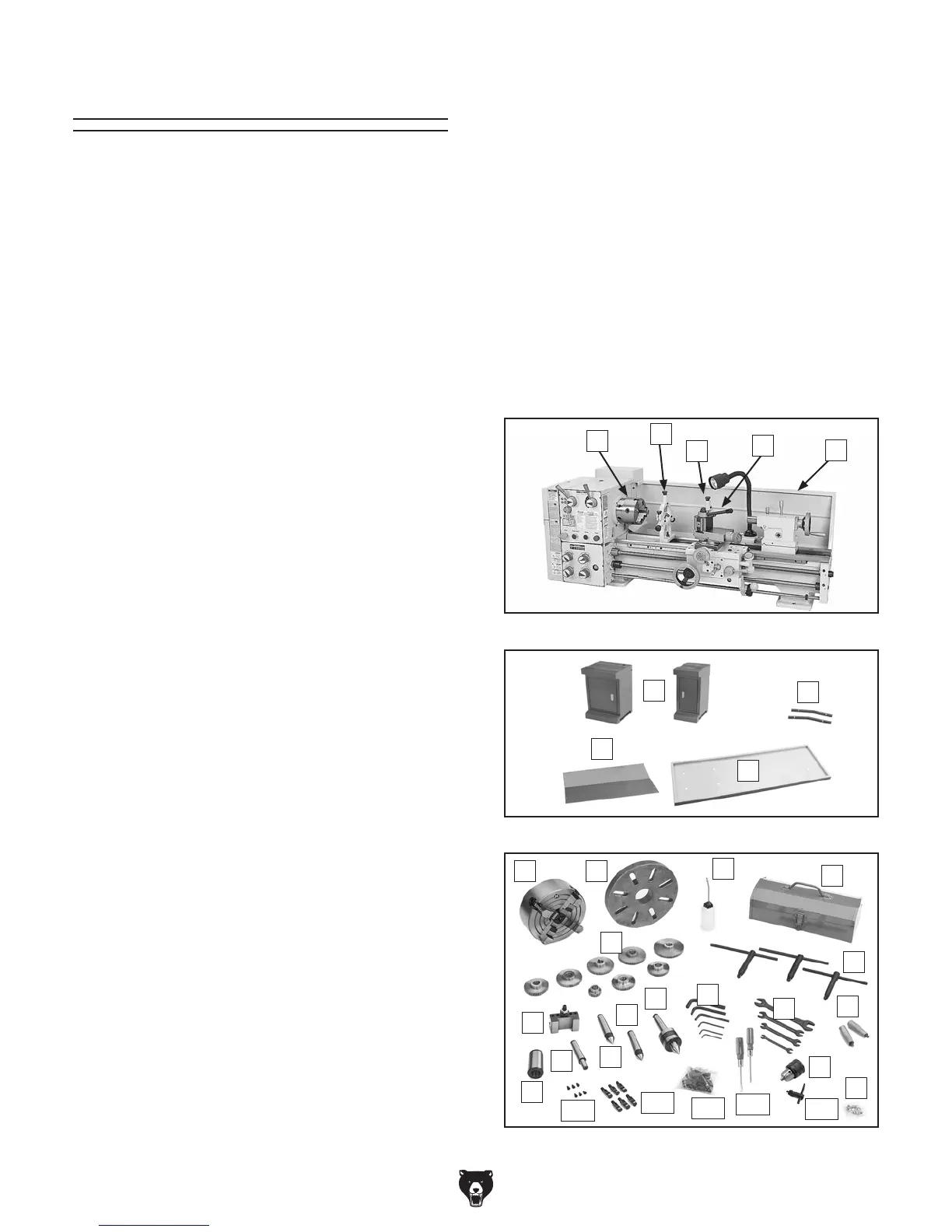

Figure 9. Main components.
D
C
B
A
E
Figure 11. Packaged components.
L
J
M
K
T
U
R
S
Q
X
W
V
O
P
N
Y
Z
AA
AB
AC
AD
AE
H
F
I
G
Figure 10. Base components.
(Left)
(Right)
