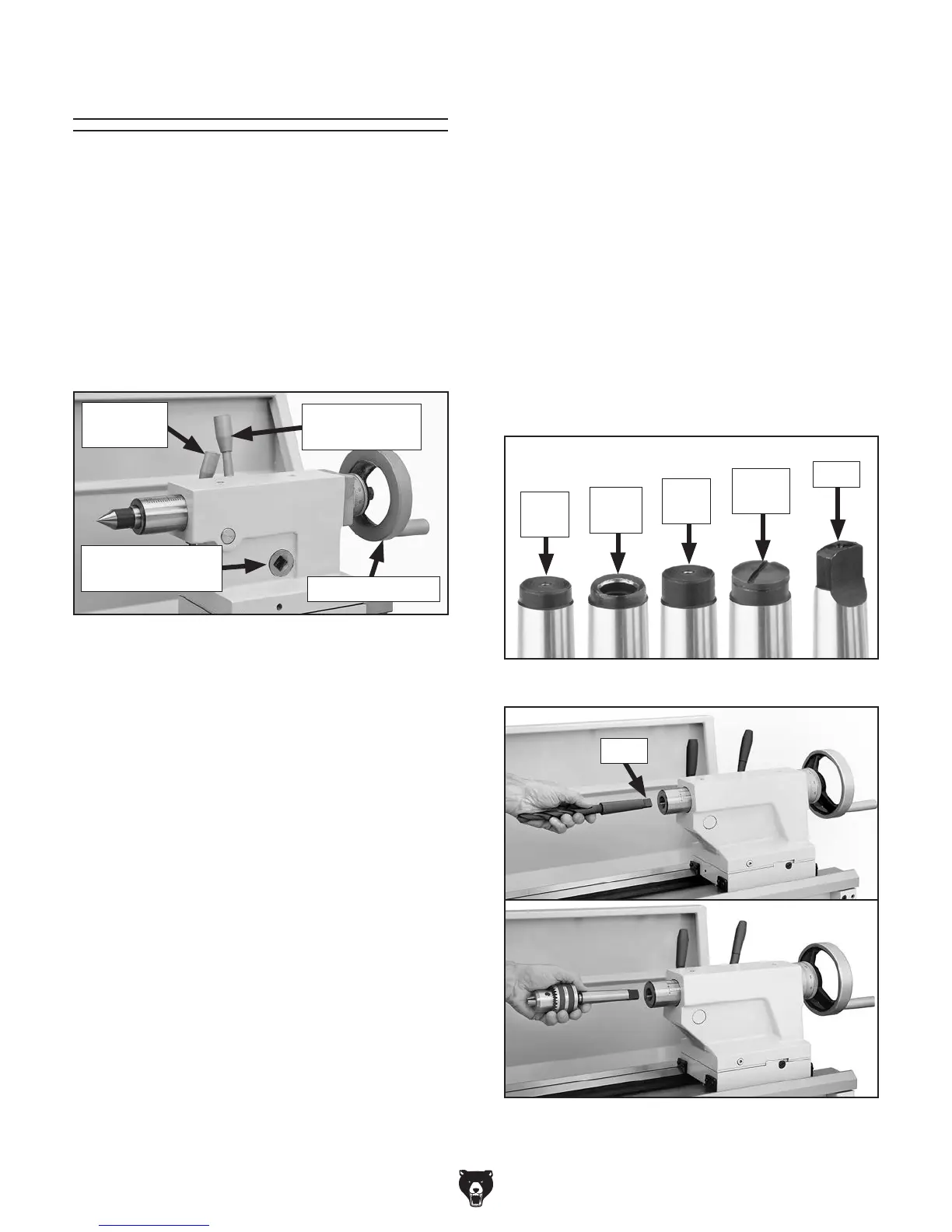

Tailstock
Installing Tooling
Using Quill
1. Move the quill lock lever away from the spin-
dle to unlock the quill.
2.
Turn the quill handwheel clockwise to move
the quill toward the spindle or counterclock-
wise to move it away from it.
3.
Move the lock lever toward the spindle to
secure the quill in place.
This tailstock uses a quill with an MT#3 taper that
has
a lock slot in the back of the bore that accept
s
tang
arbors and drill bits (see the Figures
below
for examples).
Figure 40. Example photos of inserting tools
with tangs into the tailstock.
Tang
The tailstock (see Figure 38) is typically used to
support long workpieces by means of a live or
dead center (refer to Centers on Page 75 in the
following section). It can also be used to hold a
drill or chuck to bore holes in the center of a part.
Custom arbors and tapers can also be cut on your
lathe by using the offset tailstock adjustment.
Also, a torque wrench can be used with the
tailstock for repeating super-accurate vertical
alignment.
Figure 38. Tailstock and quill lock levers in
locked position.
1
⁄2" Square Drive
Lock-Down
Graduated Dial
Increments ................................................. 0.001"
One Full Revolution ................................... 0.100"
Increments on Quill
Inch ...........................0"–4 " in 0.100" Increments
Positioning Tailstock
1. Pull the tailstock lock lever backward (away
from the spindle) to unlock the tailstock from
the bedway.
2. Slide the tailstock to the desired position.
3. Push the tailstock lock lever forward (toward
the spindle) to lock the tailstock against the
bedway.
Optional: To precisely secure the tailstock, mount
a
1
⁄2" drive torque wrench in the square drive
shown in Figure 38, then tighten the tailstock to
40 lbs/ft of torque. The center point will be drawn
down as much as 0.006". Do not exceed the max
torque or damage to ways and tailstock will occur.
Quill Handwheel
Quill Lock
Lever
Tailstock Lock
Lever
Figure 39. Types of tapered arbors and tooling.
Screw
End
Solid
End
Open
End
Solid
End
Tang
