Grizzly G0750G User Manual

Model G0750G (Mfg. Since 11/12)
-45-
Tools Needed Qty
Hex Wrench 5mm .............................................. 1
Open-End Wrench/Socket 27mm ...................... 1
Steel Shims ....................................... As Needed
Cutting Tool ....................................................... 1
Fine Ruler .......................................................... 1
Tailstock Center ................................................. 1
To align the cutting tool with the tailstock
center:
1. Mount the cutting tool and secure the post so
the tool faces the tailstock.
2. Install a center in the tailstock, and position
the tip near the cutting tool.
3. Lock the tailstock and quill in place.
4. Adjust the height of the cutting tool tip to meet
the center tip, as shown in Figure 60.
Aligning Cutting Tool with Spindle
Centerline
For most operations, the cutting tool tip should be
aligned vertically with the spindle centerline, as
illustrated in Figure 59.
There are a number of ways to check and align
the cutting tool to the spindle centerline. If nec-
essary, you can raise the cutting tool by placing
steel shims underneath it. The shims should be
as long and as wide as the cutting tool to properly
support it.
Below are two common methods:
• Move the tailstock center over the cross slide
and use a fine ruler to measure the distance
from the surface of the cross slide to the tip
of the center. Adjust the cutting tool height so
it is the same distance above the cross slide
as the tailstock center.
• Align the tip of the cutting tool with a tailstock
center, as described in the following pro-
cedure. For this to work, the tailstock must
be aligned to the spindle centerline (refer to
Aligning Tailstock To Spindle Centerline
on Page 37 for detailed instructions).
Cutting
Tool
Spindle
Center
Line

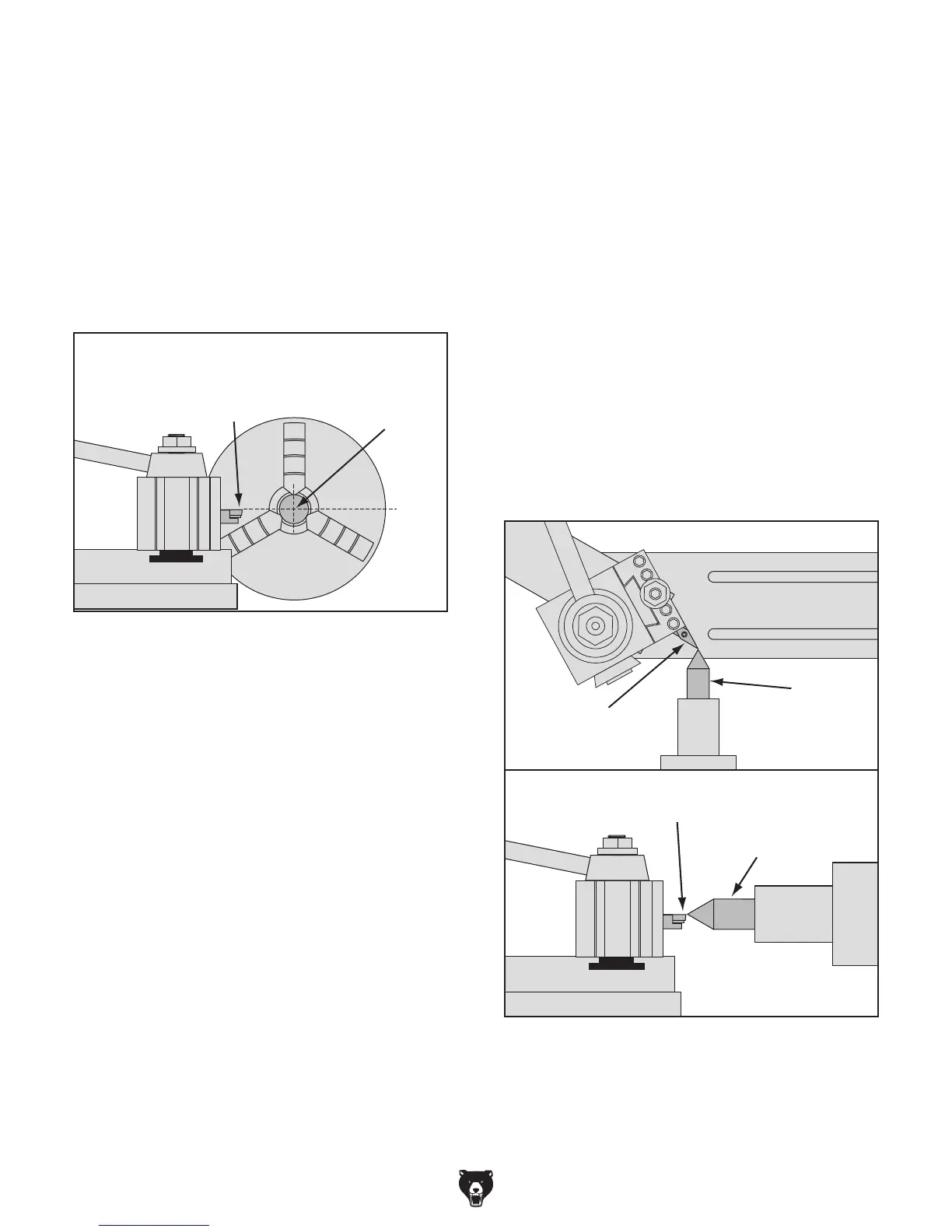

Figure 59. Cutting tool aligned with spindle
centerline (viewed from tailstock).
Tailstock
Center
(Side View)
Cutting
Tool
Figure 60. Cutting tool aligned to the tailstock
center.
Cutting
Tool
Tailstock
Center
(Top View)
2. Secure the tool with at least two set screws.
3. Adjust the cutting tool height to the spindle
centerline, as instructed in the next subsec-
tion.
