Grizzly G0750G User Manual

-96-
Model G0750G (Mfg. Since 11/12)

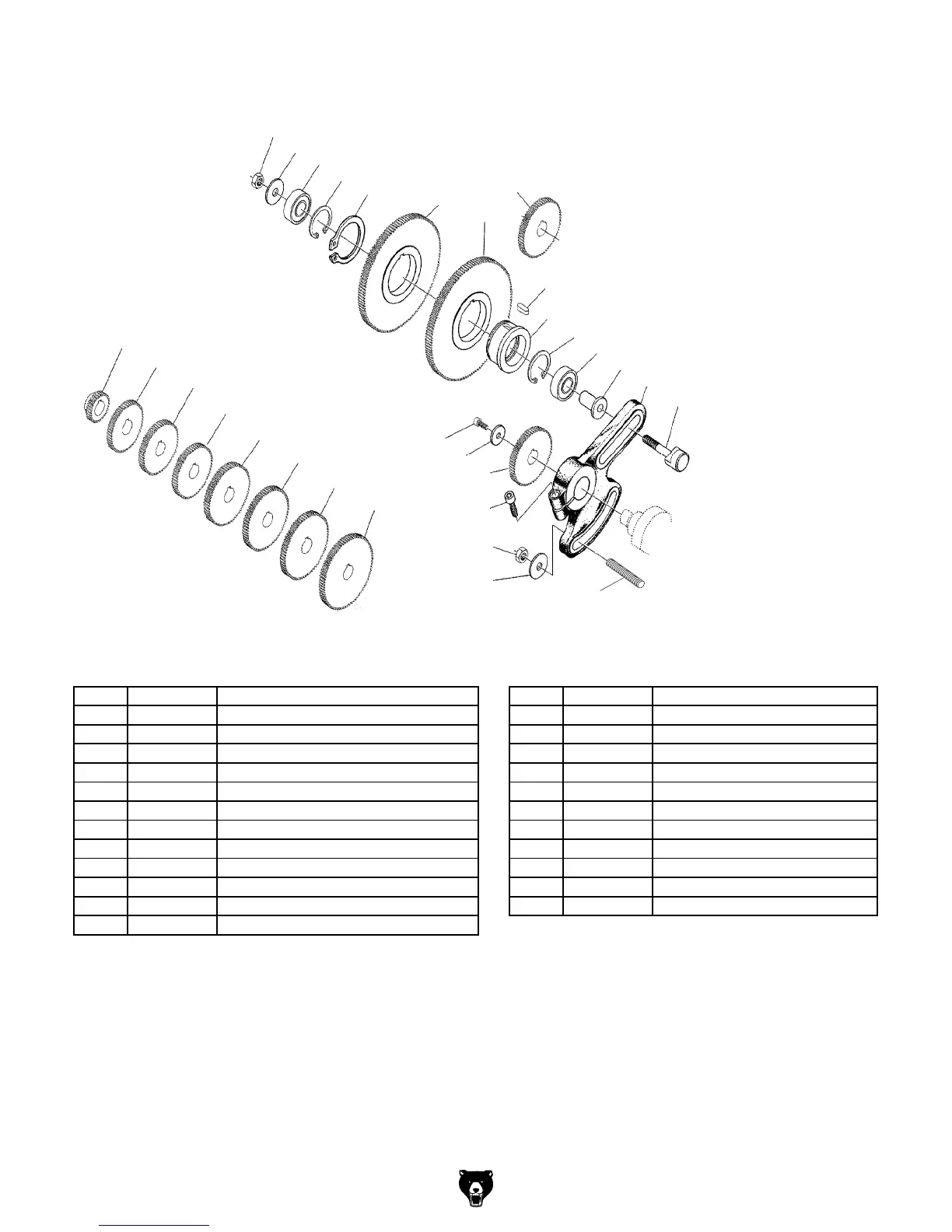

End Gears
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 PN02M HEX NUT M10-1.5 414 PCAP28M CAP SCREW M6-1 X 15
402 PWF10M FENDER WASHER 10MM 415 PWF06M FENDER WASHER 6MM
403 P6203ZZ BALL BEARING 6203ZZ 416 PCAP13M CAP SCREW M8-1.25 X 30
404 PR23M INT RETAINING RING 40MM 417 P0750G0417 STUD-FT M10-1.5 X 70
405 PR78M EXT RETAINING RING 55MM 418 P0750G0418 GEAR 78T
406 P0750G0406 GEAR 120T 419 P0750G0419 GEAR 69T
407 P0750G0407 GEAR 127T 420 P0750G0420 GEAR 66T
408 P0750G0408 GEAR 60T 421 P0750G0421 GEAR 63T
409 PK147M KEY 6 X 6 X 18 422 P0750G0422 GEAR 57T
410 P0750G0410 BEARING HOUSING 423 P0750G0423 GEAR 56T
411 P0750G0411 ARM SUPPORT BUSHING 424 P0750G0424 GEAR 54T
412 P0750G0412 PIVOT ARM 425 P0750G0425 GEAR 30T
413 P0750G0413 GEAR MOUNTING BOLT M10-1.5 X 45
401
402
401
402
403
403
404
404
405
406
407
408
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
