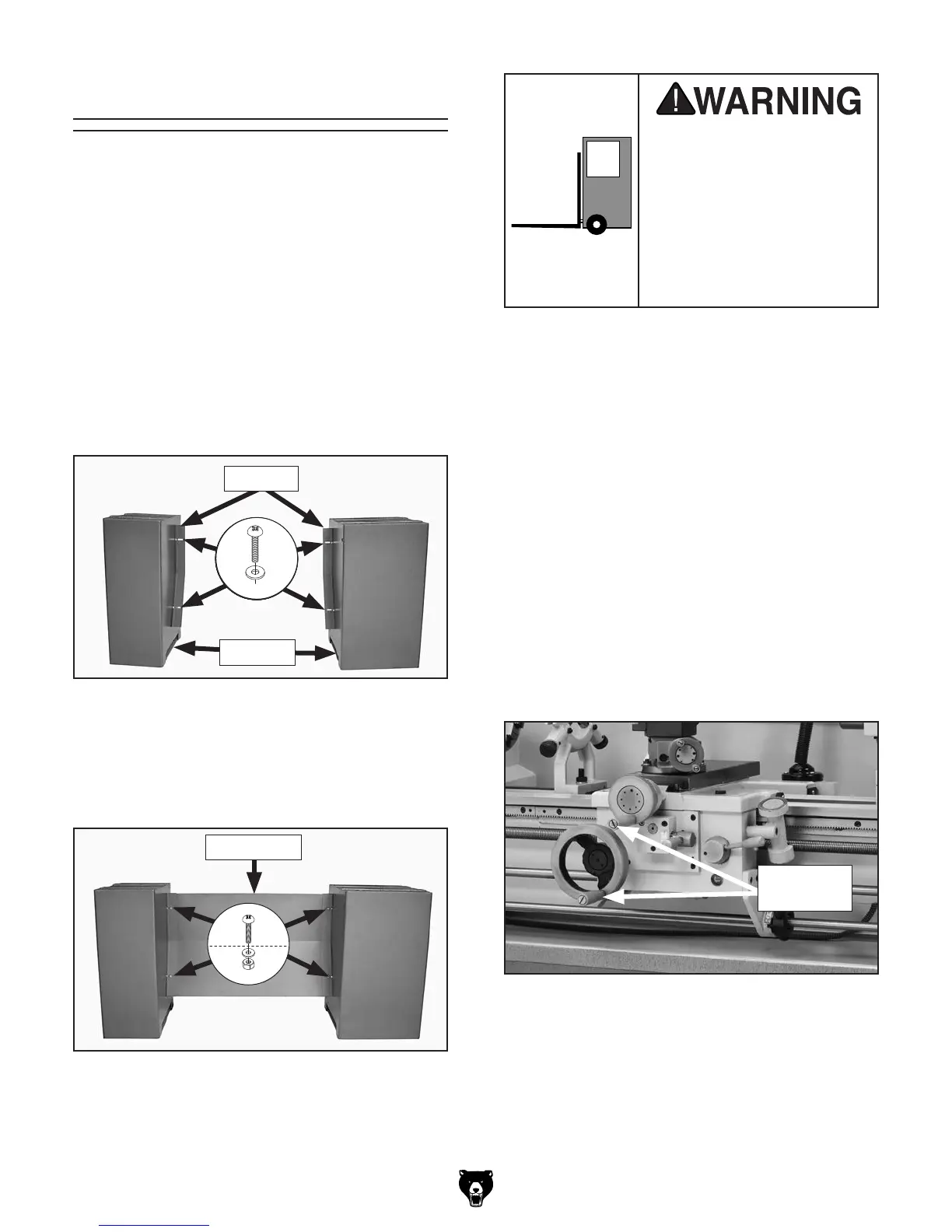

-20-
Model G0750G (Mfg. Since 11/12)
Assembly
NOTICE: During the following steps, DO NOT
attempt to lift or move this lathe without using the
proper lifting equipment (such as forklift or crane)
or the necessary assistance from other people.
Each piece of lifting equipment must be rated for
at least 2000 lbs. to support dynamic loads that
may be applied while lifting.
4. Remove the shipping crate, then remove the
small components from the shipping pallet.
5. Move the lathe to its prepared location while
it is still attached to the shipping pallet.
6. Unbolt the lathe from the shipping pallet.
7. Thread the handles into the handwheels, as
shown in Figure 16.
This machine and its parts
are heavy! Serious personal
injury may occur if safe
moving methods are not
used during the following
steps. To reduce the risk of
a lifting or dropping injury,
ask others for help, and use
powered lifting equipment.
To assemble the lathe:
1. Position the left and right cabinets approxi-
mately 34" apart in the prepared location.
2. Secure the front panel brackets to the cabi-
nets with four M6-1 x 10 Phillips head screws
and 6mm flat washers (see Figure 14).
Figure 14. Brackets installed (rear view).
x 4
Brackets
Cabinets
3. Install the front panel onto the panel brackets
with four M6-1 x 10 Phillips head screws,
6mm flat washers, and M6-1 hex nuts (see
Figure 15).
Figure 15. Front panel installed.
Front Panel
Assembling the Model G0750G consists of build-
ing the cabinet stand assembly, installing the
handwheels, placing and securing the lathe on
the stand with power lifting equipment, then
mounting the stand to the floor (optional).
Figure 16. Handwheel handles installed.
Handwheel
Handles
To Next Page
