The follow rest mounts to the saddle with two

cap screws (see Figure 55). It is used on long,

slender parts to prevent workpiece deflection from

the pressure of the cutting tool during operation.

Adjust the follow rest fingers in the same manner

as the those on the steady rest.

Note: To reduce the effects of friction, lubricate

the fingers with way oil during operation.

The carriage, cross slide, and compound rest

have locks that can be tightened to provide addi-

tional rigidity during operation, especially during

heavy cuts.

See Figures 56 to identify the locations of the

locks for each device.

Tools Needed Qty

Hex Wrench 3mm .............................................. 1

Hex Wrench 6mm .............................................. 1

Follow Rest Carriage & Slide

Locks

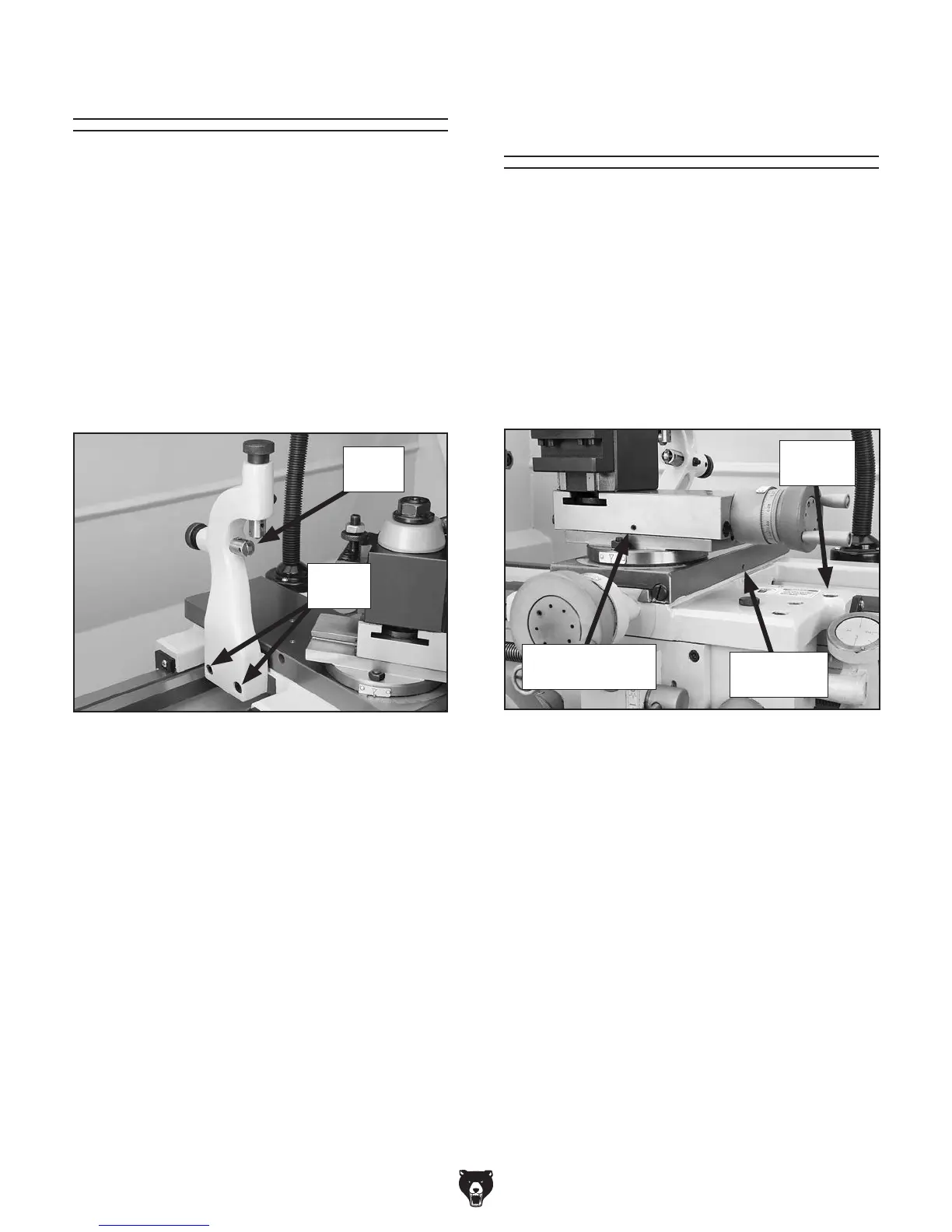

Figure 55. Follow rest attachment.

Cap

Screws

Finger

Rollers

Tools Needed Qty

Hex Wrench 8mm .............................................. 1

Open-End Wrench 10mm .................................. 1

Figure 56. Location of compound rest lock.

Carriage

Lock

Cross Slide

Lock

Compound Rest

Lock
