Grizzly G0750G User Manual

Model G0750G (Mfg. Since 11/12)
-103-

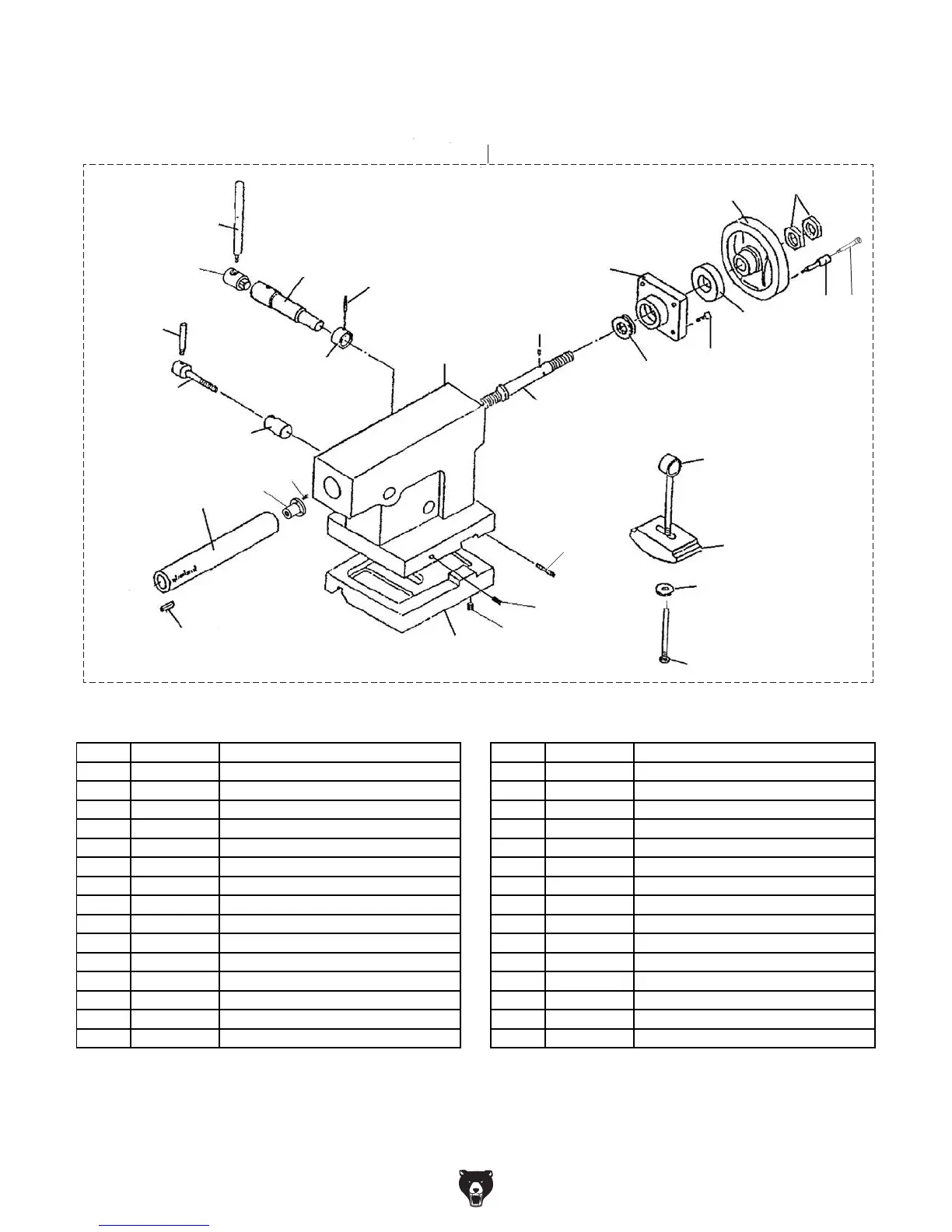

Tailstock Parts List
801
802
803
804
805
806
807
808
809
810
811
812
813
814
833
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
831
832
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P4003G0701 TAILSTOCK ASSEMBLY 817 P4003G0717 LOCK SCREW M8-1.25 X 25
802 PK136M KEY 8 X 8 X 30 818 P4003G0718 LOCK SHAFT
803 P4003G0703 TAILSTOCK QUILL 819 P4003G0719 HANDLE M12-1.75
804 P4003G0704 TAILSTOCK BODY 820 P4003G0720 SWING BOLT M12-1.75
805 P4003G0705 CLAMPING BASE 821 PRP05M ROLL PIN 5 X 30
806 PSS39M SET SCREW M10-1.5 X 50 822 P4003G0722 COLLAR
807 P4003G0707 TAILSTOCK LEADSCREW 823 P4003G0723 SHAFT
808 P4003G0708 DOWEL PIN 824 P4003G0724 BASE SHOE BLOCK
809 P8101 THRUST BEARING 8101 825 PW06M FLAT WASHER 12MM
810 P4003G0710 BRACKET 826 P0750G0826 BASE BLOCK BOLT M12-1.75 X 110
811 P4003G0711 GRADUATED DIAL 827 P4003G0727 TAILSTOCK LEADSCREW NUT
812 PCAP02M CAP SCREW M6-1 X 20 828 PCAP17M CAP SCREW M4-.7 X 10
813 P4003G0713 TAILSTOCK HANDWHEEL 829 PSS28M SET SCREW M6-1 X 30
814 P4003G0714 HANDWHEEL HANDLE 831 PSS42M SET SCREW M8-1.25 X 50
815 PN09M HEX NUT M12-1.75 832 P4003G0732 HANDLE BASE
816 P4003G0716 HANDLE M10-1.25 833 P0750G0833 SHOULDER BOLT M8-1.25 X 8
