Grizzly G0776 - Section 3: Setup - Assembly Tasks; DRO Unit and V-Belt Assembly

Model G0776 (Mfd. Since 7/14)
-25-
Assembly
With the exception of the V-belts and DRO unit,
the Model G0776 is shipped fully assembled.
To mount DRO unit:
1. Secure DRO assembly to threaded mount-
ing holes in headstock cover, using (2)
pre-installed M5-.8 x 14 cap screws (see
Figure 19).

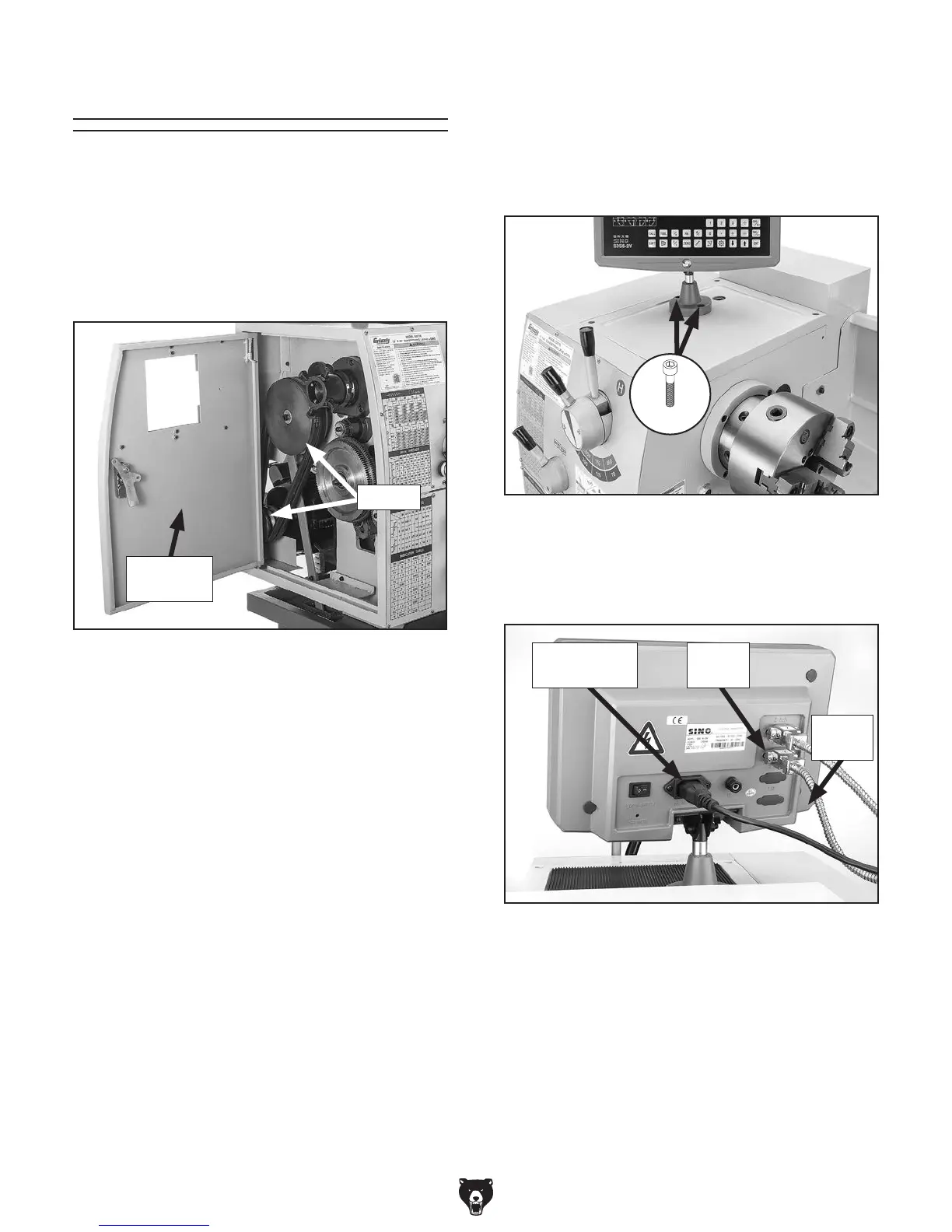

Figure 19. DRO unit mounted to headstock.
x 2
Figure 20. DRO electrical connections.
2. Connect X- and Y-axis cables, and power
cord to back of DRO unit, as shown in
Figure 20.
DRO Power
Cord
X-Axis
Cable
Y-Axis
Cable
To install V-belts:
1. Open end gear cover to expose pulleys (see
Figure 18).
Figure 18. Location of end gear cover and
pulleys.
2. Clean surfaces and grooves of pulleys, mak-
ing sure to remove any oily residue (see
Page 20).
3. Install and tension V-belts (refer to
Tensioning/Replacing V-Belts on Page 83
for detailed instructions).
End Gear
Cover
Pulleys
